The supply plenum is an air distribution box. It’s attached directly to the supply outlet of the HVAC equipment–that is, the outlet that releases chilled or heated air into your home. The air ducts that distribute the air into the individual rooms of your living space all connect to this plenum.
What is the purpose of a plenum?
Plenum boxes are usually situated on either side of the fan or heat exchanger and have the important function of bringing in, distributing, and removing air. They are the air’s first stop after being heated or cooled and its last stop before going back into your AC, heat pump, or furnace.
What is the difference between a plenum and a duct?
is that duct is a pipe, tube or canal which carries air or liquid from one place to another while plenum is (physics) a space that is completely filled with matter.
Why do we use plenum in HVAC?
Plenum boxes are used to distribute heated or cooled air throughout your home’s interior. After producing heated or cooled air, the HVAC system must move that air through the ductwork. Plenum boxes take in this air so that it can be pumped into the ductwork and, therefore, distributed throughout your home’s interior.
Do I need a plenum?
Most residential buildings don’t have plenum airspaces. Plenum areas are more common in commercial buildings. However, if your house does happen to have a plenum airspace or you need to run cables through an air duct, then plenum-rated cable is required.
Should the plenum be insulated?
simple answer…all supply plenums and ductwork, fittings, etc. is required to be insulated, and only after sealing all joints/connections with either approved foil tape or mastic material.
What is a plenum and where would I find one HVAC?
A plenum is an air-distribution box attached directly to the supply outlet of the HVAC equipment that heats or cools the air to make the house comfortable. The ductwork that distributes the heated or cooled air to individual rooms of the house connects to the plenum.
How does a plenum ceiling work?
A plenum ceiling is one that uses the space between the top of the suspended ceiling and the bottom of the floor above to handle air for ventilation. All suspended ceilings are not plenums; some may use HVAC ductwork to move air to returns and diffusers located in the ceiling tiles (a ‘dead’ ceiling).
Do you need a plenum on a furnace?
A: In modern forced-air HVAC systems, you must have a plenum installed.
What is plenum ventilation?
Definition of plenum ventilation
: a system of ventilation that applies the motive force at the inlets, drives the air through the rooms which become plenums, and avoids the incoming of cold drafts.
What is a heat exchanger HVAC?
By its simplest definition, a heat exchanger transfers heat between two or more liquids. Each liquid is separated by a wall to prevent them from mixing. Sometimes, in an HVAC system, the heat exchange will occur between a gas and a liquid. They can be used for both heating and cooling.
What is a damper HVAC?
An HVAC damper (also called a duct damper) is a movable plate, located in the ductwork, that regulates airflow and redirects it to specific areas of the home. Dampers are typically used in zoning or “zone control” systems.
Where is plenum required?
Plenum cable is mandated to be installed in any “air handling” space. For example, most large office buildings use the ceiling to return air to the AC unit. This qualifies this ceiling as a plenum ceiling, and all the cables that go through that ceiling must be plenum rated.
In what circumstances would you need to use a plenum cable?
If you have a large wall or ceiling return air grate; remove and see if there the air is channeled through sheet metal ducting. If there is no sheet metal duct; just the open ceiling or wall space, then you are required by law to use Plenum Rated cable.

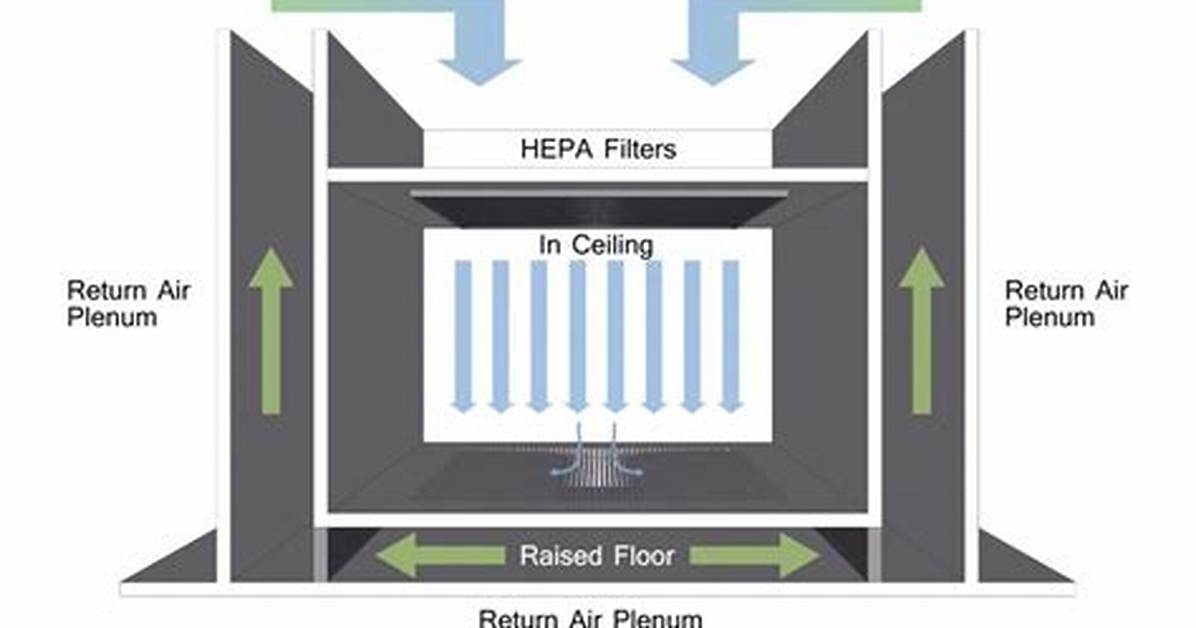

What defines a plenum space?
In building construction, a plenum (pronounced PLEH-nuhm, from Latin meaning full) is a separate space provided for air circulation for heating, ventilation, and air-conditioning (sometimes referred to as HVAC) and typically provided in the space between the structural ceiling and a drop-down ceiling.
