The National Electrical Code currently requires 4-prong dryer outlets in all new home construction. Existing homes may still use 3-prong outlets. The switch to a 4-prong outlet was due to a flaw in the 3-prong outlet design.
Are 4-prong and 4-prong dryer cords the same?
Though both use a 220/240-volt circuit, a range/stove and a dryer cord are very different from each other and should never be interchanged.
What size dryer cord do I need?
Clothes dryers require a relatively thick wire to accommodate their 30 amp circuit. The minimum recommended wire size for clothes dryer circuits is 10 gauge. However, amperage decreases over distance, so appliance manufacturers advise a larger wire gauge for circuits that extend beyond a distance from their source.
Can I use a 4-prong dryer cord?
Since the code change, new dryer outlets must be wired with separate neutral and ground wires. These outlets have four slots and will accept only 4-prong electrical cords. Homeowners owning older dryers with 3-prong cords are sometimes perplexed when they move into a home that has a newer 4-slot outlet.
What is the difference between a 3-prong and 4 prong dryer cord?

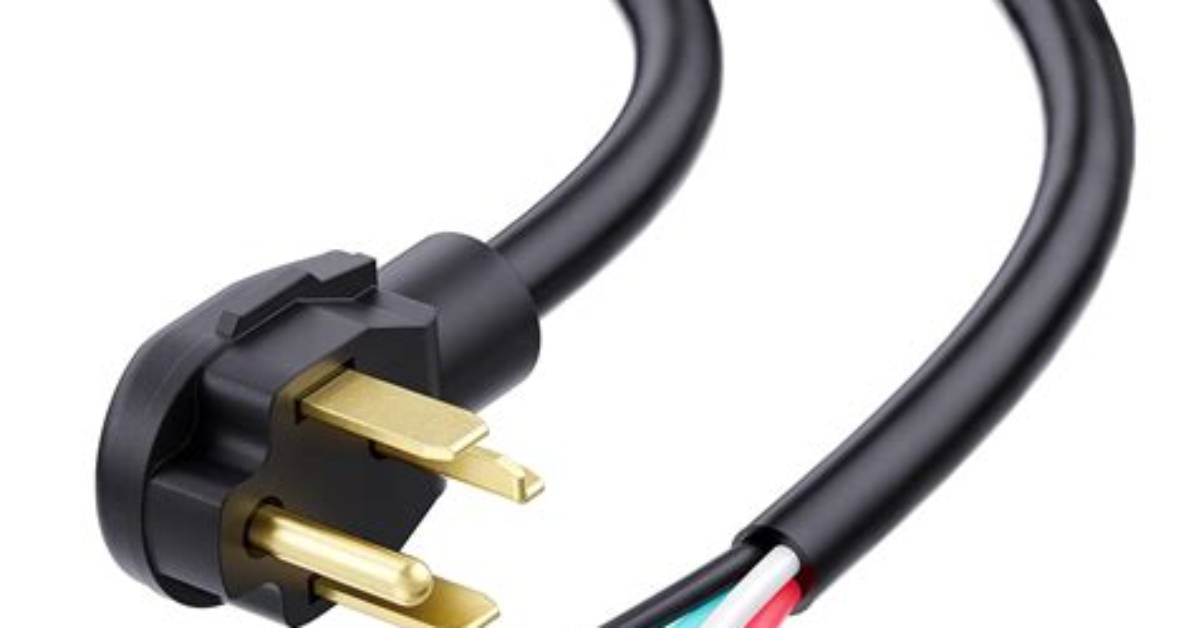

3-prong dryer cords contain two ‘hot’ wires along with a third wire that contained both the ground and neutral wire. If a current happened to make its way onto the ground wire, it could travel up to the dryer. The more recent 4-prong dryer cords feature two hot wires, a neutral wire and a ground wire.
What outlet do dryers use?
Regardless of the type of dryer, both require connection to a 240-volt electrical outlet in order to operate.
Can I use a 3-prong outlet with 4 wires?
It’s not code compliant to use a 4-wire receptacle on a 3-wire cord and place a neutral ground bond inside the receptacle box. If you need to, you can either replace the existing 3-prong receptacle with a new one or use a 3-prong cord kit for the range.
Is 3-prong dryer cord safe?
A newer dryer run on a 3-prong system is an electrical hazard at best, even if nothing goes wrong, and a disaster if there is a short or loose wire.
Is it safe to change a 4 prong dryer to a 3-prong?
Don’t panic if you have the older, three-slot dryer outlet. The Electrical Code allows this to remain in place, and you are allowed to replace the four-prong cord with a three-prong cord to match this outlet.
What wire do I use for a 220 dryer?
Wire Size for Electric Dryers
Once you’ve figured out the correct breaker size for your electric dryer, it’s crucially important to use the right size wire for the dryer circuit. For 240V and 220V electric dryers using a 30-amp circuit breaker, you should use 10/3 American Wire Gauge (AWG) wire.
What size wire should I use for a 220 dryer?
Typically a 220v/30 amp Dryer circuit would utilize 10/3 with ground. According to this voltage drop table, it looks like for 100′ run you would want to up-size the wire to #8 copper, to maintain voltage drop less than 3%.
Are dryer power cords universal?
Most new dryers come with four-prong plugs, but they can be used with three-prong cords to fit older dryer outlets. There are some dryers that don’t have a cord at all, so you have to buy and install your own.
What are the 4 wires on a dryer?
A 4-wire cord consist of a 4 conductor cable with wires colored coded as Black (Hot), Red (Hot), White (Neutral) and Green (Ground). In a 4-wire circuit, the neutral and ground are isolated. The connections on your dryer should have three connection terminals. Left is hot – middle is neutral – and right is hot.
Can I plug my electric dryer into a regular outlet?
The answer is no in all likelihood. Most dryers use a 240 volt circuit, while the common domestic containers are 120 volts. If plugged into this outlet, the dryer does not work.
Do all electric dryers have the same plug?
But there are two different outlet styles and plug-in cord styles used for these 240-volt electric dryers. Some have three slots, designed to accept appliance cords with three prongs, while other outlets have four slots, designed to accept four-prong cords.
How do I know if I need 3-prong or 4-prong?
It’s really a very simple fix. In residences built before 1996, the National Electric Code (NEC) required only a 3-prong outlet for electric dryers and ranges. As safety requirements became more stringent, the NEC began requiring a 4-prong outlet for new installations of circuits that provide power to these appliances.
