The Nyloc nut is an economic locking nut and ideal in applications where vibration or motion could loosen or undo the nut. The nut can also be used to assist sealing the bolt thread against seepage of oil, water, petrol, paraffin and other liquids.
What are nylon nuts used for?
Nylon lock nuts are used across a wide variety of industries, including in appliances, computers, furniture, medical equipment, vehicles, sheet metal, and aircraft. Heavier nylon insert lock nuts are used in buildings, on bridges, and in railroad equipment.
Can nylon lock nuts be reused?
Nylon insert nuts can be reused a small number of times because the mating threads only deform the nylon instead of cutting into it and permanently altering the shape. All-metal locknuts are less likely to be used more than once since the mating threads wear away this locking feature.
Are Nylock nuts effective?
Nyloc nuts
Nylon lock nuts or stop nuts, as they’re also called, are economic and extremely effective. They have a nylon insert, or collar, which is smaller than the thread diameter. As the nylon insert lock nut is tightened, the collar deforms over the mating diameter, creating friction.
What grade are Nyloc nuts?
Standard grade 8 nylon lock nuts. Sold individually. A nyloc nut, also referred to as a nylon insert lock nut, polymer insert lock nut, or elastic stop nut, is a kind of locknut.
How many times can a Nyloc nut be used?
They provide desirable reusability and can be used assuredly up to fifteen times after an initial fastening.
How do Nylock nuts work?

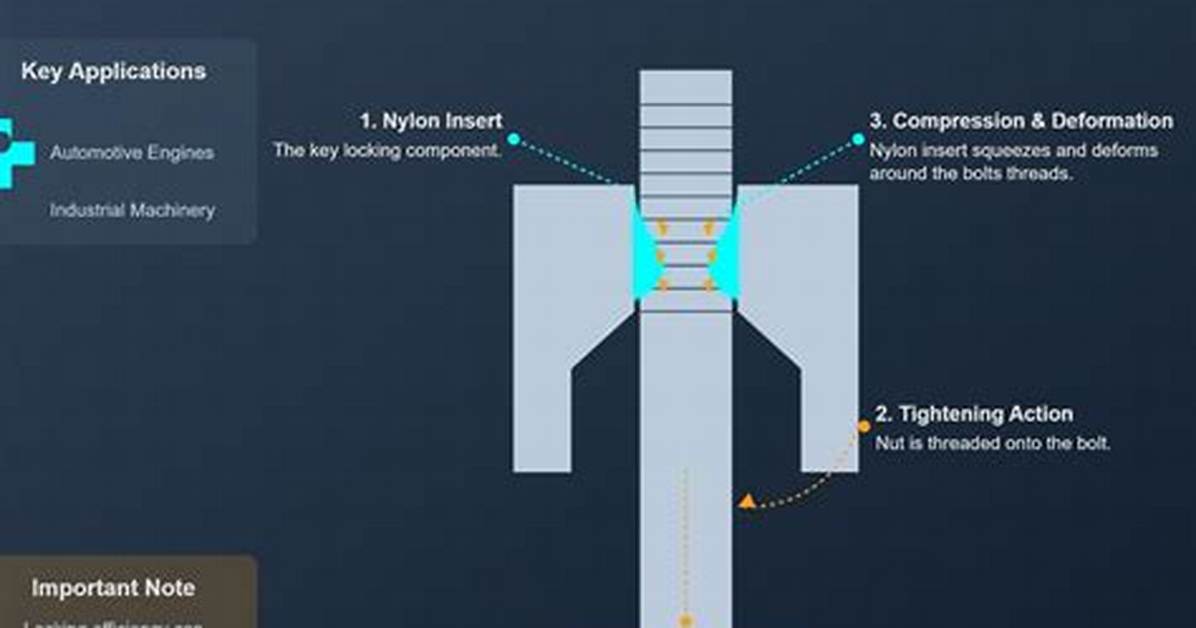

Nyloc nuts feature a nylon collar in the top portion of the nut that locks the nut in place by essentially squeezing the threads of the bolt as the nut is tightened. In scientific terms, the friction that is created by the radial compressive force of the nut turning against the thread prevents it from loosening.
Do Nylock nuts need washers?
I contacted the customer service and they told me that nylon lock nuts (the ones that came with the squat rack) do not need washers. However, when I tried to tighten the nylon lock nuts, there is a bit of slack. It’s not too much but enough to be noticeable.
Can you torque Nylock nuts?
Typically there are the “Nylock” or elastic stop nuts, and the “all-metal” lock nuts. The rule of thumb is to add the prevailing torque to the torque value when applying torque to a Nylock nut. This is because the prevailing torque doesn’t contribute to bolt tightening. It is just friction that needs to be overcome.
Why do nuts have plastic in them?
Lock Nuts with Nylon Inserts
Nylon insert lock nuts—also known as nylon nuts and stop nuts—are a prevailing torque, locking nut that resists loosening caused by vibration and normal use.
Are lock nuts permanent?
Within the locknut category, there are two sub-categories of nuts: prevailing torque locknuts and tension-induced locknuts. Both of these nuts can be removed; they are not permanently locked into place.
What are the five basic locking nut designs?
Different Types of Lock Nuts
Hex jam nuts. Prevailing torque locking nut (Stover lock nut) Two-way lock nut (Center lock nut) Serrated Flange lock nut. Keps K-Lock nut. Castle lock nut (Castellated nut)
What is an elastic nut?
A nyloc nut, also referred to as a nylon-insert lock nut, polymer-insert lock nut, or elastic stop nut, is a kind of locknut with a nylon collar that increases friction on the screw thread.
Which way do nylon nuts go on?
Thread the nylon lock nut onto the bolt or threaded stud and turn the nut clockwise with your hand until it no longer turns. This will be the point that the nylon insert contacts the top thread of the fastener.
What is a Stover nut?
Stover® lock nuts are one-piece hex nuts which derive their prevailing torque characteristics from controlled distortion of their top threads from their normal helical form to a more elliptical shape.
How can you tell if a lock nut is Grade 8?
Grade 8 nuts shall be marked with six circumferential dashes equally spaced 60° apart.
How does a KEPS nut work?
Keps K lock nuts are nuts that have a free spinning serrated washer attached to them. These nuts are made to create tension against the material when installed onto a bolt. It is important to NEVER over torque these nuts. Once you over tighten a lock nut it loses its functionality.
