The 6G pipe weld is one of the most difficult weld certification tests to pass because the pipe is at a 45-degree angle and immovable. Welders performing the 6G certification test must weld in all positions including horizontal, vertical and overhead, and may have to weld both right-handed and left-handed.
What is 5G and 6G welding?

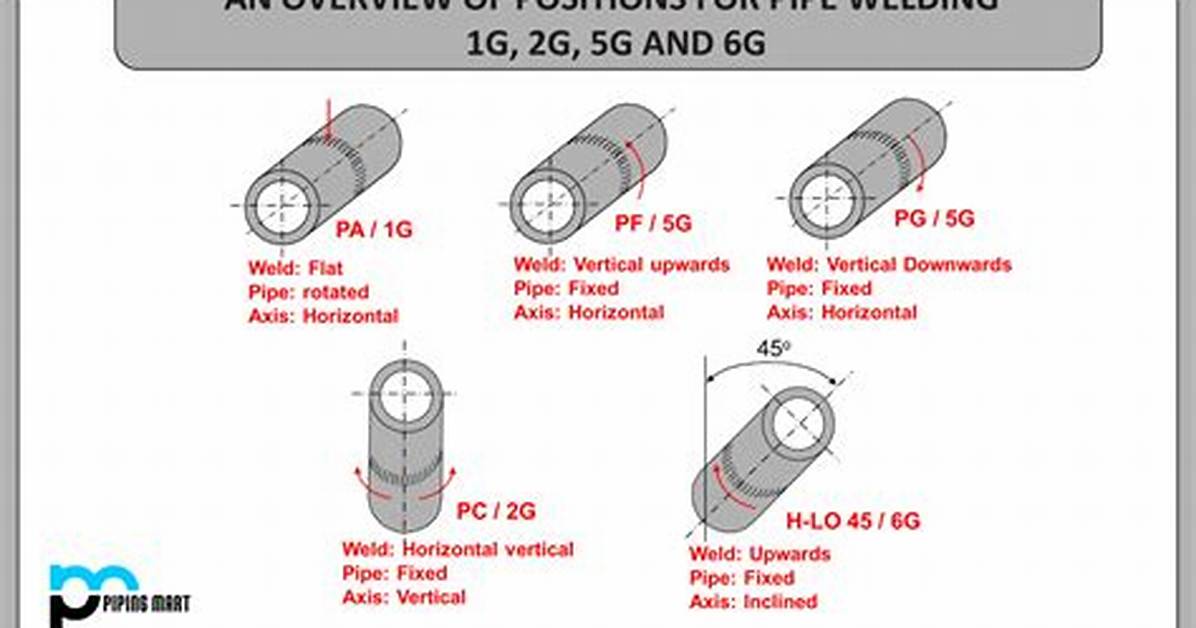

There are mainly four types of pipe welding positions- 1G – Horizontal Rolled Position. 2G – Vertical Position. 5G – Horizontal Fixed Position. 6G – Inclined Position.
What is 4G welding position?
4G Plate or Overhead Position
Ideally, you will be below the workpiece to perform an overhead weld. This, of course, presents a number of challenges. The metal deposited to the joint tends to sag resulting in a higher crown bead. To prevent this, it is advisable to keep the molten puddle small.
What is the 6G welding test?
Welder Qualification Test- 6G
6G welding position is a test position used for the welder performance qualification test (WQT). This welding position is covered in AWS D1. 1 and ASME Section IX -welder performance qualification (WPQ) pipe welding certification.
Why 6G is the most difficult welding position?
Why G6 is the Most Difficult of Welds. This weld is considered the most difficult type of weld to perform because it requires welds that are made in all positions using both hands. It also simplifies testing, removing the need for testing each position used to perform a 6G weld individually.
What is the hardest weld?
TIG welding is the hardest form of welding to learn for a variety of reasons. The process of TIG welding is slow and takes time to get used to as a beginner. A TIG welder requires a foot pedal to feed the electrode and control the variable amperage while maintaining a steady hand at the welding torch.
What is G in welding?
F stands for fillet weld, while G is a groove weld. A fillet weld joins together two pieces of metal that are perpendicular or at an angle. A groove weld is made in a groove between workpieces or between workpiece edges. Using this system, a 2G weld is a groove weld in the horizontal position.
What does the G stand for in 5G welding?
Groove welds, G : 1G = Flat position, 2G = Horizontal position, 3G = Vertical position, 4G = Overhead position, 5G = Pipe shall not be turned or rolled while welding axis of pipe horizontal, and 6G = Inclined axis with pipe stationary.
What is a 5F weld?
A 5F weld joint is a tube welded to a plate where the axis of the tube is horizontal and the plate is vertical. A 5F weld joint is a bit more challenging than a 2F. and the thing that makes it difficult is mainly body positioning.
What does 6G welding mean?
6G Position
The pipe is in a fixed position, so the welder must move around the pipe to perform the welding. This is an advanced welding position that requires a great deal of experience and technical expertise.
What position is 3G in welding?
Welding in a 3G position means moving the torch vertically, up and down across a surface. This is in contrast with 1G (flat surface welding), 2G (horizontal welding), and 4G (overhead ceiling welding).
What does 7018 welding rod mean?
The 7018 Welding Rod
The “E” in E7018 electrode indicates a tool used for an arc-welding process. The 70 means it makes welds that are very strong (70,000 psi). The 18 means two things: The “1” means the electrode can be used in any position, and the “18” means low hydrogen and usually DC current.
What is the highest level of welding?
The highest level for them is usually 6G, which means they can weld 360 degrees around a pipe that doesn’t move. Producing this weld to the satisfaction of a certified welding inspector is tough sledding for a beginner. Nevertheless, a 6G certification is considered the gold standard of the welding profession.
What are the four main types of welding certifications?
Here are the main welding certifications you can earn to increase your professional qualifications:
Certified Welder (CW) Certified Welding Inspector certification (CWI) Certified Welding Educator certification (CWE) Certified Resistance Welding Technician certification (CRWT)
How do you weld 6G pipe SMAW?
Pipe welding Process: SMAW 6G Pipe Basic Certification
Bevel the Edges. For this certification, you need to make sure your bevels are at a nice 35-degree angle. Prepare and Put Together the Joint. Before you get started, make sure you know the size of the filler metal you are going to be working with. Weld! Test Weld Run.
What is the degree of tolerance for a 6G pipe?
The G stands for groove, F for fillet. The number 5 comes up when welding a pipe groove when the pipe axis is horizontal (5G), and 6 when the pipe axis is inclined at a 45-degree angle (6G).
What is the easiest position to weld?
Flat position
Also referred to as a “downhand” position, the flat position weld is the easiest and often the first weld that new students learn. The metals to be joined are placed flat, and the welder passes the electric arc over them, moving across the workpiece in a horizontal direction.
What 6G will be?
6G (sixth-generation wireless) is the successor to 5G cellular technology. 6G networks will be able to use higher frequencies than 5G networks and provide substantially higher capacity and much lower latency. One of the goals of the 6G internet is to support one microsecond latency communications.
