The outside diameter is the same as Schedule 40, so it is compatible with all Schedule 40 and Schedule 80 fittings. Used mainly in stormwater and drainage applications, SDR 35 is a medium-strength pipe that falls between Schedule 20 and Schedule 40 PVC pipe.
What does SDR35 mean?
PVC-SDR 35 means polyvinyl chloride sewer material with a standard dimension ratio (pipe diameter/wall thickness equal to 35.
What is PVC SDR35?
SDR35 PVC Sewer Pipe Is A Solid Investment:
Like other PVC pipe systems, SDR35 PVC sewer pipe is resistant to a great many chemicals and environments, making it a great long-term choice for your water utility’s infrastructure investment projects.
What is the difference between Schedule 40 and SDR 35?
SDR will bend with the shifting and settling. Having a higher flex tolerance means less breaks from the soil conditions. Schedule 40 is so rigid that in the event the ground shifts or settles this pipe has no give. It will simply snap or break from the pressure.
Can you drive over sdr35?
The fittings are interchangeable with each other which adds to the versatility of this and SDR 35 pipe. It is recommended to use where any type of vehicular traffic would not cross the area. At that point a transition can be made to SDR 35 to withstand areas where that traffic may cross.
What is schedule 40 wall thickness?
A 4 inches (100 mm) Schedule 40 pipe has an outside diameter of 4.500 inches (114.30 mm), a wall thickness of 0.237 inches (6.02 mm), giving a bore of 4.026 inches (102.26 mm)
How strong is SDR 35 pipe?
SDR 35, from a strength classification requirement for PVC pipe, requires a minimum pipe stiffness of 46 psi at 5% deflection, for SDR 26 – 115 psi, and for SDR 23.5 – 153 psi. The key to requiring a particular SDR for plastic pipe is no different than for other pipe products such as (rigid) concrete pipe.
What is stronger SDR 26 or SDR 35?
SDR 26 and SDR 35 both categorize under the SDR rating system for pipe. At 5% deflection, the SDR 26 pipe can undergo pressurization of 115psi vs the SDR 35 pipe’s rating of 46psi.
What is SDR piping used for?
The Standard Dimension Ratio – SDR – is used to rate pressure pipes.
What is ABS plastic pipe?
ABS (acrylonitrile-butadiene-styrene) is a thermoplastic resin. This plastic material is used to make ABS pipe, which has been used since the 1960s to make drainpipes due to its shock resistance and strength.
What is the ID of SDR 35 pipe?
SDR-35 PVC pipe comes in sizes ranging from 4 to 15 inches. The 4-inch size has an outside diameter of 4.215 inches, while the 6-inch measures 6.275 inches, the 8-inch measures 8.4 inches, the 10-inch measures 10.5 inches, the 12-inch measures 12.5 inches and the 15-inch measures 15.3 inches.

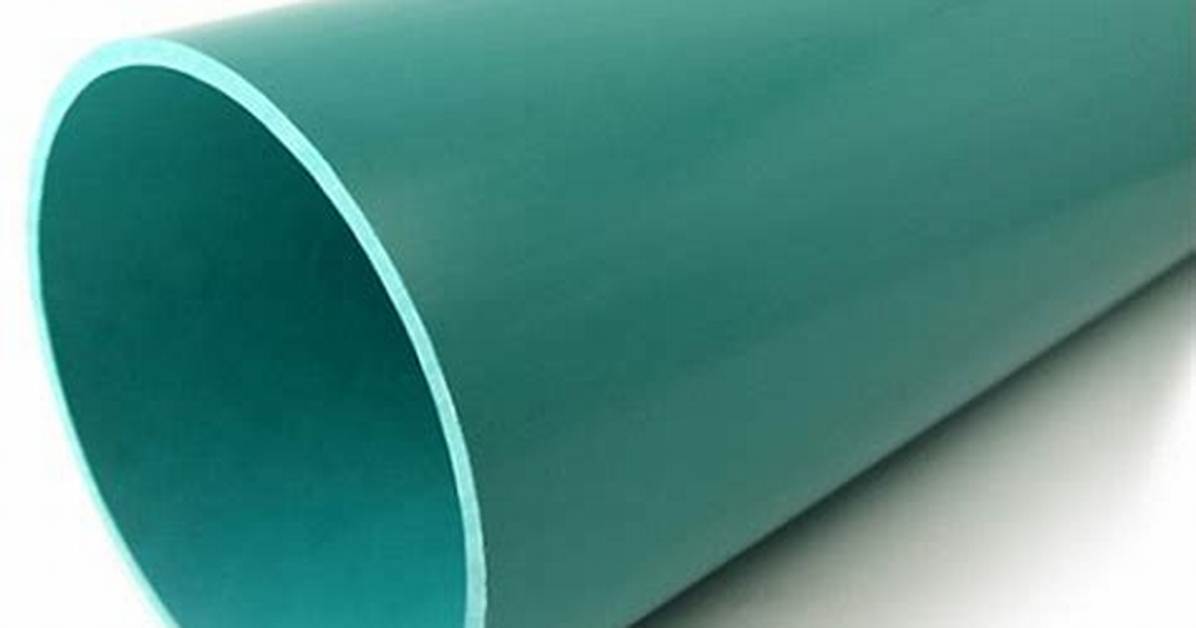

What is the Green drain pipe called?
The green sewer drain pipe is used for the final underground run from a house to the municipal sewer or septic tank. It is manufactured to be compliant with “ASTM D 3034” standard and is often referred to as “3034” pipe. It is PVC, but a lighter weight than white Schedule 40 DWV (Drain-Waste-Vent) pipe.
What SDR is schedule 40?
NOTE: 8″ SDR-26 IS DUAL MARKED FOR SCH-40 PIPE.
Can Schedule 40 PVC be used for sewer?
Schedule 40 is ideal for above-ground vent lines and sewer lines in homes and has a thinner wall thickness than schedules 120 and 80.
What is the difference between Schedule 40 and SDR 26?
SDR twists with the shifting and settling associated with underground installation. Having a higher flex resilience ensures fewer breaks from soil conditions. Whereas, Schedule 40 is inflexible to such an extent that if the ground moves or settles, the pipe incurs damage.
Do I need gravel for solid drain pipe?
In this system, the pipe is solid, and not perforated, so there’s no need to provide gravel for drainage along the length of the drainpipe. One advantage of a smooth-wall pipe is that it will drain water quickly, and if it gets clogged, you can use a drain snake to clean it out.
Can you drive over 4 PVC pipe?
You can drive over sewer or drain PVC pipe as well if a sewer or drain PVC pipe of 4-through 48” diameter is buried 1 foot deeper in the ground.
How deep does PVC have to be buried to drive over?
12″ from the top of the pipe to the underside of the road surface is the minimum depth at which PVC pipe with traffic loading can be buried. Pay close attention to the placement, selection and compaction of flexible pipes at shallow depths below rigid road surfaces.
