PVC pipes typically come in sizes ranging from half an inch to 5 inches in diameter. Pipes with a 1.5-inch diameter commonly connect to sinks, whereas 3-inch pipes commonly connect to toilets.
Is PVC pipe sizes by ID or OD?
PVC Pipe is identified by the Inside Diameter (ID) of the pipe. This measurement is known as ‘Nominal’ which means in-name-only, or a referenced name.
What is the most common size of PVC pipe?
PVC pipe is available in sizes that range from 1/8 inch up to 24 inches in diameter. Some of the most common sizes are ½ inch, 1 ½ inch, 3 inch, 4 inch, 6 inch, 8 inch and 10 inch PVC pipe. PVC piping is shipped in standard 10 foot or 20 foot length sections.
What is the outer diameter of 1/2 PVC pipe?

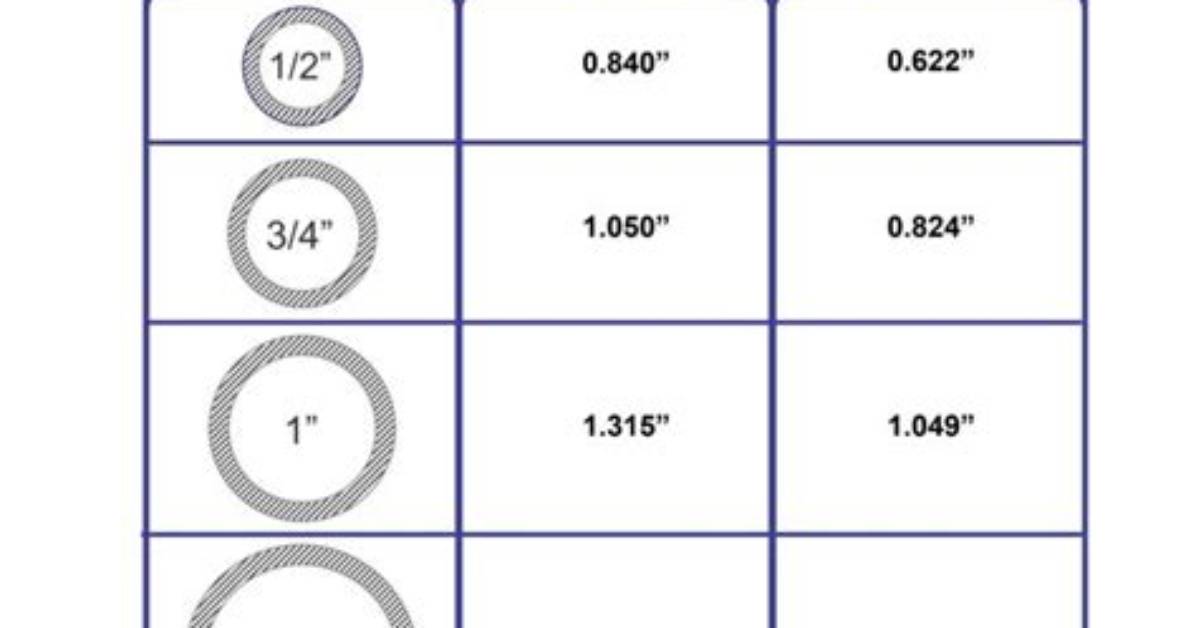

The OD for 1/2″ PVC pipe is 0.840″ and the OD for 3″ PVC pipe is 3.500″. If the nominal size is the ID, then that means 1/2″ PVC pipe walls are .
What is the outside diameter of 1.5 inch PVC pipe?
1.5″ PVC pipe sch 40 has a nominal inside diameter of 1.5″ and an outside diameter of 1-7/8″.
How do I know what size pipe I have?
All you need to do is wrap a string or a flexible tape measure around the outside of the pipe. Now, take this measurement and divide it by pi (pi = 3.1415). This calculation is the plumbing pipe’s Outside Diameter that you can use to look up the Nominal Size.
Is PVC diameter inside or outside?
PVC Pipe sizes are so named by the measurement of the inside diameter (also called the bore) of the PVC pipe, and not the outside diameter. If you measure the outside diameter it will give you a larger reading than the actual PVC Pipe Size.
What is the outside diameter?
Definition of OUTSIDE DIAMETER:
The outside or outer diameter (OD) is one of the key specifications of rolls of labels; this measurement refers to the diameter of the entire roll of labels in its finished form.
What is the inside diameter of 2 inch pipe?
Nominal Pipe Size (NPS) is a North American set of standard sizes for pipe. The term nominal refers to pipe in non-specific terms and identifies the inside diameter with a non-dimensional number. For example, a 2-inch nominal steel pipe consists of a family of steel pipe with a 2.375″ diameter.
