Attach the white wire from the light fixture, which is now the hot wire, to the nut at the top right of the switch. Attach the red wire from the light fixture to the nut at the top left of the switch. Connect the bare copper wire to the green nut at the bottom left of the switch.

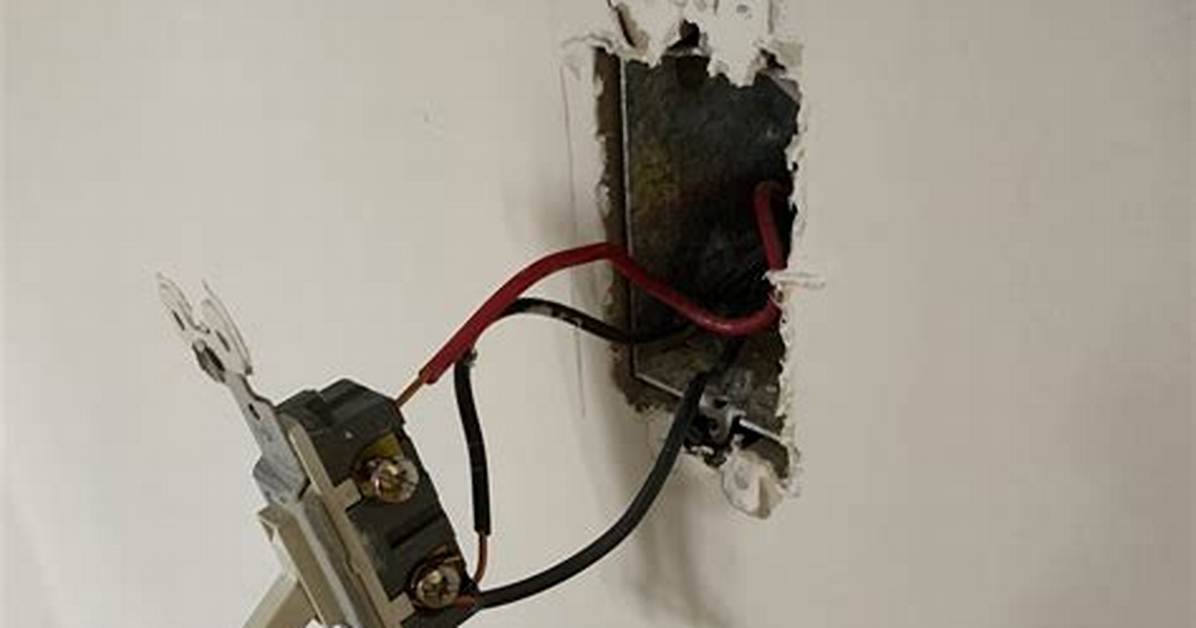

What do I do with the red wire when installing a light switch?
The exact purpose of a red wire for a light fixture can vary. Except in rare cases, it is a hot wire or a switched hot wire. Check the wire with a non-contact voltage tester with the power and switch turned on. If the tester indicates the wire is hot, turn the switch off and retest.
What happens if you switch red and black wires?
The electrical current tells the speaker when and how far to push the drivers out and in. This affects what frequencies are reproduced and the volume. If you switch the red and black speaker wires, all that happens is that the drivers push out instead of pulling in (and vice versa).
What do you connect the red wire to?
Normally you’ll see a red wire in places you would expect a ceiling fan. But in places like a bathroom or a wall light, if you see a red wire, it’s a good bet that the red wire is the wire that’s connected to the light switch.
Does red wire go to black?
These wires are typically used for switch wiring as well as the interconnection between smoke detectors hard-wired into the power system. You can link two red wires together, or you can link a red wire to a black wire. Since red wires conduct current, they are considered hot.
What is the red wire in a wall switch?
Red: Hot Wire
You will usually only see a red wire when an outlet is a 240-volt outlet or when a wall switch controls the outlet. In this case, when the switch is “on,” the red wire will supply power to the outlet instead of the black wire. Like black electrical wires, red wires are also hot or live wires.
What does a red light switch mean?
Light switches with those little red lights usually have the lights to remind you that you’ve turned on a light somewhere where you can’t see it from the switch.
Does red wire go to white or black?
Attach the black wire to the outlet you want to always be on (usually the top one) and the red wire to the switched outlet. Connect the white wire to either of the chrome screws (remember, they are still joined) and the ground wire to the green ground screw.
Where does red wire go on three way switch?
The black hot wire connects to the far right switch’s common terminal. Red and blue wires link traveler terminals of both switches. The red wire, which is connected to the first switch’s common terminal, leads back to the fixture.
Is red wire live or neutral?
In situations where both wiring systems are present, remember that: The earth wire will be green and yellow (or sometimes bare in old systems). The live wire is brown in new systems and red in old systems. The neutral wire is blue in new systems and black in old systems.
Which wire is positive red or black?
In the world of DC electronics, the accepted wiring convention is that the red wire carries the positive voltage, and the black is circuit ground. Usually the red is marked as + (plus) and the black is marked as – (minus). Notice that in both AC electricity and DC electronics, there is a black wire.
Does red wire go to Brown?
Answered by Dave, Electrical Safety Expert
The live Red becomes Brown. The Neutral Black becomes Blue. The Earth wires continue to be Green and yellow.
