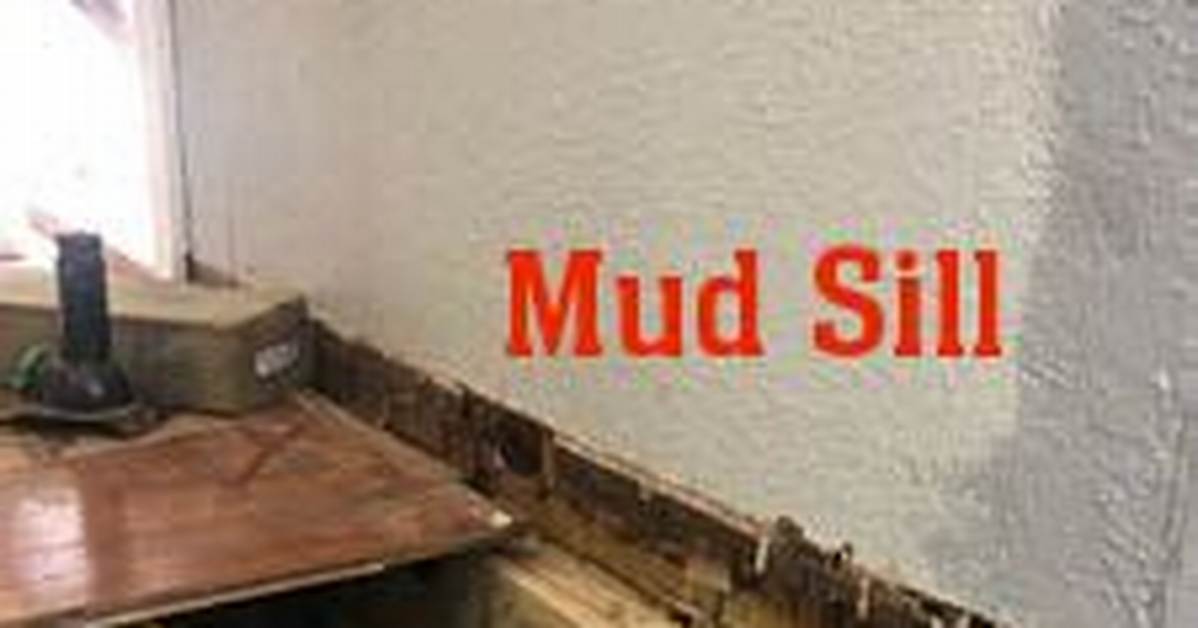

The mudsill, also called a “sill plate”, is the first layer of wood to be installed on top of the foundation wall. It serves as the anchor point for the home’s framing. Because the floor and walls will be built on top of it, the mudsill needs to be installed straight, level, flat, and square.
What size is a mud sill?
In New Hampshire and Massachusetts, most concrete foundation walls are about 8″ or 10″ thick and mudsill used on the wall is usually in 2×6 size. The weight load on the wall is then only on 1/2 to 2/3 side the wall.
What is the purpose of the Mudsill?
Answer: The purpose of a mudsill is to provide a suitable foundation that supports the load of the scaffold, materials, and workers without collapse or shifting of one component or the entire scaffold. Mudsills distribute the scaffold load over the ground area.
What is mud seal?
Definition of mudsill
1 : a supporting sill (as of a building or bridge) resting directly on a base and especially the earth.
What are mud sills made of?
While the mudsill is usually made of treated timber, there are also examples of ones that are constructed of metal. Often, these metal versions are constructed with holes predrilled into the body of the sill, making it possible to bolt it to the foundation with relative ease.
What is the wood on top of foundation called?
On most homes, the sill plate is the first piece of wood in the entire house, and it essentially anchors the house to the foundation. You can see the sill plate from the inside of your house if you look along the top of the masonry walls in the basement or crawlspace.
What is the difference between a sole plate and a sill plate?
A sill plate or sole plate in construction and architecture is the bottom horizontal member of a wall or building to which vertical members are attached. The word “plate” is typically omitted in America and carpenters speak simply of the “sill”. Other names are ground plate, ground sill, groundsel, and midnight sill.
What is nailed to the top of the floor frame?
The subfloor, also known as rough flooring, is nailed to the top of the floor frame. It strengthens the entire floor unit and serves as a base for the finish floor. The walls of the building are laid out, framed, and raised into place on top of the subfloor. Panel products, such as plywood, are used for subflooring.
What goes between the Mudsill and the foundation?
It’s as simple as laying the mudsill alongside the chalkline on top of the foundation, measuring from the chalkline to the center of the bolt, and transferring the measurement to the top of the mudsills. At this point, we add insulation (or sill seal if requested) between the foundation and the mudsill.
Why was the Mudsill theory created?
Mudsill theory and similar rhetoric has been dubbed “the Marxism of the Master-Class” which fought for the rights of the propertied elite against what were perceived as threats from the abolitionists, lower classes and non-whites to gain higher standards of living.
What must be used under the base of a scaffold?
Answer: An adequate foundation is one that, like base plates on mud sills, will prevent the scaffold from settling into the ground.
Should I caulk sill plate?
The seam between the sill plate and the rim joist above is sealed with caulk. The entire sill plate-rim joist area can be further air sealed and insulated with spray foam, but sill plate joints and seams with rim joists should first be caulked.
What is stem wall?
Stem-walls are structures that are used to connect the foundation of a building to its walls. Predominantly constructed concrete footings with masonry walls, they rise above the ground level to provide a raised platform for placing the building slab..
What is Rimboard?
A rim board is a structural element installed around the perimeter of floor framing that closes the ends of joists and performs the tasks of transferring vertical and horizontal loads to structural wall components below.
How do you attach a sill plate to a foundation?
Here’s how to properly install a sill plate on top of a foundation wall. Sink anchor bolts into your foundation every four feet, laying a sill seal on top of the foundation to create a weather barrier. Pre-drill two-by-six sills to accommodate the bolts. Use pressure-treated lumber to resist water and insect damage.
How do you anchor a sill plate to a concrete slab?
How to Attach Sill Plates to Concrete
Position the sill plate in place on the concrete slab or foundation. Drill holes through both the sill plate and into the concrete, using a concrete masonry drill-bit. Insert one wedge anchor bolt set into each drilled hole and hammer it into place with a hammer.
