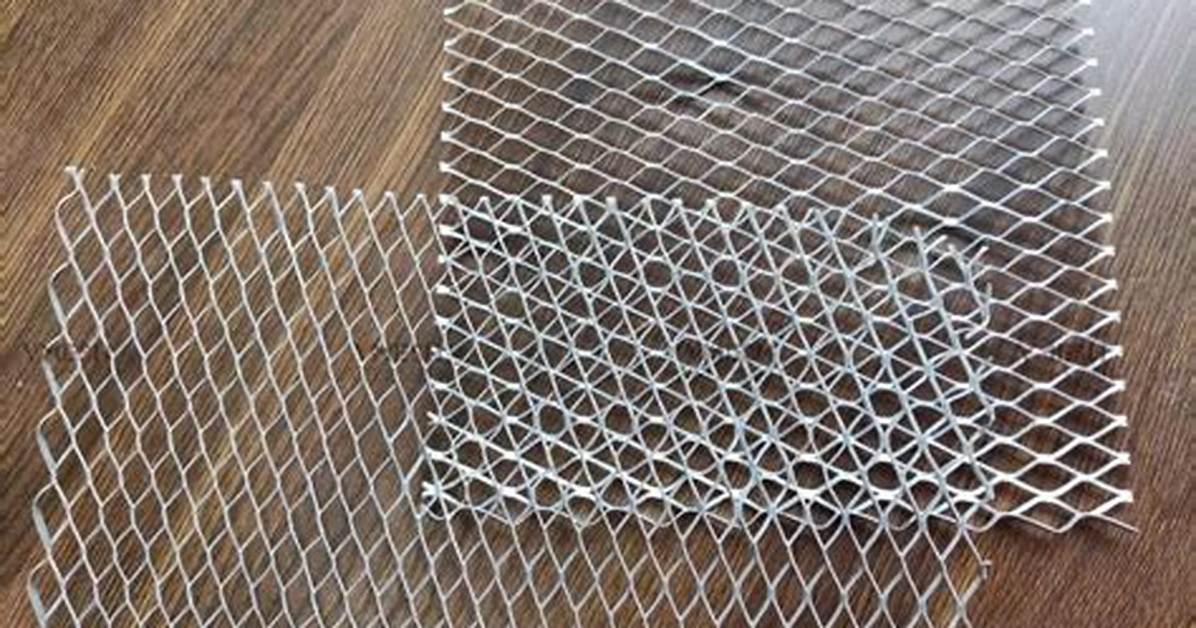

Metal lath is used as a platform to embed and attach the stucco cementitious membrane to the structural members of the building. Without the lath there would be little or no way to apply stucco to open frame or sheathed construction.
Where would you apply a wire lath?
Lath is to be wire tied at 9” on center at edges, ends and at laps between framing members. On plywood sheathing only, lath may be nailed or stapled in lieu of tying at the same center spacing noted above. Corner beads shall be used to protect all external corners with a plumb and true edge.
What size is wire lath?
These are: 1.75, 2.5 and 3.5, (2.5) being one of the most common weights used in the industry. Typical Sizes It Comes In: Expanded metal lath measures 27″ wide by 8′ in length, just like the high rib lath and come in sheets too.
Why is a wire lath used in stucco?
Stucco, plaster and veneer would easily crack under types of stress and deflation in the process of building construction and residential living. Metal lath is used to prevent or decrease wall crackings in either pumped or troweled application.
What is stucco lath?
What Is Stucco Lath, Anyways? Lath is simply the first step in the stucco process. It consists of water resistant paper, (sometimes eps foam) wire and other metal components that make up the essential “framework” for the cement to be adhered to. It attaches to the substrate and is the structure for the following coats.
How do you install metal lath?
Metal lath should be hung horizontally. Joints between panels should be staggered in a standard brick-laying pattern. The seam between the first and second panels on the bottom of the wall should fall in the center of the panel placed immediately above them. Expanded metal lath has a diamond shaped mesh.
Who makes metal lath?
CEMCO is quality, service, support, and innovation. Founded in 1974, CEMCO is recognized as one of the largest manufacturers of steel framing and metal lath systems in the United States. CEMCO has built its reputation on the finest in quality material, using only mill certified hot-dipped galvanized steel.
What is galvanized lath used for?
Galvanized, Expanded Steel Plaster aND Stucco Base
Metal lath is useful in general purpose applications and is the best lath available for ornamental work and for flat or contoured surfaces as well as for use as a reinforcing underlay for spray-applied fireproofing.
How do you cut wire on lath?
Cut Metal Lath and Mesh with a Grinder
Mount a diamond blade in your angle grinder and use it like a saw to cut the mesh. We recommend using a diamond blade that’s labeled as a ferrous-metal-cutting blade, but many tradespeople use a regular masonry diamond blade with good results.
Can mortar be used as stucco?
Mortar (80 lbs.) – Mortar can be used but I would recommend using a stucco base coat instead of mortar because it is a different consistency and has a little bit different composition but you can use it in a pinch.
Is chicken wire the same as stucco wire?
Chicken wire is generally used for fencing small animals or crops and small-scale construction projects that require flexibility but not excessive strength. Stucco wire, on the other hand, is intended for industrial construction and needs to be more robust and big enough to cover entire walls.
What kind of mesh is used for stucco?
SM-4: Hexagonal wire mesh can be used for stucco mesh.
Do you need mesh for stucco?
Two-coat stuccoing is often used when stucco is applied directly to concrete or masonry surfaces without the use of lath or wire mesh. This is because the masonry or concrete provides a very rigid stable base.
What is rib lath?
Rib lath is made from coils of sheet steel, slit and expanded into a herring bone pattern with metal ribs running about every 3 inches on the long direction of the sheet. This product is typically stapled, nailed or screw applied to the substrate. It can also be tie wire attached to cold rolled grillage.
Can I put stucco on cement board?
Once installed, though, the boards require finishing for longevity and attractiveness. One finish you can use on cement boards is stucco. Extensive preparation is necessary, but once completed, you’ll have a beautiful surface, suitable for further finishing by painting or left as-is for a raw plaster look.
How do you attach metal lath to stucco?
Place metal lath starting at the lowest right-hand corner of the wall. Set the bottom, horizontal edge of the metal lath into the stucco stop. Secure the lath to the sheathing with galvanized roofing nails. Ensure that the nails are long enough to penetrate the sheathing and go least 1 inch into the studs.
What does self furring mean?
Said of metal lath or welded wire fabric having some means of spacing it from a wall; when plaster, stucco, or concrete is applied to the fabric, the space makes it possible to key, 8 the applied material to the metal lath or welded wire fabric.
