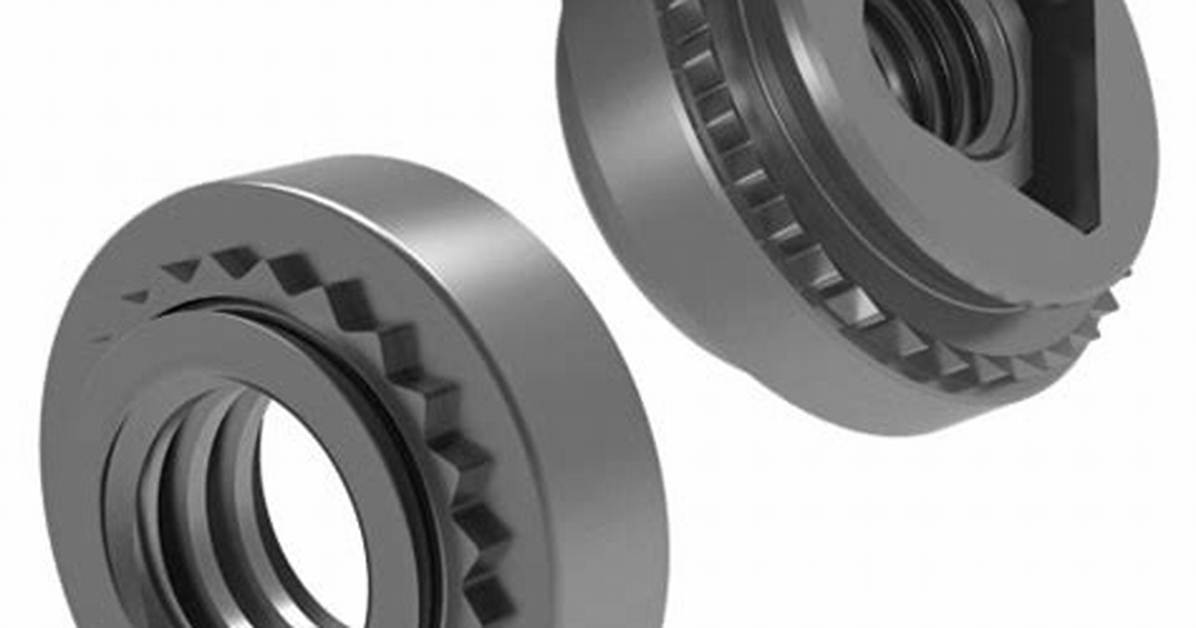

Power entry module. PEM nut or self-clinching nut.
How does a PEM nut work?
HB-4 PennEngineering •
roadly defined, a self-clinching fastener is any device, usually threaded, that when pressed into ductile metal, displaces the host material around the mounting hole, causing it to cold flow into a specially designed annular recess in the shank or pilot of the fastener.
Why are PEM nuts used?
PEM® brand fasteners utilize self-clinching, broaching, flaring, surface mount, or weld technology to provide strong, reusable, and permanent threads and mounting points in thin sheet metal, P.C. board materials, and other ductile or non-ductile thin material.
How strong are PEM nuts?
PEM SH nuts are engineered to install into high-strength steel sheets at 975MPa maximum ultimate tensile and as hard as HRC 30 or less on the Rockwell “C” scale.
How do you remove PEM nuts?
Re: Boss Nut / PEM Nut Removal (The Easy Way) (Level 1 – Novice Consumer) A vicegrips pliers works well to remove pems too. Just rotate it back and forth and pull it out. They come out fairly easily.
What is PEM machine?
Precise Electrochemical Machining (PEM) is a powerful, non-contact metal shaping process that pairs a PEM Machine with an electrolyte processing unit, power generator, and operator control station.
How are PEM studs installed?
PEM® self-clinching studs are easily installed by placing them in properly sized holes in sheets and squeezing into place with any standard press: Install permanently in aluminum, steel or stainless steel in sheets as thin as . 020” / 0.51 mm. High torque-out and pushout resistances.
What is a PEM in manufacturing?
PEM brand fasteners are hardware components that provide threaded attachment points for thin parts like sheet metal brackets and printed circuit boards (PCBs). Holes in thin parts are not ideal to be tapped because there would not be enough threads to ensure a secure joint.
What are clinch fasteners?
Broadly defined, a self-clinching fastener (also known as clinch or captive fastener) is any device, usually threaded, that, when pressed into ductile metal, displaces the host material around the mounting hole, causing it to cold flow into a specially designed annular recess in the shank or pilot of the fastener.
How do self-clinching fasteners work?
Self-Clinching fasteners work by utilizing a special clinch feature. When the part is pressed into the hole, the parent material is displaced and cold-flows into the clinch feature, effectively locking the fastener into the panel, providing excellent torque-out and push-out performance.
What is a clinch stud?
Clinch studs are a fastener used to secure a head to the mating material and assure high torque resistance. The main advantage of a clinch stud is the elimination of a welding operation.
What is a press nut?
Press fit nuts are round and internally threaded. Their outer diameter is knurled. The knurled clinching ring that surrounds the shank provides a better grip to the fastener. These one piece fasteners are designed to press fit into holes. An arbor press machine is used to press these fasteners into a plain hole.
How are clinch nuts installed?
Clinch nut installation is achieved when the self clinching nut is pressed into ductile metal, which displaces the host material around the mounting hole, causing it to cold flow into a specially designed annular recess in the shank pilot of the fastener.
What does torque out mean?
Torque-Out – The amount of torque necessary to spin the fastener out of the sheet. The torsional holding power of a self-clinching fastener in a sheet. Torque-Out testing is conducted by applying pure torsion (no axial load) to the self-clinching fastener.
