The Concentric Vent allows both the intake for combustion air and the exhaust vent to pass through a standard roof or sidewall. This is an alternative to the standard two pipe intake/vent shown in the basic furnace installation instructions.
Is a Concentric Vent a direct vent?
Concentric Vent
This means simply that the intake air and exhaust gas move through separate chambers of the same assembly. For water heating units, such as direct vent or concentric vent tankless, concentric venting may be used for the entire vent run, from the water heater to outside the home.
How is a Concentric Vent used in a high efficiency furnace?

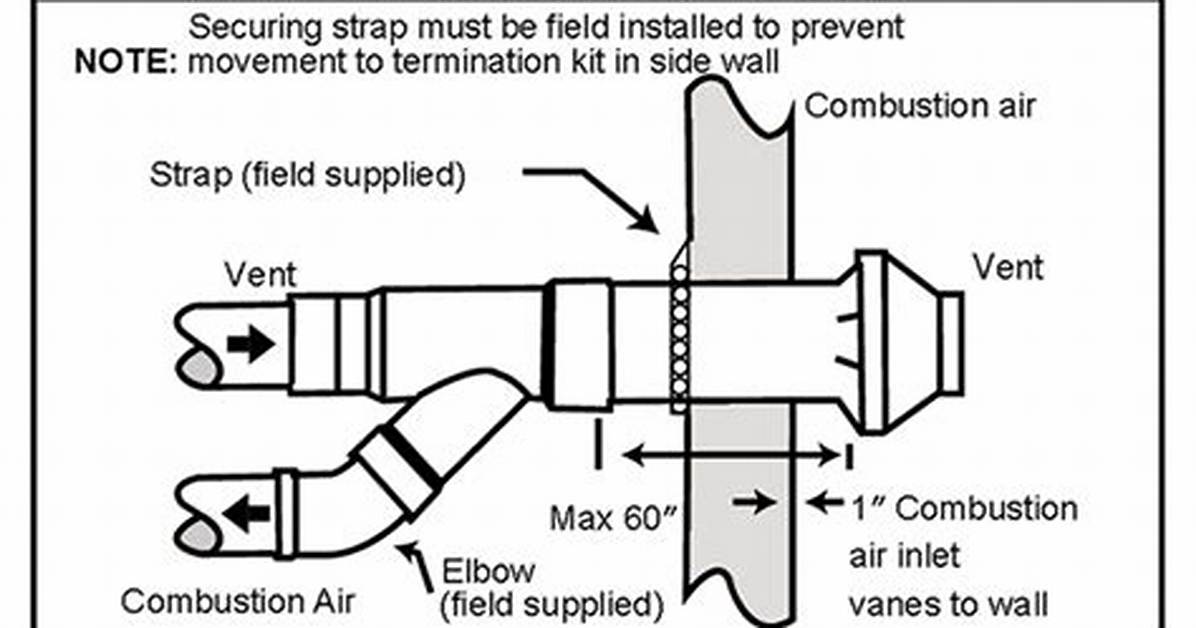

One such fitting that is often used is a concentric fitting (see Figure 1). It allows the vent pipe and the air intake to exit the building through one penetration. The fitting is actually a double-wall pipe with the flue gases in the middle and the air intake around the outside.
Does a Concentric Vent need a cap?
Unlike standard vent termination hubs, concentric vent terminations have the appearance of a small pipe extending out from a cone or saucer. Unfortunately the exhaust pipe extending out from the cone is prone to entry by birds and insects, which is why this opening must be protected by a suitable cap with screen.
Can you cut down a Concentric Vent?
Note: When shortening the length of the concentric vent, the inner pipe is longer than the outer pipe. Make sure you cut the same amount from each pipe. Do not make them equal in length. ** Dimension A will change accordingly as dimension D is lengthened or shortened.
What is cat3 venting?
Category III refers to positive vent pressure which is created by exhaust blowers in unit heaters. These vent systems must be constructed of AL29-4C® stainless steel, contain gaskets for sealing, and have a built in mechanical locking band among other requirements.
Can you extend a concentric vent kit?
You can extend the concentric vent kit up to 60″ by replacing the piping between the concentric Y fitting and the rain cap. You must use SDR-26 PVC pipe. It’s 33.5″ length is so that it can extend through a single roof opening, then you can connect 2″ or 3″ pvc from your furnace to it.
Can I use PVC to vent gas water heater?
A standard will be needed for plastic flue pipes that should include a temperature gauge and a high limit probe. Then PVC, CPVC and polypropylene flue gas piping can be safely used on high efficiency boilers and water heaters.
Can you paint Concentric Vent?
You can paint a concentric black if needed. But it is wise to have both terminations in same area, as stated before, due to consistent pressures.
Can high efficiency furnaces be vented vertically?
This system requires PVC piping for the air intake and the exhaust vents to be routed through the sidewall. Vertical venting that pre-exists is unsuitable for the exhaust this system does create.
Can you vent a high efficiency furnace through the roof?
If your furnace has an AFUE rating below 90 percent, it will most likely have a flue pipe that goes up through your roof. That’s because the combustion byproducts are in a gaseous form, so the gases can float up through the flue pipe and out of your roof.
What is a concentric cap?
CVC series concentric vent screen kits are professional grade vent protection products designed to guard a concentric vent’s exhaust termination from bees, wasps, birds and many other outdoor threats. Each cap is manufactured in the United States with high quality materials and to precision tolerances. Size.
Should furnace vent have a screen?
If the vent pipes are not protected by screens, you take a big risk for furnace problems due to pipe obstruction or infestations from pests. A simple screen can prevent pest problems, but the wrong type of screen can create other problems.
