NEMA 6-50 (50A plug). This is common for welders or plasma cutters. It’s installed onto a dedicated 50A circuit to match the rating of the plug.
What is a NEMA 6 30 plug?
The NEMA 6-30P is a 30 Amp 250-Volt, 3-prong, commercial HVAC plug. The NEMA 6-15/20R is a 15/20 Amp, T-blade, 250-Volt, female connector.
What is a 6 20 plug used for?
The 6-20P has a horizontal and vertical blade to prevent attachment to lower ampere rated receptacles. However, the 6-20R (receptacle) offers a “T” slot allowing connection of both a 6-20P and a 6-15P. Common applications are commercial ovens and large air condition units.
How many amps is a NEMA 6-50?
The NEMA 6-50 adapter will allow a Tesla to draw up to 32 amps (7.6 kW at 240 volts).
What is a 14-50 plug used for?
NEMA 14-50 Plug
The “50” in the name stands for the 50-amp maximum amperage, which is needed for a 40 amp home charging station for the safety reasons described above. A NEMA 14-50 plug has two “hots,” a ground, and a neutral. Typically, NEMA 14-50 is the recommended 50- amp plug, as it is the most versatile option.

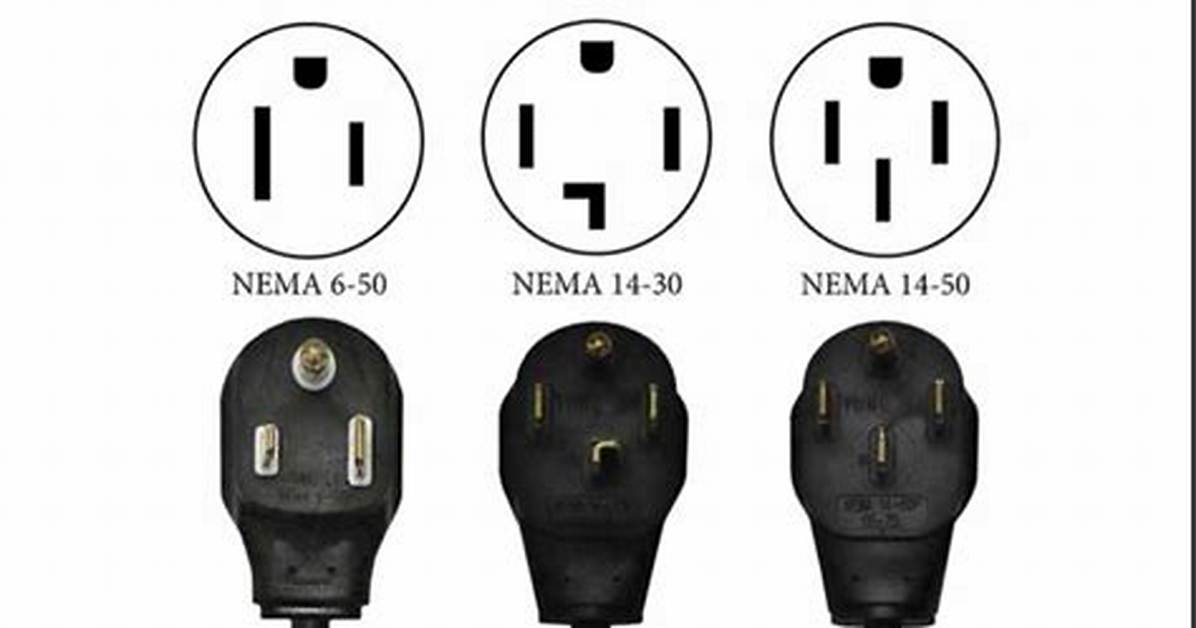

What is the difference between a NEMA 6-50 and 14-50 plug?
The NEMA 14-50 and 6-50 receptacles are both rated for 50A service. The 6-50 receptacle does not use the neutral connection so one less wire is required. The 14-50 receptacle is more common of the two receptacles and is used with electric ovens, ranges; also common at campgrounds for powering RVs.
What does a 240 outlet look like?
A 240-volt outlet is larger with two vertical side holes, an “L”-shaped hole on top, and a bottom hole that looks like a half circle. Newer four-prong outlets add a ground wire over older three-pronged ones that helps avoid electrical shock. A 240-volt outlet is typically about 4½ inches high and 4½ inches wide.
Are there different types of 220v outlets?
Like the 110 volt outlet, there are a few variations of the 220 volt outlet based on the size of the breaker and measured in Amps. However, in this case there are 3 common variations: 15 Amp, 20 Amp and 30 Amp.
What is a NEMA 14 30 plug?
The NEMA 14-30 adapter will allow a Tesla to draw up to 24 amps (5.7 kW at 240 volts). Recharge speeds will vary between different models.
What is the difference between NEMA 6-50 and 6 50R?
R is for receptacle, p is for plug. The R is the socket, receiver, female portion of the two. P is the plug, pronged, male portion.
Can I plug a 6-15P into a 6-20R?
NEMA 6-15P to 6-20R Power Cord Plug Adapter allows you to plug a device with a 6-20P plug on its power cord into a 6-15R receptacle.
What does the R stand for in NEMA 14 50R?
The R in 14-50R stands for receptacle.
What wire do you use for 50 amps?
50 AMP Wire Size
For a maximum of 50 amps, you’ll need a wire gauge of 6. Fifty amp breakers are most often used to power many different appliances.
What size wire do I need for a NEMA 14-50 outlet?
3/4″ will be the legal minimum for the metal conduits and 4 #6 wires.
What is a 14-50 NEMA outlet?
The NEMA 14-50 is a 240-Volt 50-Amp socket. A 240-volt dedicated circuit installed for higher-power devices can be wired as a 14-50 line. High power devices such as electric stoves or welders, are typical applications for level 2 chargers. They are also often used for RV and mobile homes.
