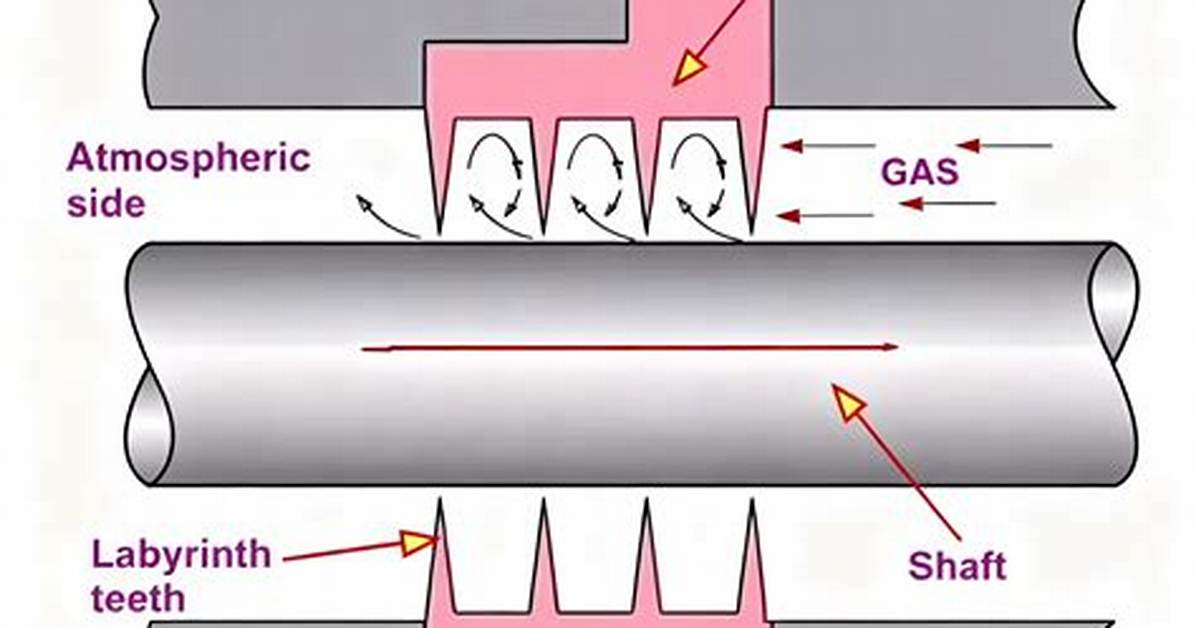

Labyrinth seals are a critical component applied across rotating equipment to seal high pressure areas from low pressure areas and prevent contamination of the process. Designed as a non-contacting seal with a precise clearance over the rotor, labyrinth seals directly affect equipment efficiency.
Where are labyrinth seals used?
Labyrinth seals are used for many low-pressure air compressors, especially when robustness is more important than low leakage. They are normally made of metal, mainly aluminum, but thermoplastics can be used for higher corrosion resistance or better rubbing behavior.
What is labyrinth seal in turbine?
A labyrinth seal is a type of mechanical seal that provides a tortuous path to help prevent leakage. An example of such a seal is sometimes found within an axle’s bearing to help prevent the leakage of the oil lubricating the bearing.
Do labyrinth seals leak?
With similar pressure ratio and seal clearance, the downward stepped labyrinth seal exhibits lower leakage rate, and provides the best sealing efficiency. Overall, the sealing clearance plays a decisive role in the leakage performance of a labyrinth seal.
Is a labyrinth seal used in impulse turbine rotors?
The seal steam system enables the turbine to be sealed where the shaft exits the casing—in effect keeping “air out and steam in.” Sets of labyrinth packing are used along the turbine rotor where the rotor exits the turbine casing to maintain this pressure differential between the inside and outside.
How do honeycomb seals work?
Sealing Without Gas Swirl
Honeycomb seals are machined with individual chambers that create the pressure drop needed to slow leakage. Those chambers also disrupt circumferential flow around the shaft, preventing destabilizing forces caused by the gas swirl that is common with labyrinth seals.
What is difference between mechanical seal and oil seal?
Oil or Rotary shaft seals are vulnerable to extreme temperatures, which can cause them to wear out faster if they are used in very high or low temperatures. A mechanical seal features stationary elements, rotating components and a spring.
What does a bearing isolator do?
“A bearing isolator is an advanced sealing solution that is used to protect bearings on rotating equipment,” said James Wong, the Product Manager for Bearing Isolators at Garlock. “They are ideal for industries that are wet, dirty, dusty, or have lots of airborne contaminants—like sugar or flour processing facilities.”
How does a duo cone seal work?
Method Of Operation
The seals are installed so that one seal is stationary while the other rotates. The lapped sealing faces slide against each other on a thin film of lubricant. This prevents oil escaping from the system while preventing contaminants from entering.
How are labyrinth seals made?
A non-contact labyrinth seal is a type of mechanical seal designed by layering together metal sealing plates that combine to form a bunch of angles in a “maze-like” pattern. This complex maze-like pattern prevents contaminants and splashing liquids from hitting the bearing.
What is a gland seal?
Flanged gland seals are shaft seals that mount to the outside of pedestal trough ends and are used to prevent bulk materials from leaking out of a screw conveyor or feeder. Flanged gland seals consist of an outer housing, multiple rings of packing and a follower.
What is a axle seal?
A car axle seal is the part that seals the connection of a CV axle (driveshaft) to the transmission or rear differential. The job of an axle seal is to keep the transmission fluid or differential oil from leaking out. In some all-wheel drive vehicles, one of the front CV axles is connected to the transfer case.
Why are oil seals Pressurised?
Most oil, grease, and bearing seals with elastomeric seal lips are designed for zero pressure but will provide adequate service up to 3psi (0.2bar). Higher pressures will push the lip against the shaft and cause excessive friction and wear and rapid failure of the seal.
What is a clearance seal?
Clearance seals are often referred to as floating labyrinth seals. The design of clearance seals has precise control over the clearance between the rotating shaft and the inside diameter of the seal ring.
What is labyrinth ring?
The labyrinth rings are made of steel and have two radially arranged labyrinth steps that form a narrow sealing gap with the housing grooves. Labyrinth seals allow for some misalignment, high speeds, a wide temperature range, and do not limit axial movement due to thermal expansion.
Why do you need a gland steam extractor?
The function of the gland steam condenser is to maintain a sub-atmospheric pressure at the outermost leak-off belt of the glands and thereby prevent the leakage of steam from the glands into the turbine hall, where it would condense on the walls and plant. The condenser is vented to the atmosphere via a blower.
