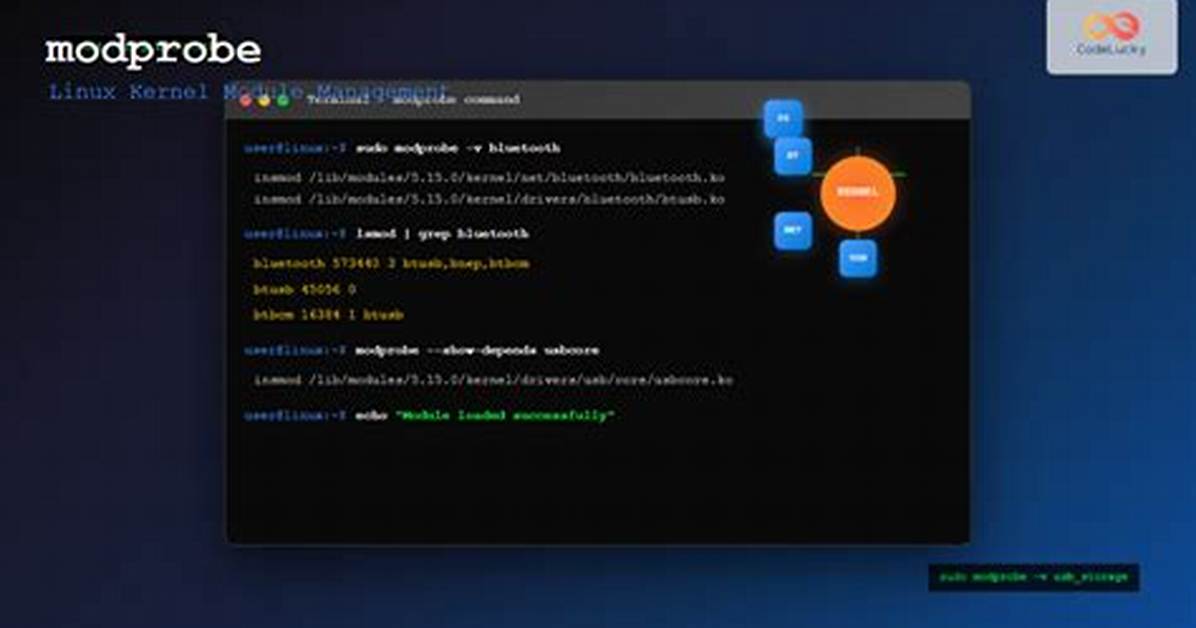

Use the modprobe command to add or remove modules on Linux. The command works intelligently and adds any dependent modules automatically. The kernel uses modprobe to request modules. The modprobe command searches through the standard installed module directories to find the necessary drivers.
What is the difference between insmod and modprobe?
insmod is similar to modprobe: it can insert a module into the Linux kernel. Unlike modprobe, however, insmod does not read its modules from a set location, automatically insert them, and manage any dependencies. insmod can insert a single module from any location, and does not consider dependencies when doing so.
What is modprobe in Ubuntu?
DESCRIPTION. modprobe intelligently adds or removes a module from the Linux kernel: note that for convenience, there is no difference between _ and – in module names (automatic underscore conversion is performed).
Where is modprobe located?
modprobe looks in the module directory /lib/modules/`uname -r` for all the modules and other files, except for the optional configuration files in the /etc/modprobe.
What does SND Aloop do?
snd-aloop is the kernel module for setting up virtual audio loopback devices. Now in this, whatever audio is played back into hw:2,0,s could be captured from hw:2,1,s and viceversa, s ranging from 0 to 7.
How do I start modprobe?
2 Answers
create the config file: /etc/modules-load.d/rt2800usb.conf.open it and edit like this (add the module name): rt2800usb.next time you reboot the module should be automatically loaded.
What happens when insmod is called?
When we do insmod on a module, it performs a series of steps: It calls init_module() to intimate the kernel that a module is attempted to be loaded and transfers the control to the kernel. In kernel, sys_init_module() is run.
How do kernel modules work?
Kernel modules are pieces of code that can be loaded and unloaded into the kernel upon demand. They extend the functionality of the kernel without the need to reboot the system. To create a kernel module, you can read The Linux Kernel Module Programming Guide. A module can be configured as built-in or loadable.
What is a .KO file?
ko files) are object files that are used to extend the kernel of the Linux Distribution. They are used to provide drivers for new hardware like IoT expansion cards that have not been included in the Linux Distribution.
What does lsmod do in Linux?
lsmod is a command-line utility that displays information about the loaded Linux kernel modules.
How do I load modules with modprobe?
Loading a Module
To load a kernel module, run modprobe module_name as root . By default, modprobe attempts to load the module from /lib/modules/kernel_version/kernel/drivers/ . Some modules have dependencies, which are other kernel modules that must be loaded before the module in question can be loaded.
What is Nvidia modprobe?
The nvidia-modprobe utility is used by user-space NVIDIA driver components to make sure the NVIDIA kernel module is loaded and that the NVIDIA character device files are present. These facilities are normally provided by Linux distribution configuration systems such as udev.
What is Softdep?
The softdep command allows you to specify soft, or optional, module dependencies. modulename can be used without these optional modules installed, but usually with some features missing. For example, a driver for a storage HBA might require another module be loaded in order to use management features.
How do I remove a Linux module?
To unload a kernel module, we use the rmmod (remove module) command. The following example will unload or remove the speedstep-lib. ko module.
How do I list all modules in Linux?
The easiest way to list modules is with the lsmod command.
Listing modules
“Module” shows the name of each module.”Size” shows the module size (not how much memory it is using)”Used by” shows each module’s usage count and the referring modules.
How do you use Alsamixer?
Alsamixer
Open a terminal. (The quickest way is the Ctrl-Alt-T shortcut.)Enter “alsamixer” and press the Enter key.You will now see a user interface. In this user interface, you can do the following: Select your correct sound card using F6 and select F5 to see recording controls as well.
What dies SMD mean?
SMD means surface mounted diode. This is a better technology than the first generation DIP LEDs.
