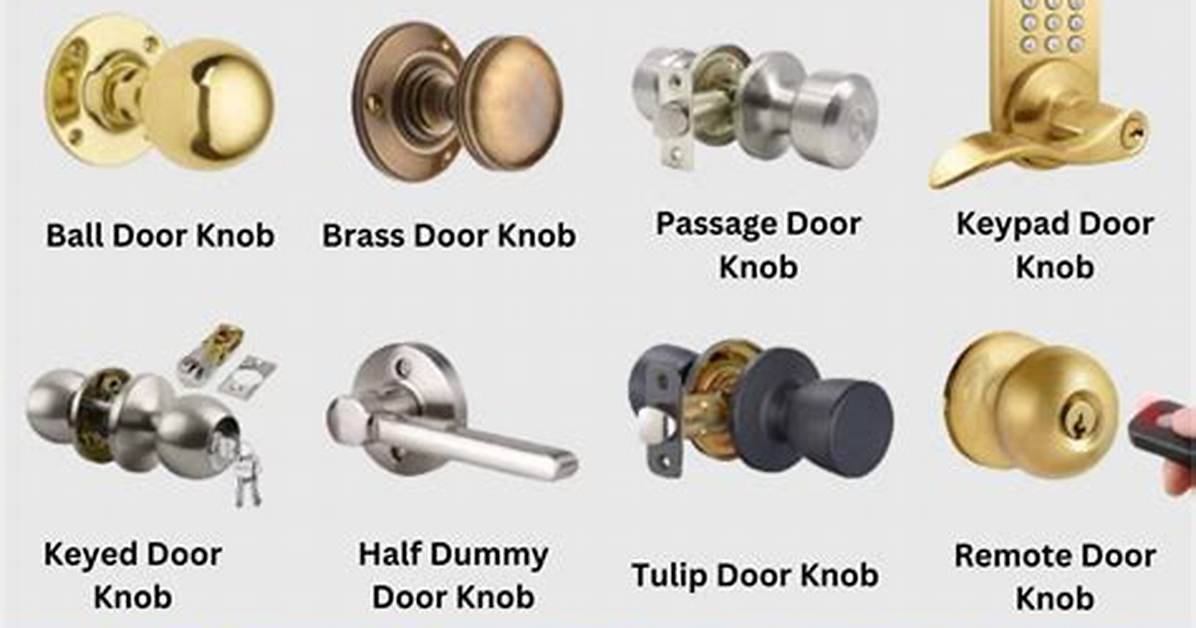

Types of door handles
Lever on backplate handles.Lever on rose handles.D Pull handles.Flush pull handles.Doorknobs.Thumb turns.Cabinet cup handles.Cabinet pull handles.
How do I know what kind of door knob I have?
The main measurements you should determine are:
Backset — The distance from the edge of the door to the center of the knob. Cross Bore — The hold along the edge of the door frame. Door Thickness — This usually ranges from 1 ¼ inches to 3”, with exterior doors frequently being thicker than interior ones.
Do all door knobs fit all doors?
To have the door function properly, you will have to make sure that the door knob you buy is the correct size for your door. The standard size for a door knob diameter is either 2 3/8 inches or 2 3/4 inches and these knobs will usually fit doors that are anywhere between 1 3/8 inches to 1 3/4 inches thick.
Are all door knobs universal?
Door levers are left-handed, right-handed or universal. To determine what you need, look at the door from outside the house or room. If the hinges are on the left, look for a left-handed or universal lever. If the hinges are on the right, you need a right-handed or universal model.
What is the difference between passage and dummy door knobs?
The main types of door functions are Passage (doors that don’t require locking), Privacy (a door that can be locked by a button on the inside), Dummy (has no mechanical latch and acts only as a pull), and Interior Mortise (door with an active latch with skeleton key lock).
What is entry door knob?
Keyed entry knobs are locked or unlocked with a key on the outside knob, or a turn button on the inside knob. This function is designed with an interior emergency exit feature just in case of a fire or other emergency. In some instances, the lock/key mechanism can also be on both sides of the door.
What is a door knob that doesn’t turn called?
Dummy knobs do not turn. They don’t have locks, axles or latches. Dummy knobs are fake, fixed knobs used to open and close a door that doesn’t have a traditional latch. Available in common designs including handlesets and levers, dummy knobs also are used to dress up inactive doors.
What does double bore door mean?
If your door has two or three bore holes, it’s almost certainly an exterior door. In this case, you’ll likely appreciate an even greater level of security and additional convenience features. Simply put, the top hole in a double bore hole door is for your deadbolt and the bottom is for your knob or lever.
How do you know what size door knob to buy?
You’ll need to know the bore hole’s diameter to get the right sized knob. Measure across the circular hole at its widest point, i.e. start at the bottom of the hole and pull the tape until you hit the top of the hole. There’s your diameter. Write down the number of inches that you see on a small notepad for reference.
What is the standard size hole for a door knob?
Standard Door Prep for Door Knobs & Levers:
The standard sized bore hole is 2 1/8″ in diameter. Through the edge of the door there is a 1″ cross bore that extends from the edge of the door through the bore hole. (This cross bore is where the latch is installed).
Is it easy to replace door knobs?
Replacing a doorknob is an easy do-it-yourself project.
