An elastic network interface is a logical networking component in a VPC that represents a virtual network card. It can include the following attributes: A primary private IPv4 address from the IPv4 address range of your VPC. One or more secondary private IPv4 addresses from the IPv4 address range of your VPC.
What is Ena and ENI in AWS?
AWS: Elastic Network Interface (ENI), Enhanced Networking (EN) or Enhanced Network Adapter (ENA), Elastic Fabric Adapter (EFA)
What is AWS Lambda Eni?
The Hyperplane ENI is a managed network resource that the Lambda service controls, allowing multiple execution environments to securely access resources inside of VPCs in your account.
How many Eni can be attached to EC2?
A single EC2 instance can now be attached to two ENIs, each one on a distinct subnet.
What does interface mean in networking?
A network interface is the network-specific software that communicates with the network-specific device driver and the IP layer in order to provide the IP layer with a consistent interface to all network adapters that might be present.
What are eth0 and eth1?
eth0 is the first Ethernet interface. (Additional Ethernet interfaces would be named eth1, eth2, etc.) This type of interface is usually a NIC connected to the network by a category 5 cable. lo is the loopback interface. This is a special network interface that the system uses to communicate with itself.
What is difference between Eni Ena and EFA?
An EFA ENI provides all the functionality of an ENA ENI, plus hardware support for applications to communicate directly with the EFA ENI without involving the instance kernel (OS-bypass communication) using an extended programming interface.
What is Eni ENA EFA?
EFA basics
An EFA is an Elastic Network Adapter (ENA) with added capabilities. It provides all of the functionality of an ENA, with an additional OS-bypass functionality.
What does eth0 represent in EC2?
Answer: Every instance in a VPC has a default network interface, called the primary network interface (eth0). You cannot detach a primary network interface from an instance. You can create and attach additional network interfaces. The maximum number of network interfaces that you can use varies by instance type.
What is device index in Eni?
DeviceIndex. The network interface’s position in the attachment order. For example, the first attached network interface has a DeviceIndex of 0.
How do I delete Eni?
Solution:
Navigate to Network Interfaces in the EC2 console.Select the ENI and open the Details tab.Review the Description to find which resource the elastic network interface is attached to.Consider deleting the described service if not being used. (ENI will automatically be deleted if the service is deleted).
How do you detach an Eni?
After some time I was able to detach the ENI. It may not be clear by the message that there are dependent load balancers.
14 Answers
Remove unused VPC links from API gateway.Remove unused VPC Endpoint services.Remove unused NAT gateways.Remove unused ECS/EKS clusters.Remove unused load balancers.Remove unused EFS mounts.
How do you attach an Eni?
Go to EC2 instances → Select the EC2 instance → Select Actions → Select Networking → Select Attach Network Interface and select second ENI you have created (See Figure 10).
When it comes to the ENI attachment to an EC2 instance what does warm attach refer to?
You can attach a network interface to an instance when it’s running (hot attach), when it’s stopped (warm attach), or when the instance is being launched (cold attach). You can detach secondary network interfaces when the instance is running or stopped.

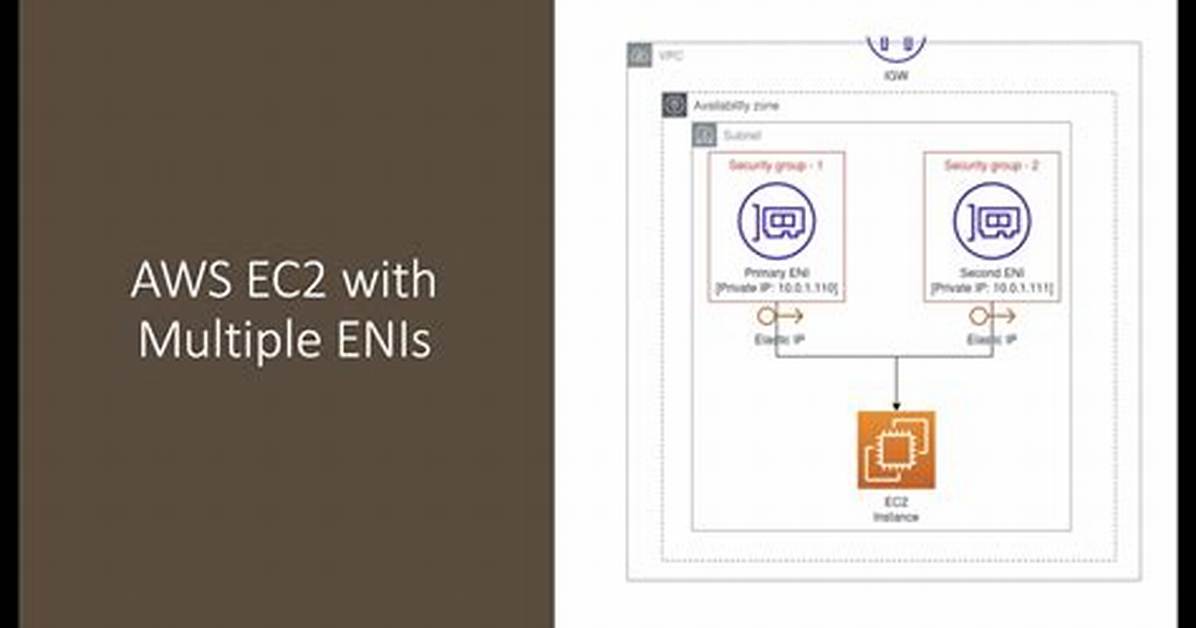

Can you attach two ENIs to an EC2 instance?
Additional ENIs can be attached to an Amazon EC2 instance. These extra ENIs can be attached to different subnets in the same Availability Zone. The operating system can then route traffic out to different ENIs.
What is an example of a network interface?
A network interface is the point of interconnection between a computer and a private or public network. A network interface is generally a network interface card (NIC), but does not have to have a physical form. Instead, the network interface can be implemented in software. For example, the loopback interface (127.0.
Is an interface used for computer networking and telecommunications?
Interfaces are networking communication points for your computer. Each interface is associated with a physical or virtual networking device. Typically, your server will have one configurable network interface for each Ethernet or wireless internet card you have.
What is difference between interface and protocol?
An interface defines how two entities may communicate. A protocol defines how they should communicate and what that communication means.
