In a series connection, the amount of current flowing through the two appliances is the same, whereas, in the case of a parallel connection the voltage across each appliance is the same. Also, a parallel circuit consumes more power than a series circuit while also being more robust.
What is the difference between series and parallel resistors?
In a series circuit, the output current of the first resistor flows into the input of the second resistor; therefore, the current is the same in each resistor. In a parallel circuit, all of the resistor leads on one side of the resistors are connected together and all the leads on the other side are connected together.
Why is parallel better than series?
Advantages of having appliances in parallel rather than in series: The p.d (voltage) across each lamp is fixed, so the lamp shines with the same brightness, irrespective of how many other lamps are switched on. Each lamp can be turned on and off independently; one lamp fails, the other can still be operated.
What are 2 advantages of having a parallel circuit?
4 advantages of parallel electrical circuits
Independent components. When you turn on one gadget, you don’t necessarily want to turn on all the others. Consistent voltage. Most appliances require at least 110 volts of electricity. Allows for additional components. Simple, safe and reliable.
Which type of circuit is used in houses?
Most standard 120-volt household circuits in your home are (or should be) parallel circuits. Outlets, switches, and light fixtures are wired in such a way that the hot and neutral wires maintain a continuous circuit pathway independent from the individual devices that draw their power from the circuit.
Which is safer parallel or series?
Both can be as safe as one another. The supply voltage is the deciding factor. The components connected in parallel circuits operate at different voltages.
Is it better to run solar panels in series or parallel?
The main thing to remember is that wiring in series will increase your voltage, while wiring in parallel will increase your amperage. Both of the voltage and amperage need to be considered when designing your system, especially when it comes to finding an inverter that will work best for you.
What is a series parallel circuit?
A series-parallel circuit, or combination circuit, combines both series and parallel connections. ▪ Most electronic circuits fall into this category. Series-parallel circuits are typically used when different voltage and current values are required from the same voltage source.
What are examples of series and parallel circuits?

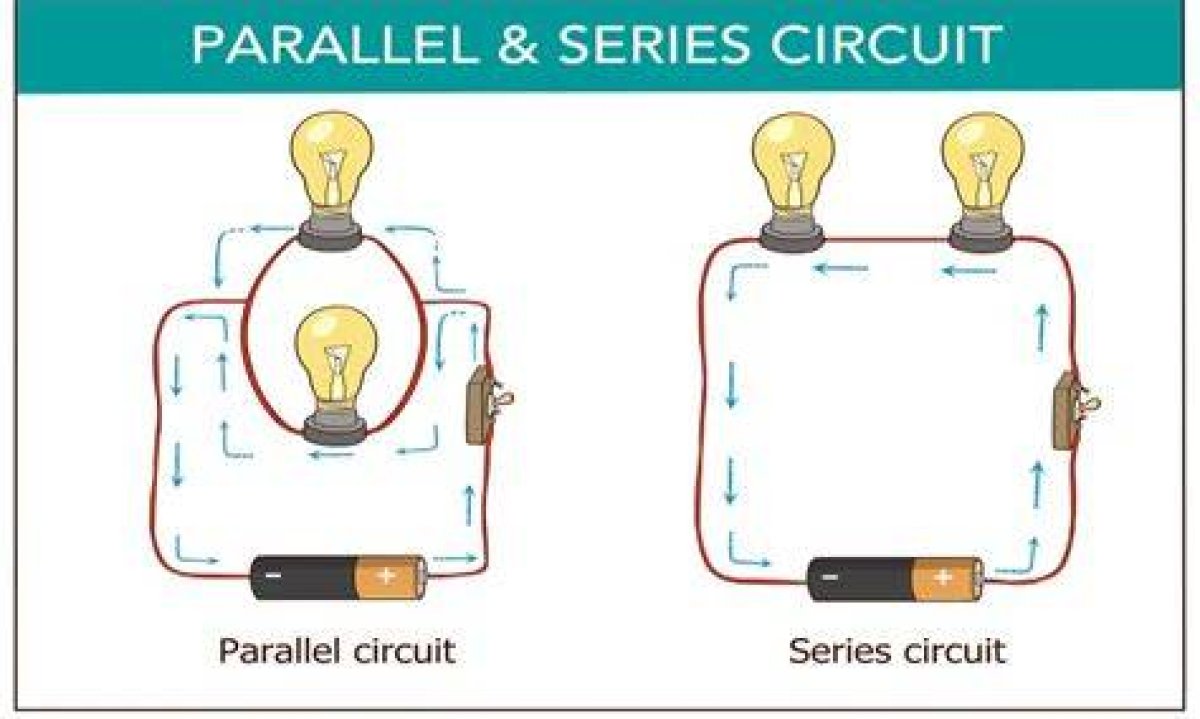

If a wire joins the battery to one bulb, to the next bulb, to the next bulb, to the next bulb, then back to the battery in one continuous loop, the bulbs are said to be in series. If each bulb is wired to the battery in a separate loop, the bulbs are said to be in parallel.
Which circuit is a series circuit?
) A series circuit comprises a path along which the whole current flows through each component. A parallel circuit comprises branches so that the current divides and only part of it flows through any branch. The voltage, or potential difference, across each branch of a parallel circuit…
Where are series circuits used?
Series circuits are used in areas where the operation of the circuit is required to be linear. Water heaters use a series circuit. Freezers and refrigerators both use series circuits. Lamps also operate on a series circuit.
What are the advantages of series circuit?
Advantages of series combination: Cells connected in series give a greater resultant voltage than individual cells. Voltage increases if the number of cells increases. Series circuits do not overheat easily.
Which is a disadvantage of a parallel circuit?
A disadvantage of parallel circuits is that they require more wiring. Additionally, the voltage can’t be increased in a parallel circuit without decreasing the resistance in the circuit.
Which lasts longer series or parallel?
Do batteries last longer in series or parallel? Batteries last longer in parallel, because the voltage remains the same, but the amps increase. If you connect two 12v 50ah batteries in parallel, it will still be a 12 volt system, but the amps will double to 100ah, so the batteries will last longer.
Why is a parallel circuit brighter than a series?
Two bulbs in a simple parallel circuit each enjoy the full voltage of the battery. This is why the bulbs in the parallel circuit will be brighter than those in the series circuit. Another advantage to the parallel circuit is that if one loop is disconnected, then the other remains powered.
