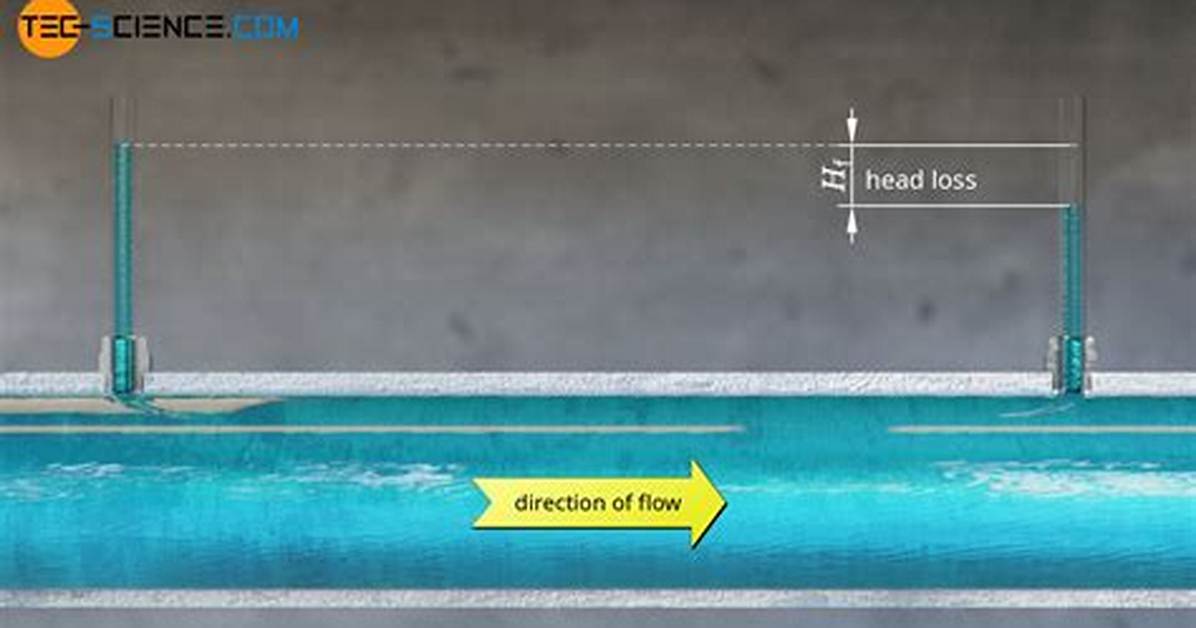

The head loss is a measure of the reduction in the total head of the fluid as it moves through a pipeline. Head loss along the pipe wall is called friction loss or head loss due to the friction.
What is head loss formula?
In fluid dynamics, the Darcy–Weisbach equation is an empirical equation that relates the head loss, or pressure loss, due to friction along a given length of pipe to the average velocity of the fluid flow for an incompressible fluid. The equation is named after Henry Darcy and Julius Weisbach.
What affects head loss?
Overall head loss in a pipe is affected by a number of factors which include the viscosity of the fluid, the size of the internal pipe diameter, the internal roughness of the inner surface of the pipe, the change in elevation between the ends of the pipe, bends, kinks, and other sharp turns in hose or piping and the
Where does head loss occur?
Head loss is a measure of the reduction in the total head of the fluid as it moves through a pipe system. Head loss that occurs along the pipe wall is called friction loss.
What’s the difference between head loss and pressure loss?
The head loss (or the pressure loss) represents the reduction in the total head or pressure (sum of elevation head, velocity head, and pressure head) of the fluid as it flows through a hydraulic system.
How does head loss affect pressure?
What is head loss or pressure loss? In fluid flow, head loss or pressure loss reduces the total head (sum of the potential head, velocity head, and pressure head) of a fluid caused by the friction present in the fluid’s motion.
What is irreversible head loss?
When a liquid or gas flows along a pipe, friction between the pipe wall and the liquid or gas causes a pressure or head loss. This pressure or head loss is an irreversible loss of the fluids potential energy.
What is total head loss?
Head loss refers to the total pressure losses sustained by the fluid as it flows from the suction point to the discharge point. Head loss is caused when the liquid loses momentum as it flows, and depends upon fluid viscosity, pipe diameter, pipe length and accessories such as valves and elbows within the pipework.
What does head loss mean?
Head loss is a measure of the reduction in the total head (sum of elevation head, velocity head and pressure head) of the fluid as it moves through a fluid system. Head loss is unavoidable in real fluids.
What are the major and minor losses of head?
Major Head Loss – head loss or pressure loss – due to friction in pipes and ducts. Minor Head Loss – head loss or pressure loss – due to components as valves, bends, tees and the like in the pipe or duct system.
What does negative head loss mean?
In a negative head situation, there is poor natural flow of water. This may occur in shower heads situated above the height of the base of the cold water tank, or when the height between the base of the cold water tank and the shower head is limited.
What is minor head loss?
In fluid flow, minor head loss or local loss is the loss of pressure or “head” in pipe flow due to the components as bends, fittings, valves, or heated channels.
How do you convert head loss to energy?
The Energy equation can be expressed in terms of head and head loss by dividing each term by the specific weight of the fluid. The total head in a fluid flow in a tube or a duct can be expressed as the sum of elevation head, velocity head and pressure head. Note!
What are the reason for minor head losses in a pipe?
Major losses occur due to the friction effect between the moving fluid and the walls of the pipe. The minor losses occur due to any disturbance that might occur to the flow, which is mainly caused by the installed fittings on the pipeline.
Which of the following is a major loss?
1. Which one of the following is a major loss? Explanation: The major loss for the following of the pipes is due to the frictional resistance between adjacent fluid layers sliding over each other. All other losses are considered to be minor losses.
