A transformer is an electrical apparatus designed to convert alternating current from one voltage to another. It can be designed to “step up” or “step down” voltages and works on the magnetic induction principle.
How does a transformer increase voltage?

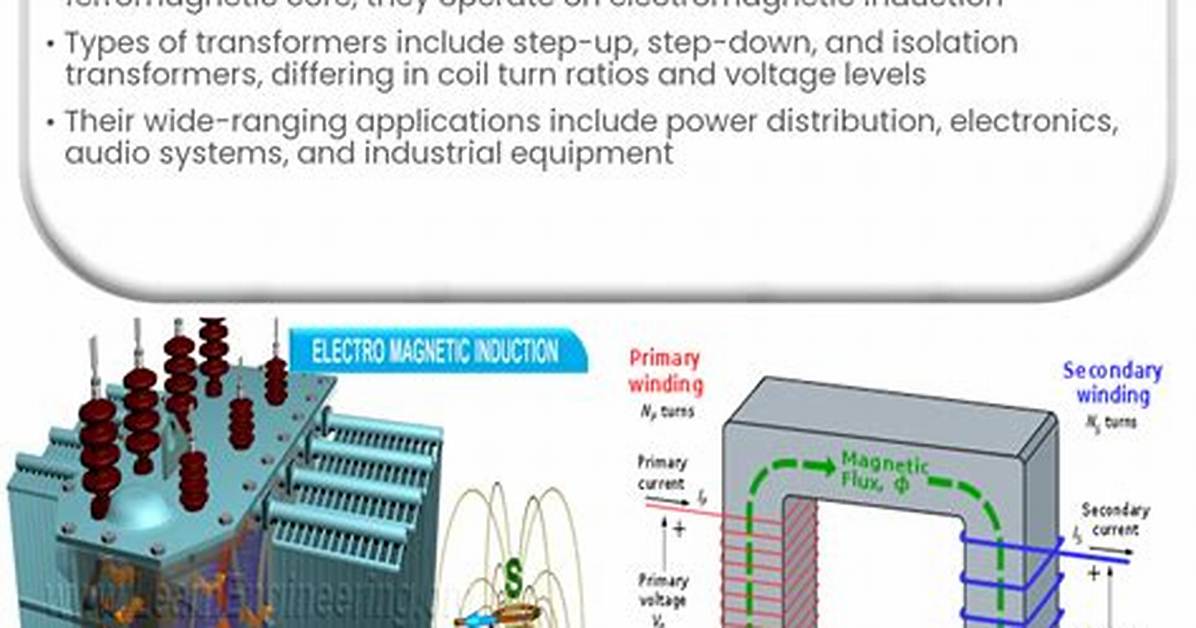

A transformer is made from two or more coils of insulated wire wound around a core made of iron. When voltage is applied to one coil (frequently called the primary or input) it magnetizes the iron core, which induces a voltage in the other coil, (frequently called the secondary or output).
How do transformers work physics?
When a transformer is working: a primary potential difference drives an alternating current through the primary coil. the primary coil current produces a magnetic field, which changes as the current changes. the iron core increases the strength of the magnetic field.
How does a transformer produce electricity?
Transformers do not generate electrical power. Instead, they transfer it from one AC circuit to another. This transfer process begins when an electrical current enters a transformer. The current enters via a connection to the primary coil (also called a winding because it winds around a portion of the core).
Do transformers work with AC or DC?
A transformer is a device which step-up or step-down the level of AC current or voltage without changing the primary (i.e. input source) frequency. Transformer only works on AC and can’t be operated on DC i.e. it has been designed to be operated only and only on alternating current and voltage.
What is the transformer formula?
Vp=−NpΔΦΔt V p = − N p Δ Φ Δ t . This is known as the transformer equation, and it simply states that the ratio of the secondary to primary voltages in a transformer equals the ratio of the number of loops in their coils.
What is the main purpose of transformer?
Transformers are employed for widely varying purposes; e.g., to reduce the voltage of conventional power circuits to operate low-voltage devices, such as doorbells and toy electric trains, and to raise the voltage from electric generators so that electric power can be transmitted over long distances.
How do transformers change current?
Transformers use electromagnetic induction to change the voltage and current. This change is called transformer action, and describes how the transformer changes an AC signal from its primary to its secondary component (like in the equation above).
How does a transformer produce output voltage?
Generally, the primary winding of a transformer is connected to the input voltage supply and converts or transforms the electrical power into a magnetic field. While the job of the secondary winding is to convert this alternating magnetic field into electrical power producing the required output voltage as shown.
How is a transformer constructed?
The construction of transformer is of iron core laminated with steel bands. Core laminations are constructed from insulated metal thin metal strips. These laminations are separated and wound around the limb using a sheet of coat or parchment. The winding consists of two types, main and secondary winding.
How do step up transformers work?
Hence, in simple words, a step up transformer increases the electricity voltage from lower to higher in the secondary coil according to the requirement or the application. The voltage is increased from the primary winding to the secondary winding in a way that makes the power supply adaptable with the equipment.
What happens when a transformer blows?
When a transformer blows, it interrupts electrical service to any residences or businesses connected to the transformer. Electric service crews must replace the destroyed hardware, first shutting down the incoming electrical line to prevent damage and injury.
Which Cannot be stepped up in a transformer?
1 Answer. Working of a transformer is based on the principle of mutual induction. Transformer cannot step up or step down a dc voltage.
Does a transformer step up power?
Transformers “step up” or “step down” voltage according to the ratios of primary to secondary wire turns.
What happens if DC supply is given to the transformer?
When we apply DC voltage to the transformer, the reactance of its winding will be zero since reactance is frequency-dependent and the frequency of a DC supply is zero. Flux produced by the flow of direct current will be constant.
What is a transformer symbol?
While the schematic symbol of a transformer may look like two coils (called windings) placed next to each other, the magnetic coupling and orientation between these two coils is also indicated within its schematic symbol.
Why are transformers oil filled?
Transformer oil is used to insulate high-voltage electrical infrastructure such as transformers, capacitors, switches and circuit breakers. Transformer oils are designed to operate effectively at very high temperatures, cooling, insulating, and stopping corona discharges and arcing.
