The “d” stands for penny, so 8d refers to an 8-penny nail, 16d to a 16-penny nail and so on.
How long is an 8d nail?
Nail Measurement Guide: 2d to 16d

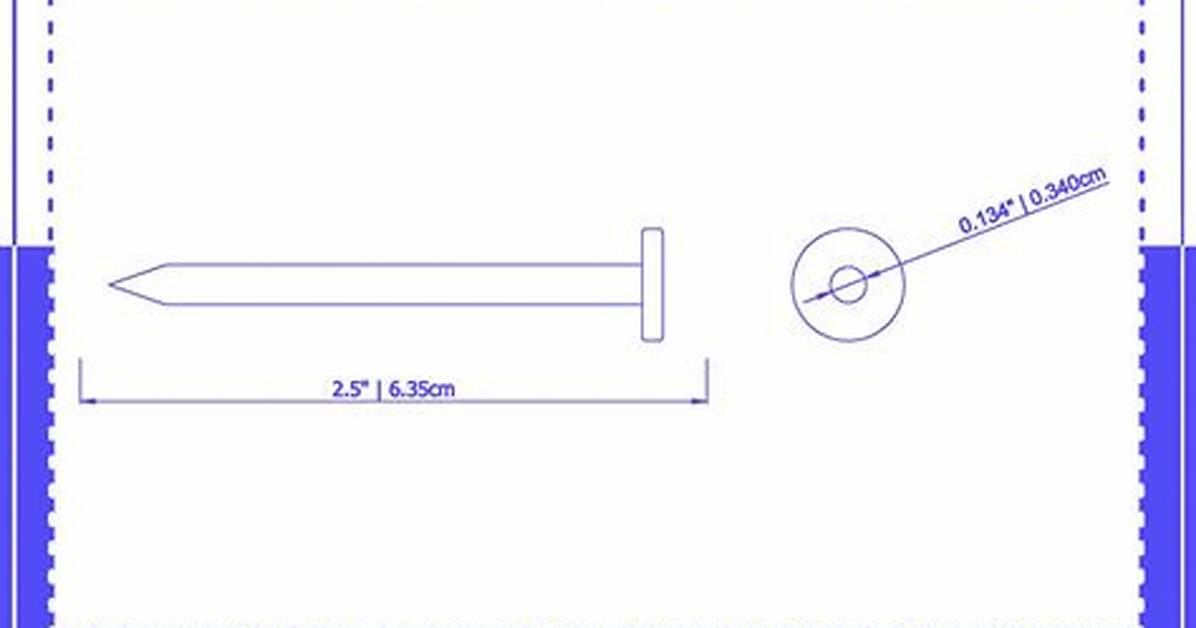

A 6d nail is 2 inches long and an 8d nail is 2.5 inches long. 12d nails are 3.25 inches long and 16d nails (16 penny) are 3.5 inches long.
Can You Use 8d nails in a nail gun?
Overall, 16 and 8d coated sinker nails work perfectly for most framing jobs involving nail guns with many framers leaning towards 16d sinkers (0.148-inch) due to their extra sleekness.
What size is a .113 nail?
113 Collated Framing Nails.
Can you use .131 nails for framing?
131. For framing a stud to plate two 3″x. 131 nails meet code.
What screw is equivalent to a 8d nail?
SD9 screws replace 8d and 10d common and 1-1/2″ size nails and 16d sinker nails (all nails 0.148″ and 0.131″ diameter) in face-mount hangers and straps. When SD screws are to be an alternative to nails, specify and use only SD screws. Other types of screws shall not be substituted.
What are Brad nails?
Brad nails, or brads, are made of 18-gauge steel wire. Nail gauge sizes indicate the thickness of the nail. Thinner nails have higher gauge numbers. The small diameter of brad nails makes them easy to mask in wood trim or paneling. In addition to being thinner than standard nails, they also feature a smaller head.
How long is 10d nail?
For years, the building code defined a 10d common nail as 0.148 inches in diameter and 3 inches long, and that definition occurred in one location in the code. In the shear panel table of the code, Figure 1, International Building Code (IBC), the minimum penetration was listed for each of the nail specifications.
How long should brad nails be trimmed?
The rule is simple: a brad should be three times as long as the thickness of the material you are fixing. Example: if the material is 15 mm thick, the brad should be 45 mm long. Choose a brad gun that takes the length of brad you need.
What nails should I use for hanging pictures?
Finishing Nails
A single 1 1/2-inch (4d) or 2-inch (6d) finishing nail will support most pictures, even when nailing between studs. The trick is to drive the nail into the wall at a steep angle, at least 45 degrees. That will provide much greater holding power than tapping the nail straight into the wall.
What nails are best for framing?
Common nails: The first choice for many framing, construction and carpentry uses. The heavy shank provides sturdy support for framing and other rough work where strength and function are more important than appearance, because the round head is visible on the surface.
How many 150mm nails is 1KG?
The average contents of the 1KG pack is 29 nails.
How many 12 spikes are in a 50LB box?
SPIKES 12″ X 3/8″ (SINGLE OR 50LB BOX OF 120 SPIKES)
How many 12 inch spikes are in a 50LB box?
A: There are about 100 pieces per 50 lb box.
