As more and more resistors are added in parallel to a circuit, the equivalent resistance of the circuit decreases and the total current of the circuit increases. Adding more resistors in parallel is equivalent to providing more branches through which charge can flow.
What does it mean for a resistor to be in parallel?
When two or more resistors are connected so that both of their terminals are respectively connected to each terminal of the other resistor or resistors, they are said to be connected together in parallel.
What is the resistance of resistors in parallel?

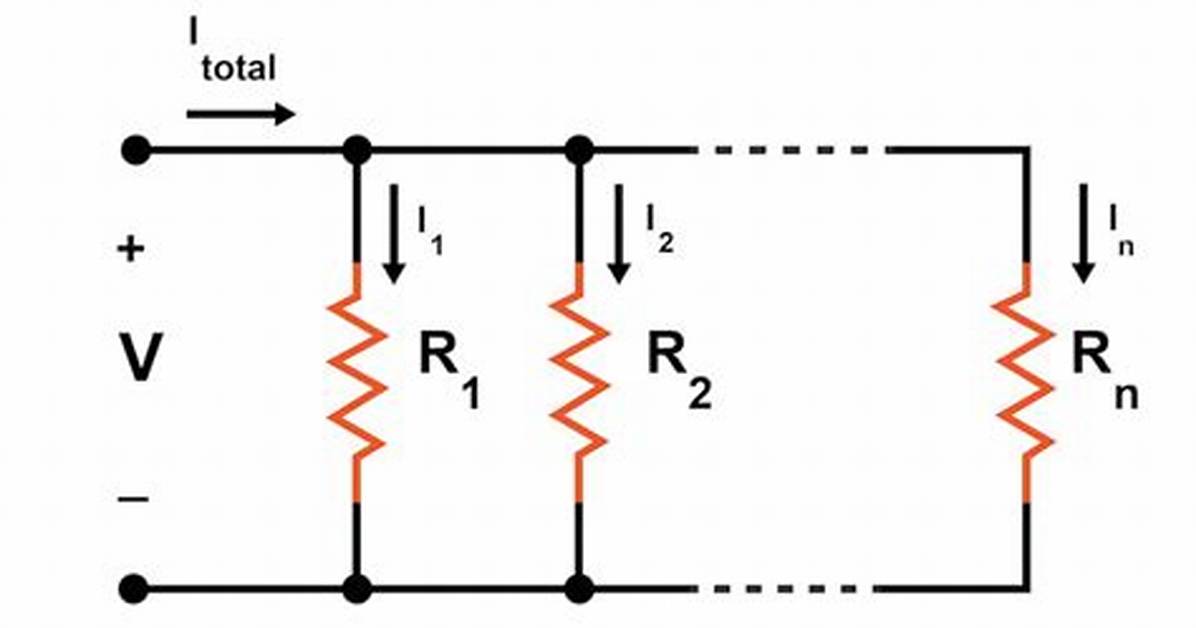

The total resistance of a set of resistors in parallel is found by adding up the reciprocals of the resistance values, and then taking the reciprocal of the total: equivalent resistance of resistors in parallel: 1 / R = 1 / R1 + 1 / R2 + 1 / R3 + A parallel circuit is shown in the diagram above.
Why do parallel resistors have the same voltage?
Resistors in parallel have the same numerical voltage drop because they are connected between the same two nodes. If they are connected between different nodes, they are not in parallel, even if they look like they’re in parallel and have the same numerical voltage across them.
What is resistor in series and parallel?
In a series circuit, the output current of the first resistor flows into the input of the second resistor; therefore, the current is the same in each resistor. In a parallel circuit, all of the resistor leads on one side of the resistors are connected together and all the leads on the other side are connected together.
What is resistor formula?
A resistor is an electronic constituent that is used in the circuit with the purpose of offering that specific amount of resistance. The resistance of any object is computed making use of the formula: R = V I. In this case, v = Voltage across its ends.
What is parallel formula?
The parallel lines formula is used to find whether two lines are parallel or not. The parallel line formula is applicable when we have the slope of two lines that we want to compare. Distance between the parallel lines never changes.
Why do we use resistors in parallel circuits?
However, the equivalent resistance does accurately duplicate the overall electrical properties of the network. This means that you can use REQ to determine the total current flowing through the branches, and this total current can help you to determine the voltage across the parallel network.
Is current the same in parallel?
Current. In a parallel circuit, charge divides up into separate branches such that there can be more current in one branch than there is in another. Nonetheless, when taken as a whole, the total amount of current in all the branches when added together is the same as the amount of current for the entire circuit.
Why does resistance decrease in parallel?
Resistors in parallel
In a parallel circuit, the net resistance decreases as more components are added, because there are more paths for the current to pass through. The two resistors have the same potential difference across them. The current through them will be different if they have different resistances.
When the two or more resistors are said to be in parallel?
When two or more resistors are connected between identical points in a circuit the resistors are said to be in parallel.
How is voltage same in parallel?
If two or more components are connected in parallel, they have the same difference of potential (voltage) across their ends. The potential differences across the components are the same in magnitude, and they also have identical polarities. The same voltage is applied to all circuit components connected in parallel.
When cells are arranged in parallel?
Detailed Solution
Parallel grouping: In parallel grouping, all anodes are connected at one point and all cathode are connected together at other points. Therefore when cells are connected in parallel, the voltage remains the same, and internal resistance decreases, hence the current increases.
Which quantity is same in parallel circuit?
Answer: voltage. hope it helps you !
