Definition of steering arm
: an arm for transmitting the turning force from the steering gear to the drag link especially of an automotive vehicle.
What is a steering arm called?
Steering knuckles: Mounted to the front axle beam by steel pins also known as “kingpins,” steering knuckles allow the pivoting action required to steer the vehicle. The knuckles also contain a spindle where bearings and wheel hubs are mounted.
What are steering arms attached to?
Answer: Tie rods are an integral part of your vehicle’s steering. Just as its name suggests, a tie rod ties your vehicle’s steering rack to the steering arm. The steering arm is attached to the wheel.
What is a steering rod called?
A rod, called a tie rod, connects to each end of the rack. The pinion gear is attached to the steering shaft. When you turn the steering wheel, the gear spins, moving the rack. The tie rod at each end of the rack connects to the steering arm on the spindle (see diagram above).
What are the 2 types of steering systems?
There are two main types of steering gears used for most modern vehicles: the rack and pinion steering gear and the recirculating ball steering gear.
What does the pitman arm do?
The pitman arm attaches to the steering gear shaft and acts as a lever, converting torque from the steering gear to mechanical force for movement of the steering linkage.
What is Pitman arm steering?
In automotive or truck steering systems, the Pitman arm acts as a linkage attached to the steering box (see recirculating ball) sector shaft, it converts the angular motion of the sector shaft into the linear motion needed to steer the wheels.
What are steering parts called?
Parts of the Steering system:
Sway Bar Links. Center Links. Idler Arms/Pitman Arms. Rack and Pinion Units. Tie Rod Ends/Sleeves.
Is a Pitman arm and idler arm the same thing?

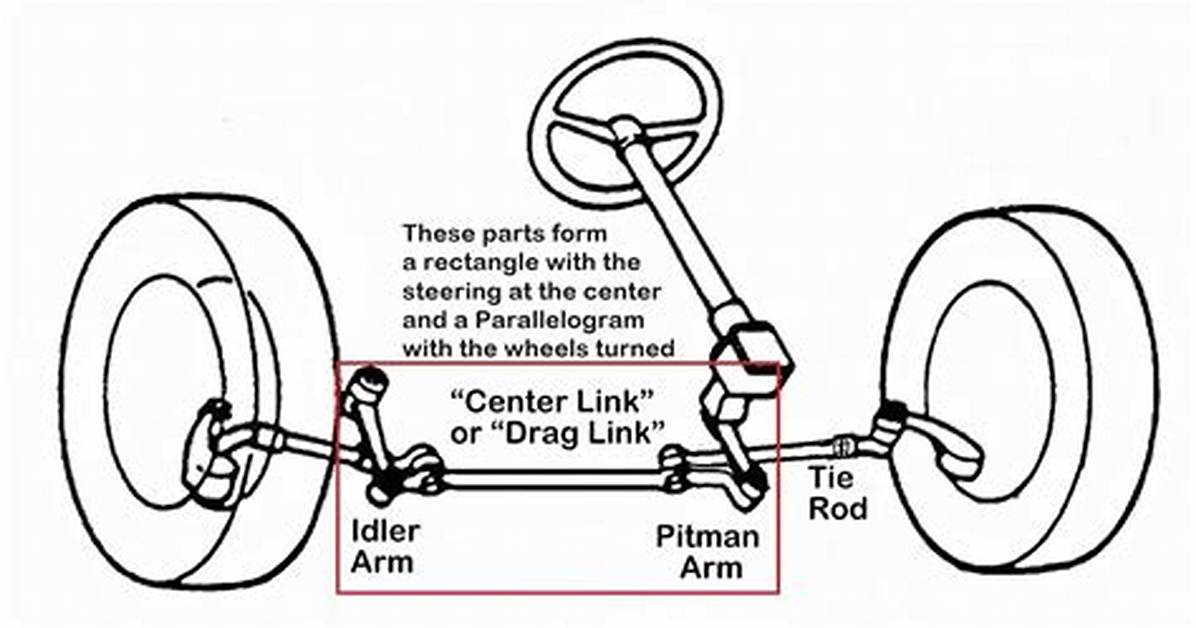

Generally, an idler arm is attached between the opposite side of the center link from the Pitman arm and the vehicle’s frame to hold the center link at the proper height. Idler arms are generally more vulnerable to wear than Pitman arms because of the pivot function built into them.
What are the 3 type of manual steering gears?
There are four common manual steering gears in use. The worm and sector, worm and roller, recirculating ball steering and the rack and pinion.
How do you check steering linkage?
Steering linkage
– Steer each front wheel by hand to identify components with excessive lateral movement. – Rotate steering linkage components by hand to check for binding of ball joints and excessive up and down (vertical) movement.
What is a steering idler arm?
What is an idler arm? The idler arm assembly provides pivoting support for the steering linkage. It is comprised of a rod that pivots on a bracket bolted to the frame of the vehicle on one end and supports a ball socket on the other end.
What’s rack and pinion steering?
The rack and pinion, also known as the steering rack, is an assembly in your vehicle that allows your wheels to rotate from side to side when you turn your steering wheel. The rack and pinion got it’s from the type of gears used in the assembly.
What are the types of steering system?
Types of Steering Gears
Recirculating ball steering gear.Rack and pinion steering gear.The Worm and sector steering gear.Worm and roller steering gear.Worm and ball bearing nut steering gear.Cam and roller steering gear.The Cam and peg steering gear.Cam and double lever steering gear.
What are the 3 types of steering?
How do the Three Power Steering Systems Differ?
Hydraulic Power Steering.Electro-Hydraulic Power Steering.Electric Power Steering or Motor-Driven Power Steering.
What is the most common type of steering system?
Rack And Pinion Steering System
The most common steering system, the rack and pinion gets its name from the two gears it uses, the rack (the linear gear) and the pinion (circular gear). This system is used in most of the cars and is usually not employed in heavy-duty vehicles.
Which steering is the best?
Electric power steering provides better fuel economy
This method reduces the amount of weight in the vehicle. Also, the EPS system doesn’t use power from the engine as the hydraulic systems do. Overall, the electric power steering system is more efficient.
