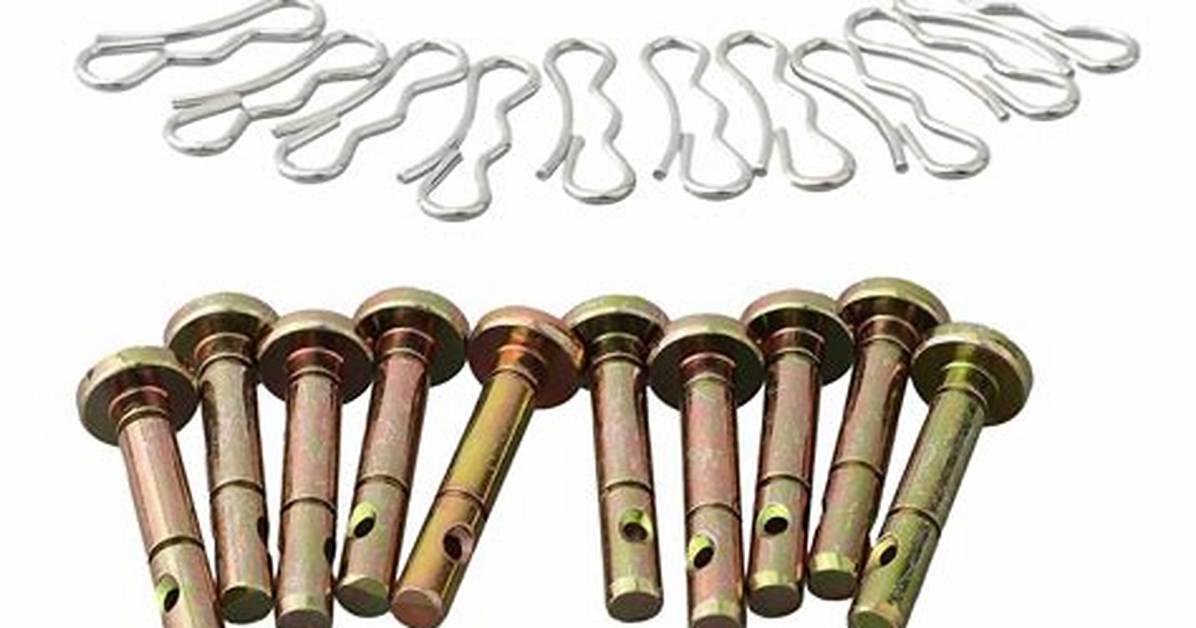

A shear pin (also known as a shear bolt) is a weak bolt that connects your auger to the auger shaft. That connection allows the augers to rotate, collect snow and send snow into the impeller fan where the snow is thrown from the chute.
Can you use a bolt as a shear pin?
Answer. No. Damage to the unit will occur if a higher grade bolt is used in place of the original.
What is shear pin in towbar?
Shear Pins & Bolts
Shear pins are used on aircraft towbars and aircraft towbar heads as a sacrificial piece which will break in the event of excess loads or abnormal loads, in order to prevent damage to both the aircraft landing gear and the towbar itself.
What grade is a shear pin?
Normally shear bolts are Grade 2 and there is no soft grade #5 as it is either a grade #5 or not.
Why does my shear bolt keep breaking?
The shear bolts keep breaking in the auger or impeller of my snow blower / thrower can I use a regular bolt? NO, The fact that the shear bolt is broken is an indication that the impeller or auger has impacted against something that the machine is not designed or capable of processing.
Do Toro snow blowers have shear pins?
Toro two-stage snowblowers do not use shear pins. The commercial-grade gear case makes the need for a shear pin unnecessary. If the auger hits an obstruction or is over-loaded with snow, the engine may shut off, so that you can remove the key, clear the obstruction safely with a stick and get back to work.
Are all snowblower shear pins the same size?
There are three basic sizes of shear bolts, and it’s important to select the correct one for your snowblower to ensure it fits and works correctly. Brass 1/4″ shear bolts are most commonly used on smaller, entry-level snowblowers. Black 5/16″ shear bolts are for larger mid-grade snowblowers.
Should shear bolts be tight?
CarlByou make a good point for leaving shear bolts a little loose.
What is a shear pin made of?
A shear pin could potentially be made from any material although metal is the most common. When making a metal object for a mechanical application, an alloy and tempering is usually selected to make the construction resistant to damage.
What size shear pin do I need?
Answer: Measure the outside diameter and length of your existing shear pin. If it is 5/16″ (. 3125″) diameter and about 2″ long then this Stens pin should fit.
What is shear pin coupling?
GBM Shear Pin Coupling are used to control the rated torque. The pin shears off incase the torque of the whole coupling exceeds the rated torque. GBM Shear Pin coupling assembly consists of Shear Pin, Shear pin plates, Bush, Ball Bearing, Ball Retainer.
How do you tell the grade of a bolt?
You can usually figure out the grade, or strength, of a bolt by looking at the markings on its head. English bolts (U.S.S. or S.A.E) are categorized by grade, from grade 2 to grade 8, where the grade represents inch strength. The higher the grade, the stronger the bolt.
What are the different bolt grades?
The most common grading system used for bolts in the U.S. is the SAE system, but you can find metric grading systems as well. There are several grades of bolts but the three common grades for SAE are 2, 5 and 8. The common class (grades) for metric are 5.8, 8.8, 10.9 and 12.9. Each grade has a specific bolt strength.
