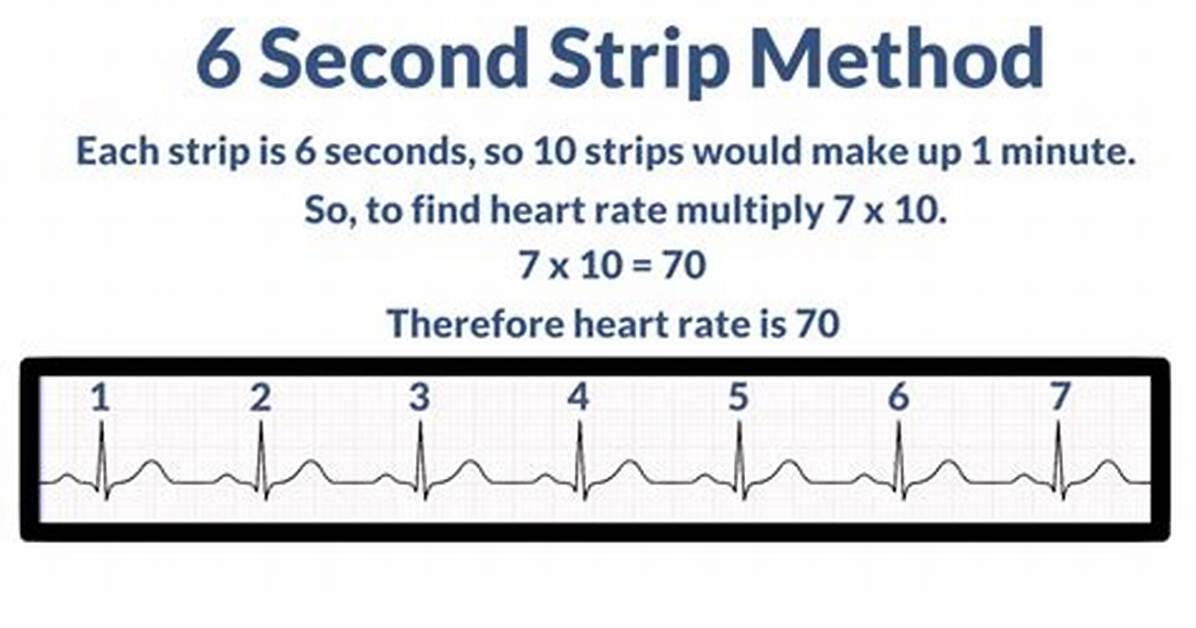

The second method can be used with an irregular rhythm to estimate the rate. Count the number of R waves in a 6 second strip and multiply by 10. For example, if there are 7 R waves in a 6 second strip, the heart rate is 70 (7×10=70).
How many boxes is 10 seconds on ECG?
If the entire ECG is 10 seconds, then there must be 50 large boxes (0.20 seconds times 50 large boxes). Each small box is also exactly 1 mm in length; therefore, one large box is 5 mm.
How do you read ECG rate?
Heart rate can be easily calculated from the ECG strip: When the rhythm is regular, the heart rate is 300 divided by the number of large squares between the QRS complexes. For example, if there are 4 large squares between regular QRS complexes, the heart rate is 75 (300/4=75).
How many seconds is each box on ECG?
The ECG paper speed is ordinarily 25 mm/sec. As a result, each 1 mm (small) horizontal box corresponds to 0.04 sec (40 ms), with heavier lines forming larger boxes that include five small boxes and hence represent 0.20 sec (200 ms) intervals.
How many boxes are in a 6 second strip?
A 6-second strip is made up of 30 big boxes. Each big block is 0.2 seconds in duration, so 5 big blocks is equal 1 second in total duration (.
What is the heart rate in sinus tachycardia?
Normal sinus rhythm typically results in a heart rate of 60 to 100 beats per minute. Sometimes, these electrical impulses are sent out faster than normal, causing sinus tachycardia, which often results in a heart rate of over 100 beats per minute.
What does sinus tachycardia look like on ECG?
Sinus tachycardia is recognized on an ECG with a normal upright P wave in lead II preceding every QRS complex. This indicates that the pacemaker is coming from the sinus node and not elsewhere in the atria, with an atrial rate of greater than 100 beats per minute.
Is a sinus rhythm good?
Normal sinus rhythm is defined as the rhythm of a healthy heart. It means the electrical pulse from your sinus node is being properly transmitted throughout the heart muscle. In adults, normal sinus rhythm usually accompanies a heart rate of 60 to 100 bpm.
How many small boxes is 120 ms?
The normal PR interval is between 120 – 200 ms (0.12-0.20s) in duration (three to five small squares).
How many boxes is 120 ms on ECG?
3 small squares (120ms) is abnormal, not the upper limit of nor- mal.
What is a good ECG result?
If the test is normal, it should show that your heart is beating at an even rate of 60 to 100 beats per minute. Many different heart conditions can show up on an ECG, including a fast, slow, or abnormal heart rhythm, a heart defect, coronary artery disease, heart valve disease, or an enlarged heart.
What are good ECG numbers?
The normal range of the ECG differed between men and women: heart rate 49 to 100 bpm vs. 55 to 108 bpm, P wave duration 81 to 130 ms vs. 84 to 130 ms, PR interval 119 to 210 ms vs. 120 to 202 ms, QRS duration 74 to 110 ms vs.
What is ECG normal range?
Normal intervals
Normal range 120 – 200 ms (3 – 5 small squares on ECG paper). QRS duration (measured from first deflection of QRS complex to end of QRS complex at isoelectric line). Normal range up to 120 ms (3 small squares on ECG paper).
What marks each second on an ECG?
Each second is marked by 5 large grid blocks. Thus, each large block equals 0.2 second. The vertical axis records EKG amplitude (voltage). Two large blocks equal 1 millivolt (mV).
What is the 300 rule for ECG?
The square counting method is ideal for regular heart rates. Use the sequence 300-150-100-75-60-50-43-37. Count from the first QRS complex, the first thick line is 300, the next thick line 150 etc. Stop the sequence at the next QRS complex.
