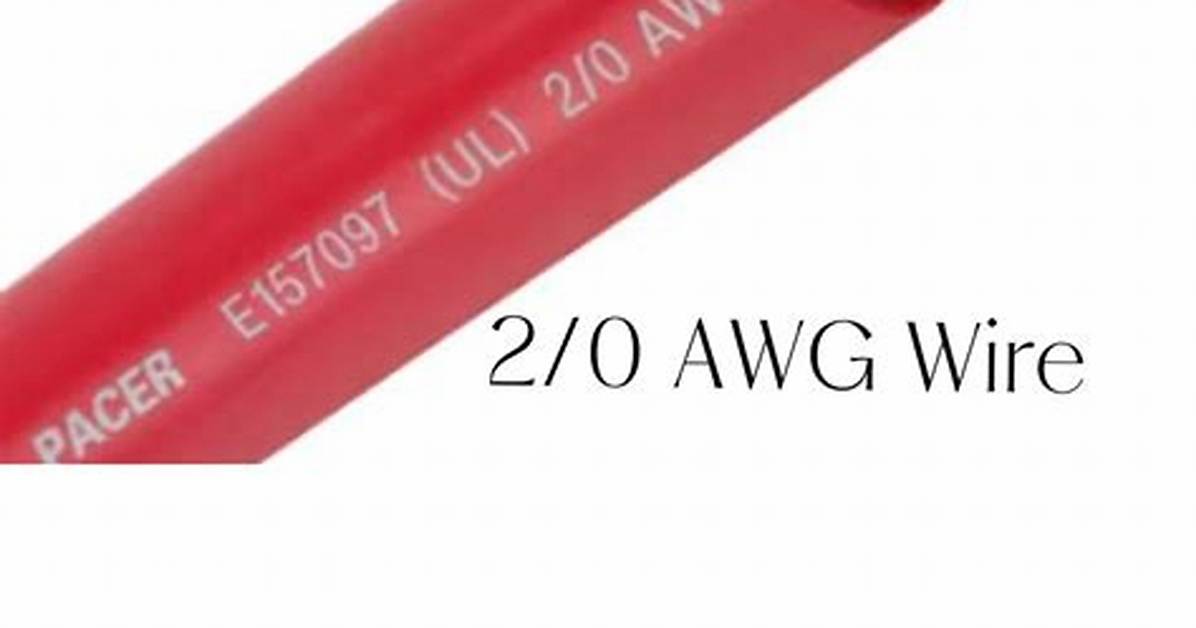

Collection: 2/0 AWG Gauge Battery Cable

2/0 battery cable can comfortably handle 200 amps at a cable length of 15 feet. The outside diameter of the cable is aproximately 0.605 inches.

What is the difference between 2 AWG and 2 0?

2 AWG will handle around 94 Amps, while 2/0 AWG will handle around 190 Amps. The length of the wire must be considered as well as the % voltage drop in order for this to be true.

What is 2 ought wire used for?

This #2/0 copper USE-2 is used to connect the transformer to the meter base and the meter base to the main distribution panel. Use to connect the transformer to the meter base and the meter base to the main distribution panel. Made in the U.S.A.

What size wire do I need for a 200 amp service?

For a 200 amp service, you’ll need: #2/0 copper wire, or. #4/0 aluminum or copper-clad aluminum wire.

What size wire is needed for 60 amps?

For 60 ampere breakers, electricians and professionals suggest using a wire size gauge ranging from 6 AWG to 4 AWG.

Whats bigger 1 0 or 2 0 wire?

1/0 battery cable is 0 AWG, whereas 2/0 battery cable is 00 AWG. The more the number of zeros indicating a cable’s American Wire Gauge measurement, the bigger the cable. So, it is accurate to conclude that a 2/0 is bigger than a 1/0.

Which is bigger 2 AWG or 4 AWG?

The bigger the AWG number, the smaller the physical size of the wire.

What is bigger 1 0 AWG or 2 0 AWG?

2/0 is bigger than 1/0.

How many amps can 1 0 wire carry?

How many amps can a 1/0 gauge wire handle? At 75°C, the 1/0 copper wire ampacity is 150 amps; essentially, the 1/0 W wire is a 150 amp wire size. At 60°C, it can handle up to 125 amps, and it can handle up to 170 amps at higher temperatures (90°C).

What is bigger than 0 gauge wire?

The larger the AWG number or wire guage, the smaller the physical size of the wire. The smallest AWG size is 40 and the largest is 0000 (4/0). AWG general rules of thumb – for every 6 gauge decrease, the wire diameter doubles and for every 3 gauge decrease, the cross sectional area doubles.

How far can you run #2 aluminum wire?

Example calcuation 2 – Aluminum Wire, 1 phase power

Cable run: 400 ft. 1 conductor per phase utilizing a 1000 kcmil Aluminum conductor installed Direct Buried will limit the voltage drop to 2.61% or less when supplying 194 amps for 400.0 feet on a 240 volt 1 phase system.

What size wire do I need for a 500 foot run?

500 Feet – a 120-volt, 20 amp circuit would require 1/0 AWG wire. A 240 volt, 30 amp circuit would require 3/3 AWG wire.
