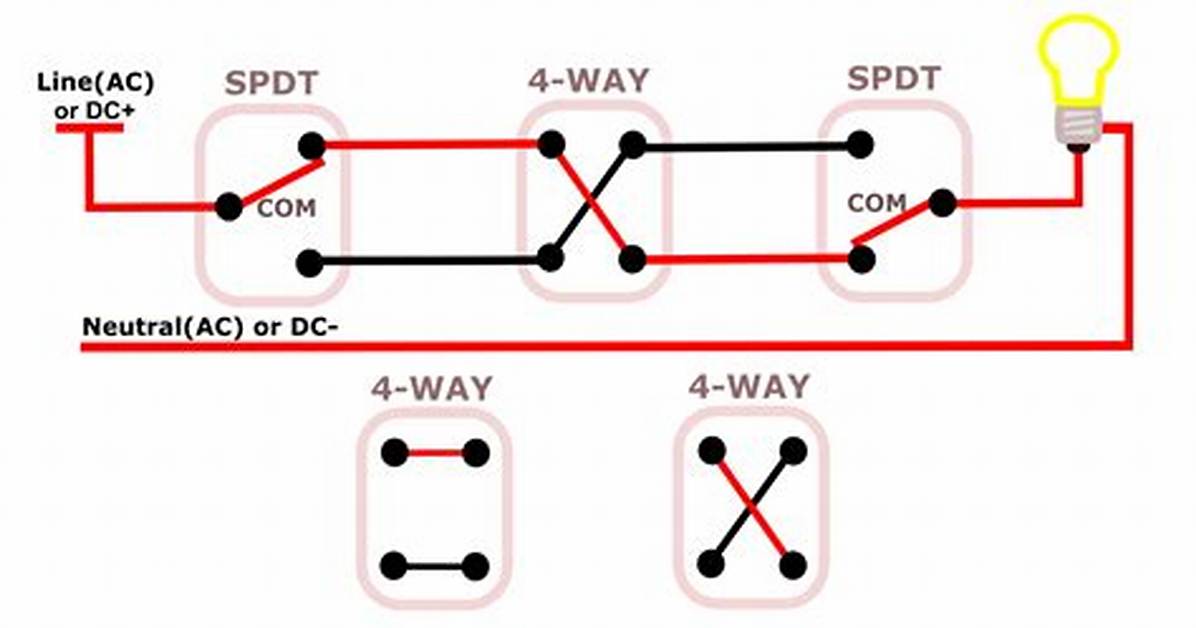

Four-way switches are used to control lighting from three or more locations. Four-way switches are used in combination with 3-way switches. There are four terminals that provide two sets of toggle positions on a 4-way switch. Each set of terminals is one of the toggle positions.
Can you use a 3 way switch as a 4-way?
A 4way switch will not work in place of a 3way. The common toggle (in), whether up or down on a 3way switch, comes in contact with both switch leg (out) terminals. A 4way switch will not accomplish this. The 4way is more like two “separate” single gang switches, they will not work in unison as one.
When should you use a 4-way switch?
4-way switch configurations are used to control lights with three or more switches. A 3-way switch is used on each end with one or more 4-way switches in between the two 3-way switches. They do not have an on/off position like single pole switches.
What is a 4-way?
Definition of four-way
1a : allowing or affecting passage in any of four directions. b : applicable to traffic from each of four directions a four-way stop. 2 : including four participants.
Is a 4-way switch double pole?
Double pole light switches, also known as a four-way switch, are two single pole switches put together. Two separate circuits are controlled by one switch. This is typically used to control a circuit from multiple locations in a series of three switches on one circuit.
Do they make 4 way dimmer switches?
While no 4-way dimmer exists, there are 3-way dimmers that you could replace one of your two 3-way switches with. You can only have one, the other switch plus the one or more 4-way switches in the middle must be toggle switches.
How many switches can be on a 3 way circuit?
3-way switches are used to control lights with two switches. These switches do not have an on/off position like single pole switches.
How do you tell the difference between a 3 way and 4-way switch?
A three-way switch has three terminals; a four-way has four. These control a light from two or three switch locations, such as at the top and bottom of a stairwell, at either end of a hallway, or in a large room with multiple entrances.
How many wires are connected to a 4-way switch?
When wiring in the 4-way switch, it is most simply described as simply cutting the two traveler wires (the two wires that go between the two 3 way switches and terminate on each switch) and putting two wires from one switch on the top two terminals of the 4-way switch, while putting the other two wires from the other
Is there a 5 way switch?
A pickup selector switch found on certain electric guitars that has five positions, and therefore allows for five combinations of pickups. This is the switch most commonly found on Fender Stratocasters and other guitars with three single-coil pickups.
What are the 4 types of switches?
The types of switches are classified into four types namely:
SPST (Single Pole Single throw)SPDT (single pole double throw)DPST (double pole, single throw)DPDT (double pole double throw)
How many 4-way switches do I need?
There is no limit to the number of 4-way switches that can be used to control lighting as long as the electrical wiring has been installed appropriately, and it isn’t that difficult.
What is a 2 way switch?
Two way switching means you can switch the same light fixture from two switches that are located in different sides of a room. Two way switches have a COM terminal as well as L1 and L2 terminals. When L1 is off L2 would be on.
