Types of standpipes in combination systems

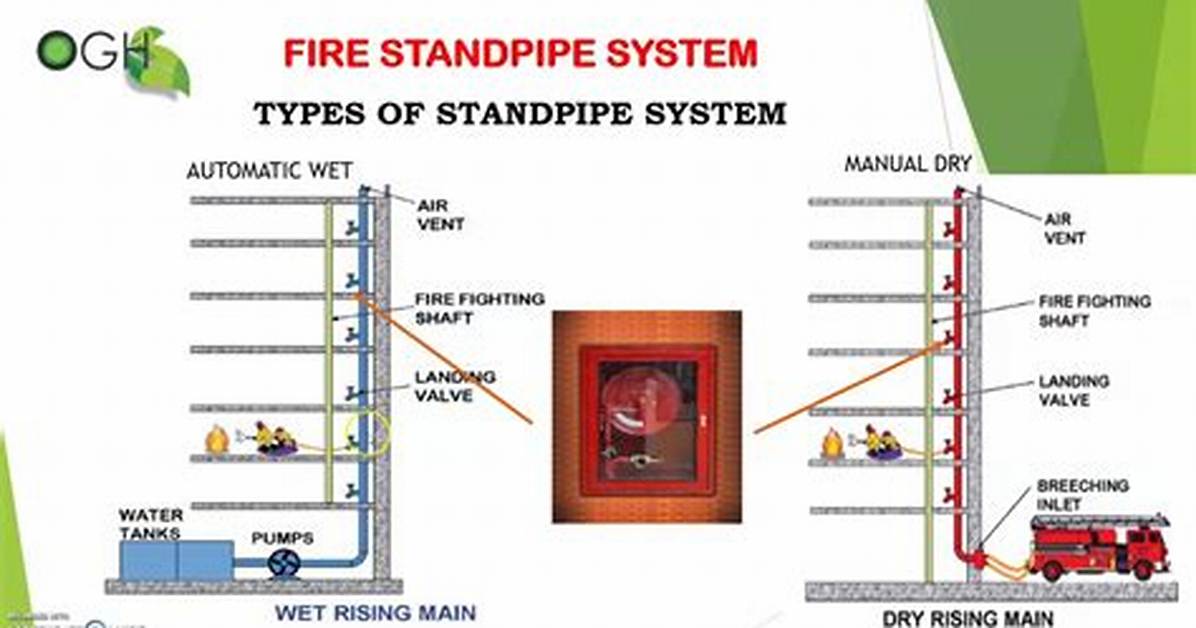

Automatic dry standpipe system.Automatic wet standpipe system.Combined system.Manual dry standpipe system.Manual wet standpipe system.Semiautomatic dry standpipe system.Wet standpipe system.
Where are standpipes located?
Dry standpipe
The standpipe extends into the building to supply fire fighting water to the interior of the structure via hose outlets, often located between each pair of floors in stairwells in high rise buildings.
How do standpipes work?
If the standpipe outlet valve is opened, it opens a valve allowing water to fill the system. Semi-automatic systems have unpressurized air. Water is introduced via a dry pipe valve that must be activated manually. The two dry systems above have a permanent water supply.
What is water standpipe?
Standpipes are portable hydrants designed to be connected to a fire hydrant in a water main to gain access to bulk water. All standpipes used in our area of operations must be metered and hired from us.
What are the three classes of standpipe systems?
Standpipes have three major classifications:
Class I standpipes serve a 2.5-inch fire hose connection for fire department use. Class II standpipes serve a 1.5-inch fire hose connection and are typically found in cabinets. Class III standpipes have both connections of Class I and II.
What is the most common type of standpipe system?
A “Class I” standpipe is the most common type of fire protection standpipe system today.
Is a standpipe a fire hydrant?
Standpipe systems are a series of pipes which connect a water supply to hose connections, basically an extension of the fire hydrant system. They are designed to provide a pre-piped water system for building occupants or the fire department.
What is the difference between standpipe and sprinkler?
Many newer buildings have a combination system which supplies the fire sprinkler system and the standpipe system, but older buildings only have standpipe systems. Standpipe systems are designed to provide fire protection water for hose lines in strategically placed locations inside the building.
What is a standpipe UK?
A standpipe is a free standing pipe which is fitted with a tap. You can easily attach this to a hydrant to get a water supply where there is no running water supply. A standpipe is a means of connecting to our water distribution network for a temporary water supply.
What do you pump a standpipe at?
The minimum pressure while flowing the required standpipe flow (500 GPM from the hydraulically most remote standpipe and 250 GPM from each additional standpipe, up to a maximum of 1000 GPM for a fully sprinklered building) shall be 100 psi at any valve outlet while flowing 250 GPM through each valve.
What is the purpose of FDC?
The purpose of the FDC is to supplement the water supply, not necessarily provide the entire sprinkler system’s demand. There are three common reasons why this additional water supply may be necessary. A closed valve on the domestic water supply leading to the sprinkler system.
What is a standpipe reservoir?
A standpipe is a ground-supported storage tank with a height that is greater than its diameter. Its design helps generate storage and pressure with a low upfront cost compared to elevated tank geometries.
What are the components of a standpipe system?
What are the components of a standpipe system? Hose stations,water supply,water-flow control valves,risers,pressure-regulating devices,fire dept connection.
How does a standpipe piezometer work?
The groundwater pressure pushes the water into the standpipe until the level of water inside the standpipe (h) is equal to the piezometric level (pore water pressure) in the ground at the elevation of the porous filter. That is how the piezometer water level is used and monitored.
How many different types of standpipe systems are there?
There are three classes of standpipe systems, they include Class I, Class II, and Class II.
What is a landing valve?
The landing valve is considered a core part of the hose system that works as a manual stop valve allowing you to completely control your firefighting system. To activate the water flux of the firefighting system, you simply turn the landing valve handle counterclockwise. Water pressure matters for high buildings.
