Voltage is the same across each component of the parallel circuit. The sum of the currents through each path is equal to the total current that flows from the source.
Does current change in parallel?

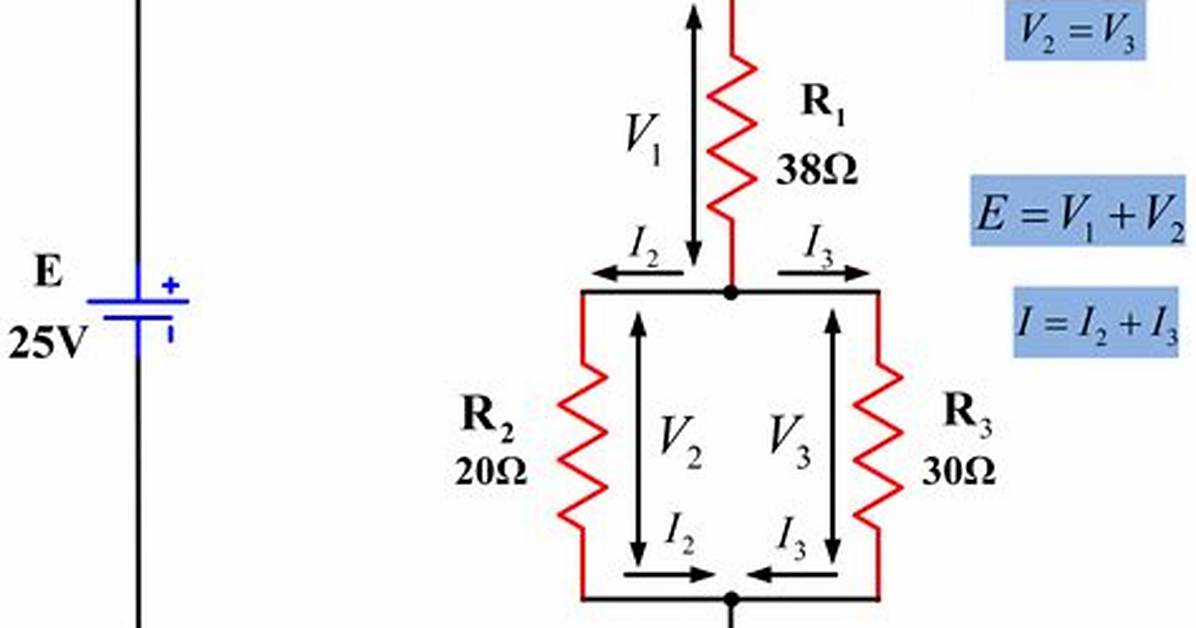

Current in parallel
If the resistance of any component in a parallel circuit changes, this will change the value of the current in that loop and the total current supplied by the battery. It does not affect the current in the other loop.
How is current divided in a parallel circuit?
When two resistors are connected in a parallel circuit, the current in any branches will be a fraction of the total current (IT)). If both the resistors are of equal value, then the current will divide equally through both the branches.
How do you find current in a circuit?
Ohms Law and Power
To find the Voltage, ( V ) [ V = I x R ] V (volts) = I (amps) x R (Ω)To find the Current, ( I ) [ I = V ÷ R ] I (amps) = V (volts) ÷ R (Ω)To find the Resistance, ( R ) [ R = V ÷ I ] R (Ω) = V (volts) ÷ I (amps)To find the Power (P) [ P = V x I ] P (watts) = V (volts) x I (amps)
Does current decrease in parallel?
As more and more resistors are added in parallel to a circuit, the equivalent resistance of the circuit decreases and the total current of the circuit increases.
Is current lower in parallel?
When a circuit is wired in parallel, current and resistance start to do some strange stuff that you might not expect, here’s what you’ll want to remember: In parallel circuits, as you increase the resistance, you’ll also increase the current, but your resistance gets cut in half as a result.
What happens to current in parallel circuit?
The current in a parallel circuit splits into different branches then combines again before it goes back into the supply. When the current splits, the current in each branch after the split adds up to the same as the current just before the split.
What is the parallel circuit?
A parallel circuit comprises branches so that the current divides and only part of it flows through any branch. The voltage, or potential difference, across each branch of a parallel circuit is the same, but the currents may vary.
What is current in an electrical circuit?
Electrical. Current is the rate at which electrons flow past a point in a complete electrical circuit. At its most basic, current = flow. An ampere (AM-pir), or amp, is the international unit used for measuring current.
What happens to current in series?
The electric current in a series circuit goes through every component in the circuit. Therefore, all of the components in a series connection carry the same current. A series circuit has only one path through which its current can flow.
Does current ever change in a circuit?
Explanation: Current (I) remains constant throughout a series circuit. This is because the resistors in a series connection do not change or decrease the current flowing through them.
Does current increase in a series circuit?
As the number of resistors in a series circuit increases, the overall resistance increases and the current in the circuit decreases.
