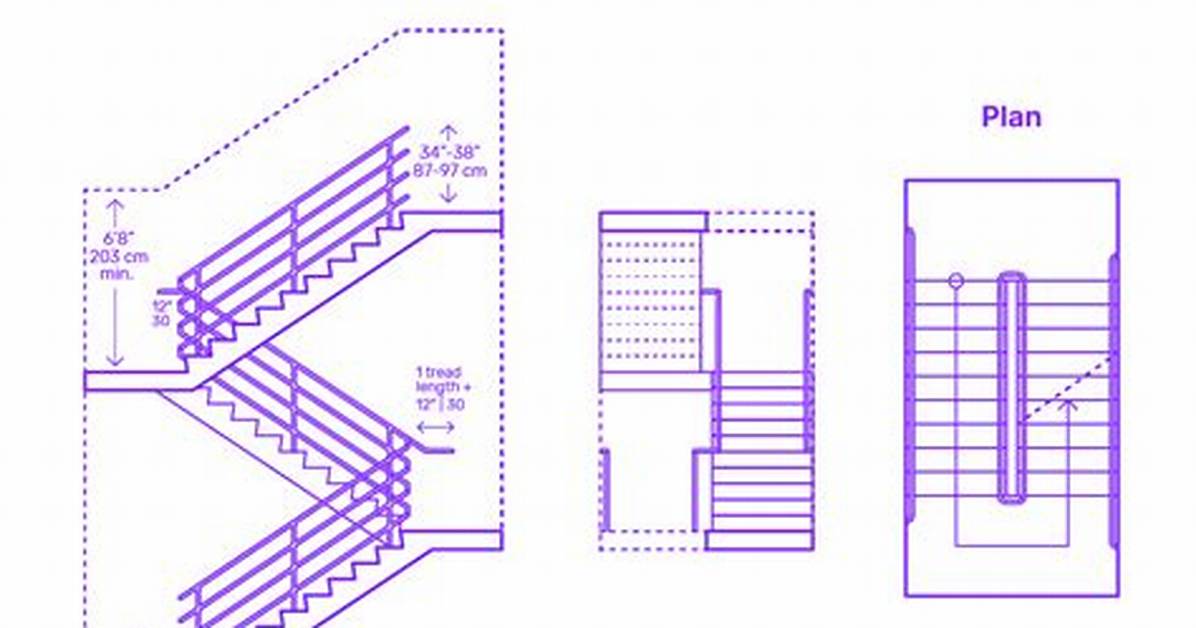

Stairs must be at least 36″ wide with a minimum headroom of 6′ 8″ Risers must have a maximum height of 7 ¾” and open risers must be 4″ high or shorter. Each tread in a stair must have a minimum depth of 10″. The treads of curved staircases must not be less than 6″ deep.
What is the standard dimension of a stair riser?
Standard size of Riser of stairs:- size of Riser Defined by their vertical height, standard height of riser shall be 7 inches (180mm) for residential and 6 inches (150mm) for commercial building and other standard one size such as 7.5″, 6.5″, 5″, 5.5″ & 6″ high also applicable in normal residential, educational,
How do you calculate space for stairs?
Measure the distance from the floor at the bottom of the stair location to the floor at the top of the stair location. Divide the total rise by the estimated unit rise height. Divide the total rise by the total number of risers. Multiply the number of risers by the width of your pre-selected treads.
What is a good rise and run for stairs?
The OSHA standard for rise and run of stairs is maximum 9.5″ rise and minimum 9.5″ run (tread depth).
What is a comfortable stair angle?
Stair codes and guidelines prefer an angle of around 37° for normal stairways (the green area in our illustration) and around 7° for ramps (the yellow area in our illustration). Steeper slopes or angles are permitted for stepladders in certain applications as you can see in the illustration.
What goes first riser or tread?
When installing stairs, install the riser first, and then the tread. Start at the bottom of the stairs and work your way up, alternating risers and treads. The back of each tread will sit flush against the riser. Treads and risers fasten with construction adhesive to the subfloor.
What is the best height for steps?
Riser Heights
In the United States, the step height standard should be between 7 or 7 ¾ inches at the most, and no less than 4 inches. You should follow other measurements if given by local building codes.
What is the minimum tread depth for stairs?
Staircase Tread (Run) Depth: 10 to 11 Inches, Minimum
The tread depth is the distance from the front edge, or nosing (a tread projection that overhangs the riser below), of one step to the front edge or nose of the next step, measured horizontally. This distance must be at least 10 inches.
What are the requirements of a good stair?
Following are the General Requirements of a Good Stair:
Location of Staircase: Staircase should be located such that it can be easily accessible from different rooms of the building. Width of Stair: Length of Flight: Pitch of Stair: Head Room: Balustrade & Railings: The Dimensions of Stair: Winders:
Does the landing count as a step?
Does the landing count as a step? Yes it does. It amazes me how many people like to argue this one. Remember that when counting stairs, you are counting how many times you have to lift your foot.
