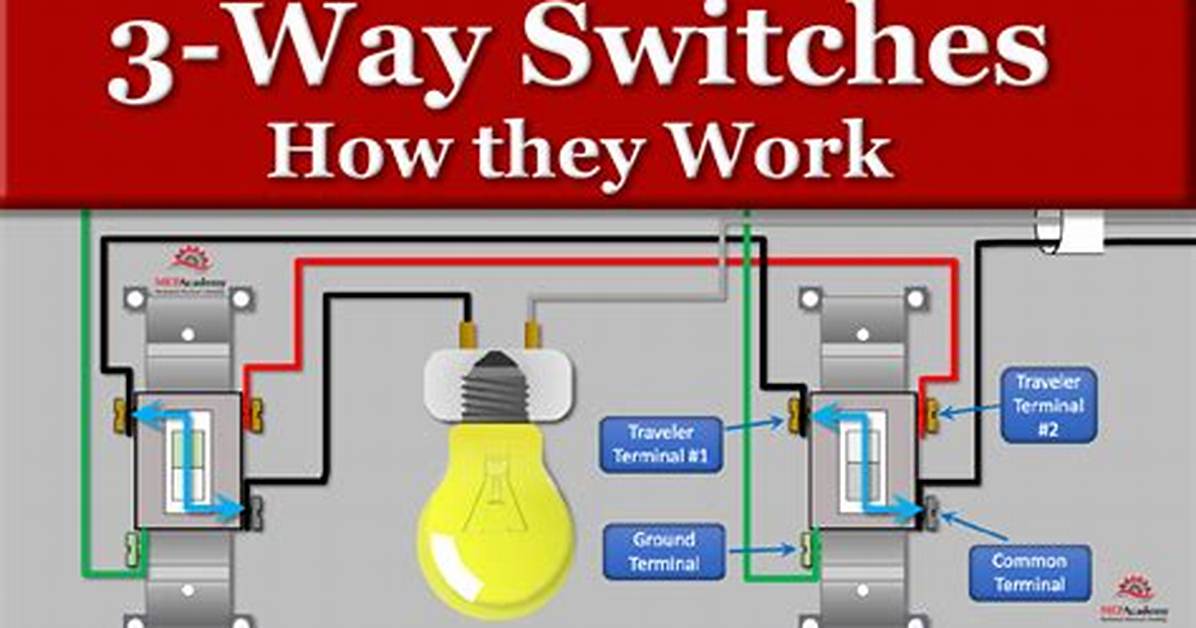

A 3-way switch is larger than a single pole switch and has three screw terminals for wiring connections, plus a ground. Two of these take traveler wires that go from one switch to the other. For the third terminal, one switch is connected to the hot supply wire while the other switch is joined to the light.
What does a 3-way switch allow you to do?
A 3-way switch is one that allows you to control a ceiling light (or other electrical fixture) from two separate locations. Common scenarios would be 3-way switches located at both the top and bottom of a stairway, or having 3-way switches next to doors in a room with two entry points.
What is the difference between a 2 way and a 3-way switch?
In a normal switch, the two terminals are either connected (as shown) or disconnected. When they are connected, the switch is “on.” In a three-way switch, the top terminal connects to one or the other of the bottom two terminals.
When should you use a 3-way switch?
Three-way switches are commonly used to control a light fixture from two different locations. For example, a long hallway or stairway might use a pair of three-way switches at each end so that lights can be turned on when approaching one end of the hall or stairway, then shut off from the other end.
Can I use a 3-way switch as a single pole?
Yes it can work. 3-way switches are spdt (single pole double throw) with 3 screw terminals, and regular switches are spst (single pole single throw) with 2 screw terminals. Just pick the correct two contacts and you are good to go. .
Can I use a 3-way switch as a 2 way?
To change a three-way switch to a two-way switch, deactivate and remove the extra three-way switch. A three-way wall switch is single pole double throw (SPDT) with three connection wires and is typically wired with 12/3 or 14/3 cable between the two switches.
What are the 4 types of switches?
The types of switches are classified into four types namely:
SPST (Single Pole Single throw)SPDT (single pole double throw)DPST (double pole, single throw)DPDT (double pole double throw)
Are all 3-Way switches the same?
Remember that 3-way switches always appear in pairs. The two switches can come before or after the light fixture in the circuit, or you can have one switch on each side, with the fixture in the middle. The most important wire to get right is the one connected to each switch’s common screw terminal.
Do you need a special switch for a 3-way switch?
The key ingredient is a special type of switch called a “three-way” switch. You’ll need two of them, one to replace the existing switch and another for the new switch location. With these, you’ll have the convenience of turning a light on and off from two spots.
How can you tell if a switch is 4 way or 3-way?
A three-way switch has three terminals; a four-way has four. These control a light from two or three switch locations, such as at the top and bottom of a stairwell, at either end of a hallway, or in a large room with multiple entrances.
Can you make a 3-way switch with 2 wires?
Question: Can I use a 3-way switch with just two wires? Answer: No. There must be three wires between the two switches. You CAN use the switch with only two wires, but it will act as a regular switch, not a three-way switch.
Is a 3-way switch always hot?
Black wire: This is a hot wire that carries electricity from the power source to the first switch in a typical 3-way setup. It’s also called the “common wire” or the “line wire.” Unless the breaker is off, this black wire is always hot.
How many switches do you need to construct a three-way switch circuit?
3-Way Switch – a 3-way switch has 3 terminals: 2 brass terminals for the 2 traveler wires, and 1 common (black) terminal for the common wire. A 3-way switch circuit is always comprised of two 3-way switches that control light(s) or device(s) from two different locations.
What happens if you wire a 3-way switch wrong?
Usually when a 3-way switch fails, lights can be toggled on and off at one switch, but not the other. If one of the two 3-way switches toggles the light(s) on and off, the other 3-way switch has probably failed.
