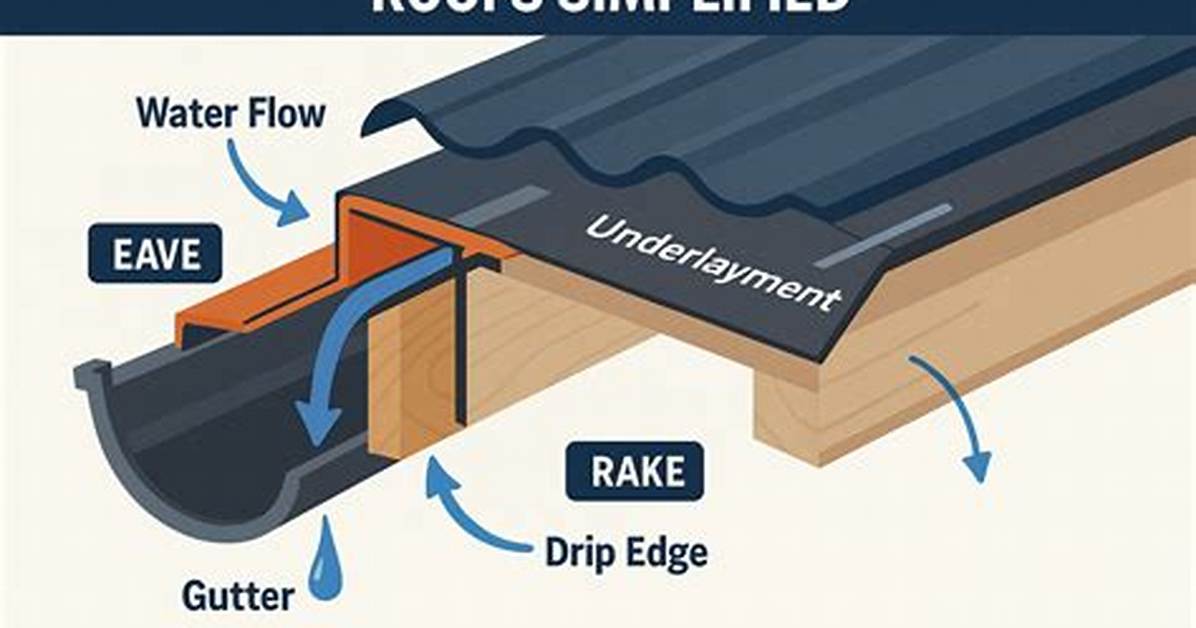

Does Drip Edge Go Over or Under Felt? According to most building codes and manufacturer recommendations, the drip edge should be installed beneath the underlayment along the eaves of the roof. But over the underlayment along the rake edges of the roof.
How much should I overlap drip edge?
Adjacent drip edge pieces should be lapped minimum 2 inches. Asphalt shingles should overhang the exterior edge of the drip edge by ¼ to ¾-inch.
Do you install drip edge before fascia?
A metal drip edge will help protect the sheathing under the roof, but if it’s installed too closely to the fascia board, it can still cause water to be drawn into the fascia. The best installation method is to leave a gap between the drip edge and the fascia board, about the width of a finger.
Do you have to remove gutters to install drip edge?
Ideally, gutters need to be removed during the roofing process. According to roofing experts, removing the gutters offers you a better understanding of the scope of potential problems with the roof. Also, with the gutters off, you can install the roof properly with drip edge flashings and seal the edges cleanly.
Does drip edge go around entire roof?
Drip edge is installed around the whole perimeter of the roof. It is used to hold the underlayments down and create a watertight seal around the edge of the roof. Only the face of the metal is seen and is usually just white one to one and half inch stripe located right under the shingles and above the fascia.
Is drip edge on roof necessary?
Without a drip edge, water may end up beneath the shingles and may cause damage to various parts of the home. Though your home may not have originally had a drip edge installed, drip edges are now required by most building codes across North America to protect homes from damage.
What goes first drip edge or ice and water?
Ice and water protector needs to be installed directly onto the roof deck after you have placed the drip edge at the eave. (The drip edge will be installed over the ice and water protector and other underlayments at roof rake edges.)
Can you install drip edge after shingles?
The most popular time to install a drip edge is when new shingles are installed. However, the drip edge can be installed at any time. The materials involved include: a ladder, a flat pry bar, a hammer, tin snips, eave stripping, and galvanized roofing nails.
How do you corner a drip edge?
How to Cut Drip Edge Corners
Step 1: Start working from one corner of the roof.Step 2: With the help of tin snips, prepare to cut the four corners of the roof.Step 3: Make a first cut at the top of the profile.Step 5: Make a second cut at the bottom edge.
Does fascia go on before shingles?
If your roofers are replacing your fascia board as part of a full roof replacement, then they will install the new shingles before they address the fascia. There is no way to replace the fascia board without removing the gutters, as the gutters are mounted to the board.
Does the gutter go behind the drip edge?
It is recommended that gutters are placed under or ‘behind’ the drip edge of your roof. A drip edge refers to a component that hangs over the roof and has an outward projecting lower edge.
How much should shingles overhang drip edge?
Shingles should not extend more than 3/4” (19 mm) past the drip edge. If shingles overhang the edge of the roof by more than 3/4” (19 mm), then they are not supported and may crack and break off. In addition, the wind resistance at the roof edge may be compromised.
What is the difference between drip edge and gutter apron?
The most obvious attribute that distinguishes a gutter apron from a drip edge is the fact that a gutter apron is more of an L-shaped metal rather than a T. A gutter apron also comes in metal strips with aluminum and steel sheets. Like drip edge, a gutter apron may be available in many different colors.
Can you add drip edge to existing roof?
Make sure the outer edge extends over the gutter. If it doesn’t, pull the drip edge out slightly from under the shingles. Secure the drip edge with roofing cement. Apply a continuous bead of cement along the top of the drip edge, then press down on the shingle.
