Elecbrakes makes it easy to install an electric brake controller. All you need is your electric brake controller kit, an electric drill, a 2-3mm drill bit, a No.
Where does a trailer brake controller plug into?
Installing Plug and Play Brake Controller
Mount the electric brake controller onto the trailer draw bar. Plug the electric brake controller into the trailer cable and the tow car socket.
Does a 7 pin trailer plug control brakes?
If you’re towing a larger trailer with electric brakes or reverse lights, you’ll want a seven-pin connector. Even if your tow vehicle can easily pull a larger trailer, stopping it can do a number on your vehicle’s brake system.
Which trailer brake controller is best?
Best Trailer Brake Controllers For 2022
Tekonsha P3 Model 90195 : Best Overall.Reese Towpower Model 8508211 : Best Budget Trailer Brake Controller.Tekonsha Primus IQ Model 90160 : Easiest Installation.Reese Towpower Brakeman Model 74642 : Best For Small Trailers or Light Loads.
Which wire is for trailer brakes?
5-Pin Flat Connector
If a trailer has brakes, then it needs a connector with at least 5 pins. The 5th pin, a blue wire, gives power to operate (or disable) the trailer brakes. Traditional Trailer + with Brakes = Use a 5-Pin Connector.
How does a trailer brake controller work?
Consisting of a battery mounted on the trailer and a cable connecting the trailer to the vehicle, the breakaway system is activated if the trailer breaks free, pulling the cable out of its plug with it. A switch will then trigger the battery and apply the trailer brakes to slow the trailer down.
Where is the best place to mount a brake controller?
Find a suitable mounting location for the brake controller. On most vehicles, particularly large trucks and SUVs, the best place tends to be below and off to the side of the steering wheel. Here the controller will be easily visible but out of the way. It can also be mounted above the dash.
Are portable electric brake controllers legal?
Are Portable Brake Controllers Legal. Electric Brake Controller Laws Electric brakes are commonly used on caravans and trailers over 750kg but are legally required (*limited alternatives maybe available) on all caravans and trailers with a GTM over 2,000kg.
How do you wire a trailer with electric brakes?
Run a the two conductor wire to each brake, and hook to the two wires on the brake. I start at the front, and I run the wire from the front truck plug, back to one brake, connect the wire, then continue across the trailer to the other brake, and connect.
How do I know if my truck has a brake controller?

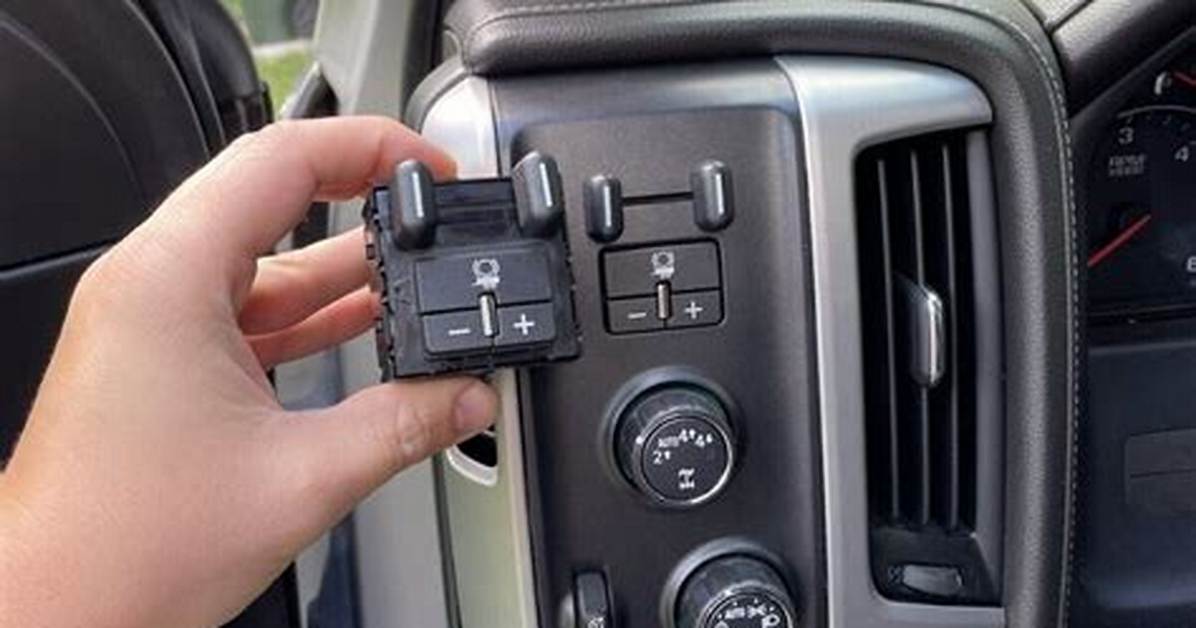

How Do I Know If My Truck Has a Brake Controller? Most trucks come with a brake controller installed by the manufacture (OEM). The brake controller usually has an image of a trailer and you would see a dial and two small knobs.
What should trailer brake gain be set at?
How to Set the Gain on a Trailer Brake
Move the gain control to the 50 percent mark or the center position on the slider.Test the setting by towing the trailer on a level, dry, paved road at approximately 20 mph.Push the manual override button.If the trailer brakes do not grip firmly, increase the gain.
What happens if you don’t have a trailer brake controller?
No, you cannot tow a trailer with electric brakes without a brake controller. A brake controller is an electronic device through which the driver of the towing vehicle can control the braking power of the trailer from inside the vehicle.
Are all 7 pin trailer plugs the same?
Yes, there is only one type of 7-way blade connector.
What is the difference between 4 pin and 7 pin trailer plug?
The difference between the 4 pin and 7 pin connectors isn’t much. The 4 pin is to connect break lights, turn signals, emergency lights. The 7 pin connector is the same but adds electrical input for a trailer break, which isn’t available on the Highlander and is really only used for very heavy trailer loads.
