The F-channel is a thin vinyl strip that is sold where siding is sold. The upside down F creates a shelf for the soffit to slide into and rest on. The F channel can be easily confused with the J-channel that is used to cover the ends of the vinyl at the corners of the house and around windows.

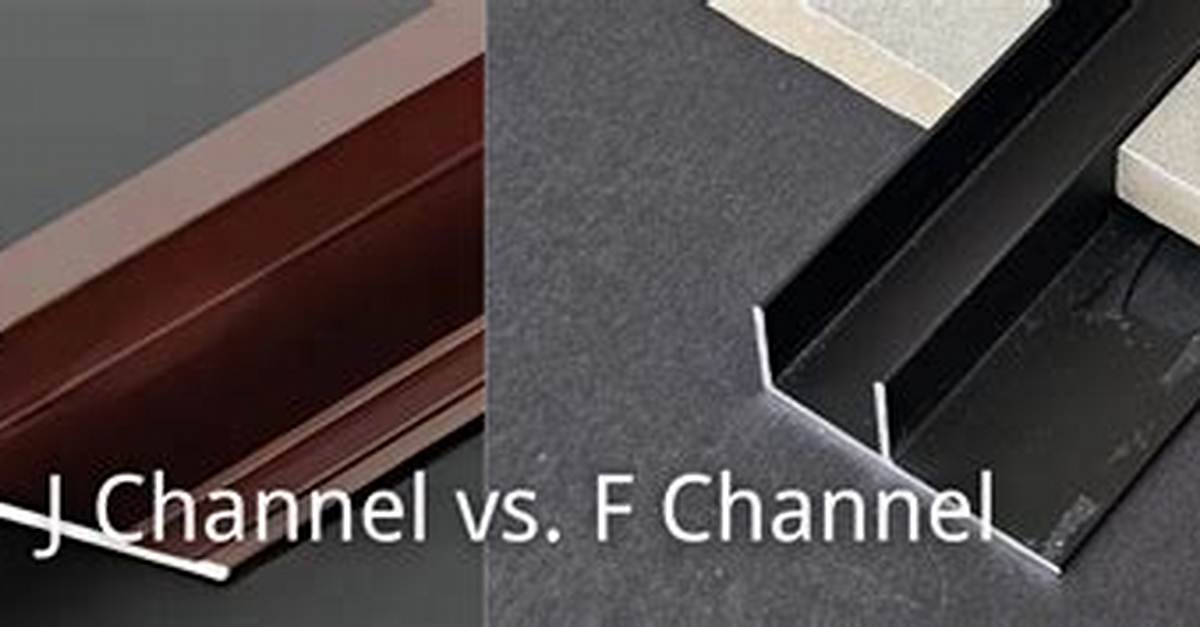

What is the difference between F Channel and J channel?
Typically, builders prefer F channel for soffit, since it’s designed for the purpose. Because it’s crafted to suit the soffit, it doesn’t take as long to install. If you choose J channel, you’ll have to install twice as many pieces, both to hold up the soffit and to cover the edges.
Where do you install F channel?
Set an F-channel against the fascia’s bottom edge. The groove should open toward the house and when the fascia is in position, it should match the height of the groove of the F-channel nailed to the house. Hammer nails through the F-channel groove’s top lip and into the fascia every 12 inches.
Can you use J channel instead of F Channel?
If no F-channel is available, J-channel can be modified to create F-channel. Simply cut slots (as shown in figure 5) in the nail flange area where it would be nailed to the wall. After cutting the nail flange, bend the flange back and nail to the wall.
What is H channel used for?
The H-Channel joins two soffit panels, or can be used as transition between two siding sections.
Can you use F channel for soffit?
As a contractor, we’re sure you’ll agree — you will install soffit material on almost every home. If you are not installing wood or fiber cement, then you will be using F-channel or J-channel to install vinyl or aluminum soffit.
How do you do nail F channel?
Hold the first strip of F-channel against the siding along the top edge of the chalk line. Position the F-channel upside-down, with the slot facing the F-channel that is nailed to the fascia board. Drive nails through the slots in the F-channel and into the side of the house every 6 to 12 inches.
What is soffit and fascia?
The soffit helps regulate your home’s temperature, allowing your roof to “breathe.” Cool, dry air is drawn into the soffit vent, and hot moist air is forced out of roof exhaust vents. The fascia is the attractive board along the side of the overhang and the roof that helps your roof appear finished.
What is Undersill used for?
The undersill trim is installed under every window above the ground line. It conceals the top edge of the vinyl siding and is also used at the soffit line.
How do you fasten aluminum soffit?
Begin installing aluminum fascia at the center of each length by pushing it up snug to the bottom of the soffit panels. Nail it, then work your way in both directions, driving nails every 16 in., placed about 1 in. from the top and bottom. Overlap joints 1 to 2 in.
How do you do vinyl siding?
Vinyl Siding Installation Tips
Allow for Expansion and Contraction. Choose the Right Nails. Don’t Drive the Nails Tight. Center the Nails in the Vinyl Siding Slots. Keep the Nails Straight and Level. Don’t Face-Nail. Never Pull Siding Taut When Nailing. Space the Nails Properly.
What is J trim?
J Trim is used to cap raw panel edges where run-off is not a problem. Most commonly, j trim metal is used to cap the top edges of skirting, the top and sides of doors, the bottom and sides of windows, and in many cases the top of windows for aesthetics and continuity.
Where do you nail vinyl soffit?
To install the soffit:
Nail an F-channel to the wall every 6 to 12 inches (15.2 to 30.5 centimeters), making sure the nails are centered within the channel’s nail slots.Attach an F-channel to the bottom outer edge of the fascia board.Measure the distance between the channels.
Does soffit need to be nailed?
Do not nail tightly. Install the remaining panels. When cutting the last panel of the first course, be sure to allow room for expansion. For areas where more than one panel length is needed, use a double channel lineal or back-to- back J-channel.
What is H Mold?
Trim Purpose
Flannery’s Siding H-Mold is a trim for siding that creates a “flat-face” reveal over two adjoining siding pieces. The Siding H-Mold is an important part of siding products that might require a relief to the expansion and contraction of the siding.
What is H molding used for?
Features: Used to splice butt joints of plywood soffit systems.
What is H-channel used for in vinyl siding?
H-channel — a siding accessory that joins two soffit panels, or used as transition between two siding sections.
