When you’re hanging a chandelier or any other ceiling light, first find the 3 wires coming out of the hole in the ceiling where the light will go. Recognize that the black wire is the positive one, the white wire is the negative one, and the green wire is the ground.

Is a green wire hot or cold?

US AC power circuit wiring color codes

The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active.

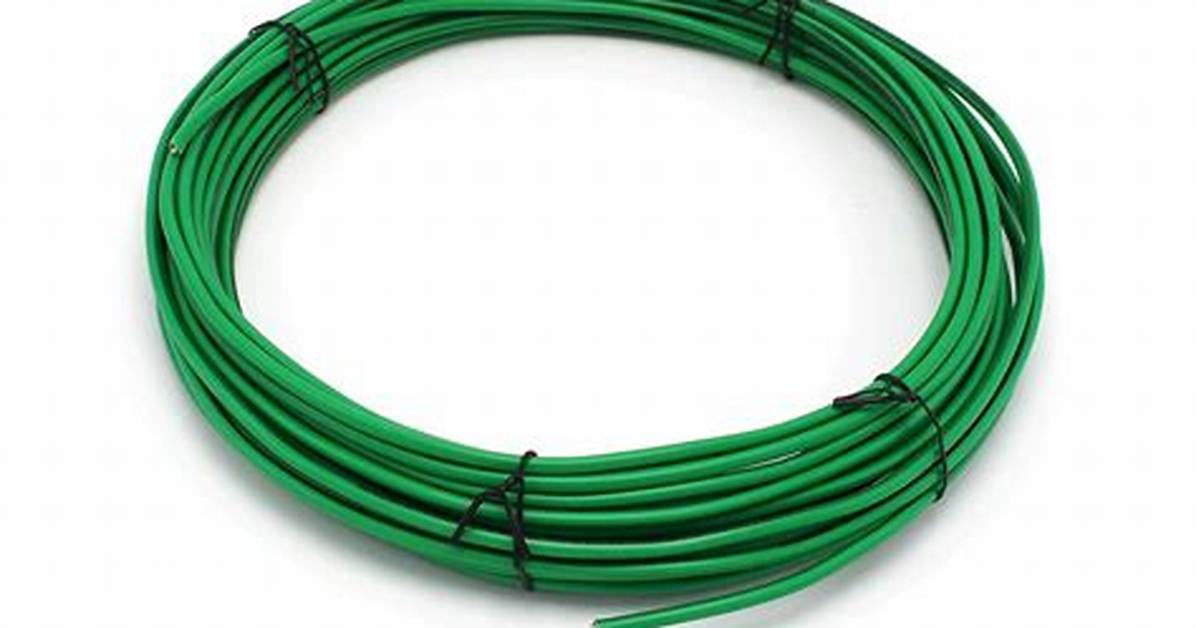

What wire is the green wire?

According to Mark Dawson, chief operating officer of Mister Sparky, “green insulated wires are used for grounding.” Green is the most common ground wire color, but “green-yellow” (green wire with a yellow stripe) and “bare” wire (copper wire without colored insulation) can also be used.

Is green the live wire?

In situations where both wiring systems are present, remember that: The earth wire will be green and yellow (or sometimes bare in old systems). The live wire is brown in new systems and red in old systems. The neutral wire is blue in new systems and black in old systems.

Can a green wire be hot?

Blue and yellow wires are sometimes used as hot wires and as travelers, green wires (and bare copper wires) are ground wires, and white and gray wires are neutral.

Can I use green wire for power?

Never use a green wire for any purpose other than for grounding, as this may pose a serious threat of electrocution for you or a professional working on your home’s electrical system.

Can I connect the green wire to the white wire?

You cannot connect the green wire to the white wire. The green wire is the grounding wire. It provides a path that electricity can follow to the earth. If a malfunction occurs, the grounding wire will defend against electrical shocks.

What do wire colors mean?

Black wires are hot wires that run to the electrical outlet from the switch. Red wires are hot wires common in a 240-volt outlet or when a wall switch controls the outlet. Blue and yellow wires are hot wires for ceiling fans and three- or four-way switches. White or gray electrical wires are neutral wires.

What Colour wire goes to L and N?

The N is for the neutral side or the white wire, and the L is for the load side, the black wire.

What does a green wire mean?

Green: The green wires are the grounding/earthing wires in the circuit. The green wire can be connected to another green wire only. The grounding wire is not meant for lights or fans and is used mainly for socket purposes such as in the case of AC’s, geysers and other heavy load appliances.

What happens if you do not connect the ground wire?

The appliance will operate normally without the ground wire because it is not a part of the conducting path which supplies electricity to the appliance. In fact, if the ground wire is broken or removed, you will normally not be able to tell the difference.

Do I need to connect the green wire?

The green is the Ground it needs to be connected to the bare wire in the box. If you don’t have a bare “ground” wire just put a wire nut on the green.

What are the 3 electrical wires?

The electric power line enters our house through three wires- namely the live wire, the neutral wire and the earth wire.

How do you tell which wire is live and which is neutral?

Identify the neutral wire in the fixture by looking at the wires. In most modern fixtures the neutral wire will be white and the hot wire is red or black. In some types of fixtures, both wires will be the same color.

What Colour is 3 core and earth?

3 Core and Earth Cable

The internal 3-core and earth electrical cable colours comprise a live brown wire, a neutral grey wire, a green/yellow protective earth wire and an additional black conductor which we have discussed as the live line 2 wire.

How can you tell which wire is hot neutral or ground?

Neutral wires should be white. However, if you see a white wire with electrical tape on it, that may indicate that it’s being used as a hot wire. And ground wires are often plain copper, but the ground wire color can be green. It’s also possible to have some other colors may come into play depending on the system.

What is the color code for 3 phase wiring?

The color code for AC power wiring is similar to the code used in the United States: Phase 1 – Red. Phase 2 – Black. Phase 3 – Blue.
