When writing data (bit sequence), we add a control bit set to 0 or 1 after each byte. If within a byte, the bits at 1 are even in number, the additional bit will be set at 0. If the bits at 1 are odd, we add a bit at 1.
What is even and odd parity bit?
Parity: Parity of a number refers to whether it contains an odd or even number of 1-bits. The number has “odd parity”, if it contains odd number of 1-bits and is “even parity” if it contains even number of 1-bits.
What is 3 bit parity?
3 bit Even Parity Generator:
Let A, B, and C be input bits and P be output that is even parity bit. Even parity generates as a result of the calculation of the number of ones in the message bit. If the number of 1s is even P gets the value as 0, and if it is odd, then the parity bit P gets the value 1.
What is parity bit in DBMS?
A parity bit adds checksums into data that enable the target device to determine whether the data was received correctly. An additional binary digit, the parity bit, is added to a group of bits that are moved together.
What is parity bit in Ascii code?
ASCII uses 8 bits to represent characters. Actually, only 7 bits are used to uniquely define the character and the 8-th bit (called the parity bit) is used for error detection. When used, the value of the parity bit depends upon the numbers of 1’s in bits 0-7.
What if parity bit is flipped?
But as you mentioned, if only 1 parity bit is flipped it means the parity is in error. For a data bit to be in error, 2 parity bits need to be flipped.
What is even parity bit?
In even parity, the number of bits with a value of one are counted. If that number is odd, the parity bit value is set to one to make the total number of ones in the set (including the parity bit) an even number.
What is parity in RAID?
Parity computations are used in RAID drive arrays for fault tolerance by calculating the data in two drives and storing the results on a third. The parity is computed by XOR’ing a bit from drive 1 with a bit from drive 2 and storing the result on drive 3 (to learn about XOR, see OR).
What is a 4 bit parity checker?
Even Parity Checker
These 4 bits are applied as input to the parity checker circuit, which checks the possibility of error on the data. Since the data is transmitted with even parity, four bits received at circuit must have an even number of 1s. If any error occurs, the received message consists of odd number of 1s.

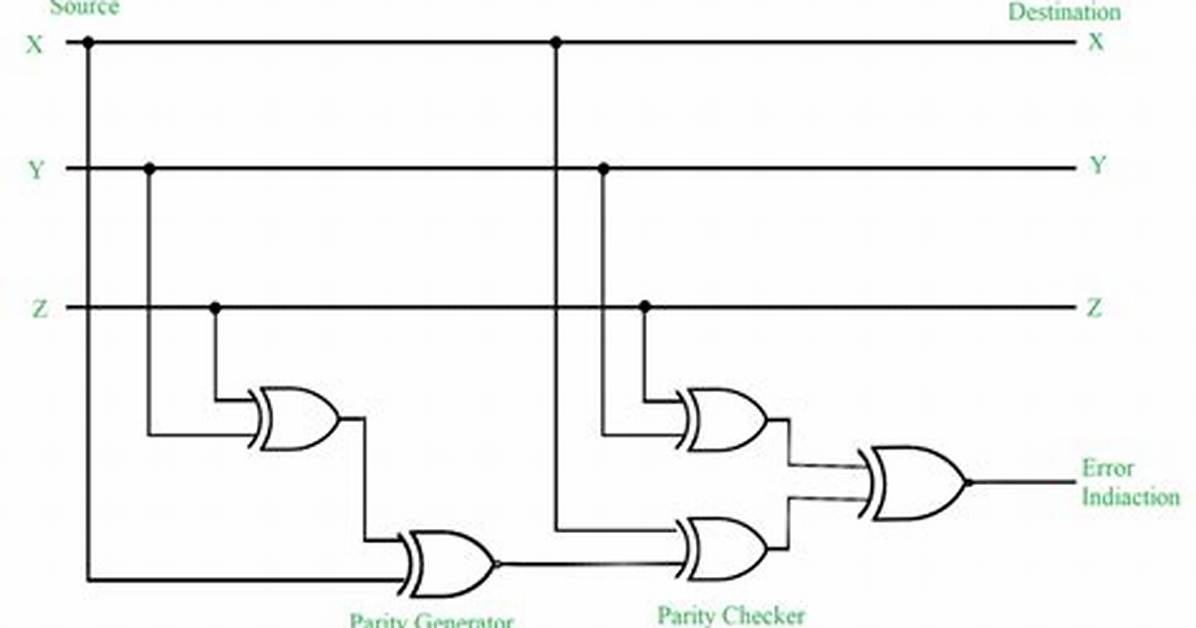

Which gate is used for parity checking?
XOR gate design: A parity checker is designed by using XOR gates on the bits of the data. An XOR gate will output a “0” if bits are similar, or a “1” if the bits differ. This can also be interpreted as checking if two bits contain an even or odd amount of “1”s.
What is checker circuit?
It is a logic circuit that checks for possible errors in the transmission. This circuit can be an. even parity checker or odd parity checker depending on the type of parity generated at the. transmission end. When this circuit is used as even parity checker, the number of input bits.
Which RAID is best?
The best RAID configuration for your storage system will depend on whether you value speed, data redundancy or both. If you value speed most of all, choose RAID 0. If you value data redundancy most of all, remember that the following drive configurations are fault-tolerant: RAID 1, RAID 5, RAID 6 and RAID 10.
What is RAID 5 striping?
RAID 5. RAID 5 is disk striping with parity. With this level of RAID, data is striped across three or more disks, with parity information stored across multiple disks. Parity is a calculated value that’s used to restore data from the other drives if one of the drives in the set fails.
What do you mean by parity checking?
parity check. noun. a check made of computer data to ensure that the total number of bits of value 1 (or 0) in each unit of information remains odd or even after transfer between a peripheral device and the memory or vice versa.
Where is a parity bit usually placed in a string of bits?
A parity bit is a bit that is added as the leftmost bit of a bit string to ensure that the number of bits that are 1 in the bit string are even or odd.
How are parity bits used for error detection?
An error detection code is a binary code that detects digital errors during transmission. A famous error detection code is a Parity Bit method. Parity Bit Method : A parity bit is an extra bit included in binary message to make total number of 1’s either odd or even.
What is the use of parity bit in UART?
The parity bit is a way for the receiving UART to tell if any data has changed during transmission. Bits can be changed by electromagnetic radiation, mismatched baud rates, or long-distance data transfers.
