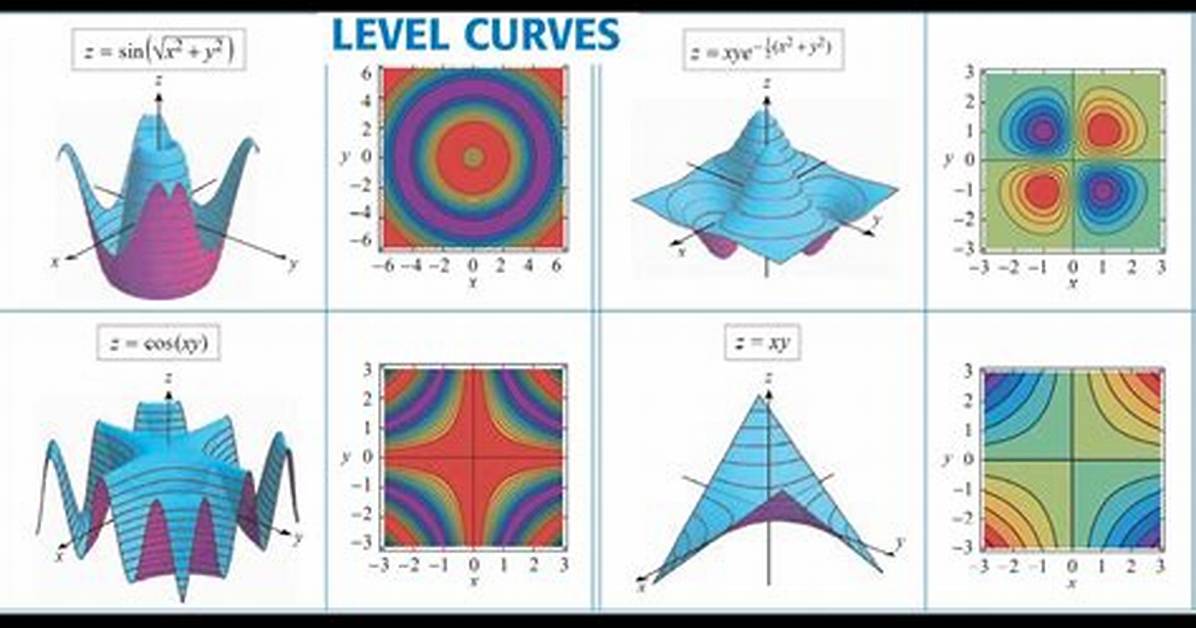

A level curve is simply a cross section of the graph of z=f(x,y) taken at a constant value, say z=c. A function has many level curves, as one obtains a different level curve for each value of c in the range of f(x,y).

How do you determine level curves?

The level curves of the function z=f(x,y) z = f ( x , y ) are two dimensional curves we get by setting z=k , where k is any number. So the equations of the level curves are f(x,y)=k f ( x , y ) = k .

What do level curves tell us?

The level curves give you a good idea of where the extrema of your function are Another name for that is the contour line , contour plot or Equipotential Curve: A curve in two dimensions on which the value of a function f(x,y) is a constant. Other synonymous terms are isarithm, isopleth, and contour line.

What are level curves and contour lines?

Each level curve is the projection onto the xy-plane of the horizontal trace on the graph that lies above it. A contour map is a plot in the xy-plane that shows the level curves f(x,y)=( for equally spaced values of c. The interval m between the values is called the contour interval.

Can level curves intersect?

It is impossible for two different level curves to intersect.

What is the difference between a level curve and a level surface?

The level curves of f(x,y) are curves in the xy-plane along which f has a constant value. The level surfaces of f(x,y,z) are surfaces in xyz-space on which f has a constant value.

What is a contour curve?

Contour lines, or level curves, are obtained from a surface by slicing it with horizontal planes. A. contour diagram is a collection of level curves labeled with function values.

How do you describe a level surface?

Formally, Level surfaces: For a function w=f(x,y,z):U⊆R3→R the level surface of value c is the surface S in U⊆R3 on which f|S=c. Example 1: The graph of z=f(x,y) as a surface in 3-space can be regarded as the level surface w=0 of the function w(x,y,z)=z−f(x,y).

What is a tangent plane?

Definition of tangent plane

: the plane through a point of a surface that contains the tangent lines to all the curves on the surface through the same point.
