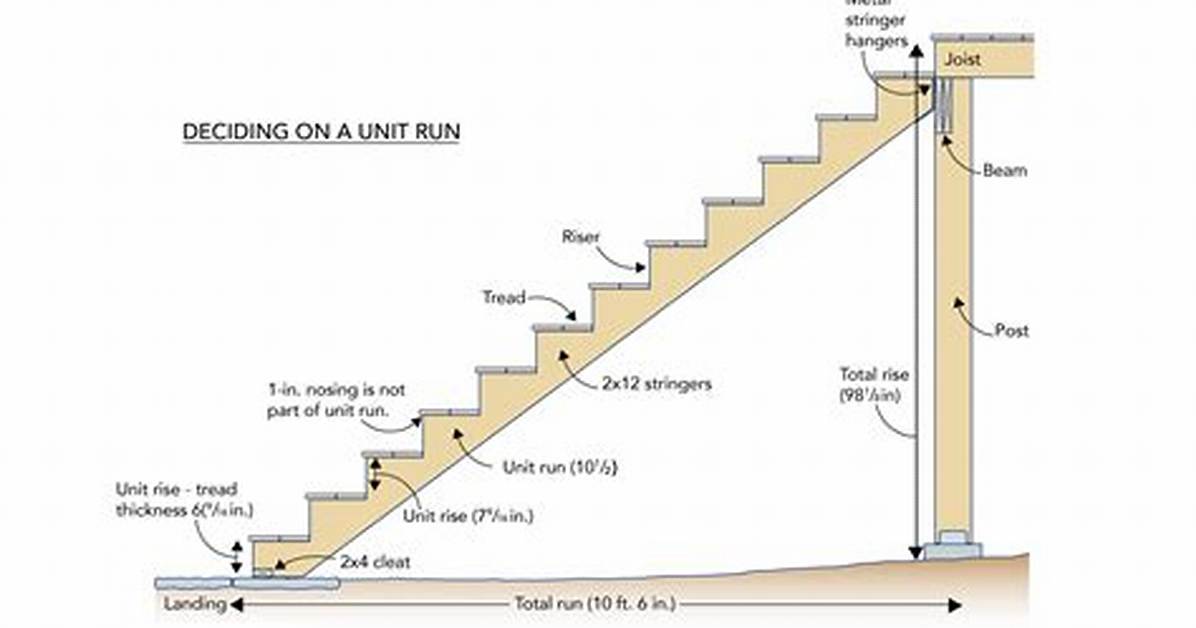

A stringer is the vertical support board or structural member that runs along each side or center of the staircase. The treads and risers are fixed into the stringer. Different stringers can combine with different types of stair treads to provide an almost endless combination of stair designs.
How do I calculate stair stringers?
Choose a stair rise somewhere between 7 and 7-1/2 inches. Take your total height divided by that stair rise number. This will almost always give you a long decimal number. Round to the nearest whole number – this will be the number of steps you will have in your staircase.
Are stair stringers 2×10 or 2×12?
It is acceptable and within building code guidelines to use either 2×10 or 2×12 dimensional lumber to create a set of stairs; however, a stair stringer should not be less than 3.5 inches wide at its narrowest point to provide adequate strength for the load the stairs will be supporting.
Are stringers required for stairs?
If cut stringers are used in the stair construction, then at least three stringers are required. Cut stringers should be spaced no more than 18 inches on center. For example, a 36-inch-wide stairway should have three stringers. If the stairway is wider than 36 inches, four stringers should be installed.
What goes first the tread or the riser?
When installing stairs, install the riser first, and then the tread. Start at the bottom of the stairs and work your way up, alternating risers and treads. The back of each tread will sit flush against the riser. Treads and risers fasten with construction adhesive to the subfloor.
How far apart should stair stringers be?
Stringers should be spaced no more than 36 inches apart from each other for maximum stair support, according to the International Association of Certified Home Inspectors. However, local residential codes may vary slightly, so check the building codes before building a staircase.
How long should a 2×12 stringer be?
Stringers should always be cut from 2x12s. Notching smaller stock doesn’t leave enough wood to safely carry the loads of a stair. When ordering stringers, allow about 14 inches of stringer length for each step.
Can I use 2×8 for stair stringers?
You should attach 2×6 or 2×8 support framing under the rim flush to the bottom of the stringer. The stairs will hang here. Install a piece of blocking below the rim joist to extend the attachment surface for your stairs stringers. Use a level to mark the top step.
How long of a 2×12 do I need for stairs?
We suggest 10.5″ for 2×12 or 2 – 2×6 Treads. Treads may be cut to suit other widths. Either B or C is required.
What is the best wood for stair stringers?
Always use straight, high-quality, pressure-treated 2x12s for stair stringers. If you are planning on resting the stringer on the ground, make sure the wood has .
How long can stringers be without support?
The minimum recommended size for a deck stair stringer is 2×12, which has a maximum recommended unsupported span of 6 feet. Often this maximum span is dangerously exceeded, resulting in overspanned stringers that will deflect and cause the connection at the deck to pull loose and fail.
Why is the last step on a stringer shorter?
The stringer run size differs from the tread width based on the size of the nosing. You see, the overhang (nosing) is not included in the stringer run. Each nosing hangs past the riser board on the step below. So the total reach of the stairs is smaller because of this overlap.
How many stair stringers do I need?
This means you will need to install a minimum of four stringers on any stairway wider than 36”. Always check the maximum span for your decking material as it applies to stair treads. Some composite materials and lower-grade 5/4 wood decking may require you to reduce the stringer spacing to 10” on center.
