A single pole switch is used to control the light in a small closet or bathroom. It’s called a single pole switch because there are two wires connected or separated by the switch mechanism. There’s also a ground wire to protect against electrical faults.
Do I need a single pole or double pole light switch?
Single pole sockets are perfectly legal and are safe for many appliances, but it is safer to use double pole sockets. Therefore is always better to use double pole sockets in all situations.
What is the difference between a single and double pole switch?
Both single pole and double pole switches can be either single or double throw. A pole refers to the number of separate circuits a switch can control, a single pole switch can operate one circuit whereas a double pole switch can control two circuits. A throw refers to how many positions can be activated by a switch.
How do I know if my light switch is single pole?
Single-Pole Switch
Its characteristic on/off markings on the toggle aren’t found on other switches. However, some styles of single-pole switches (notably, rocker-style switches) do not have on/off markings. A single-pole switch has two brass-colored screw terminals that are connected to the hot, or power-source, wires.
Whats the difference between a single pole and 3-way switch?
Closer inspection reveals that while a single pole switch has two terminals, a three pole switch has three.
Does a single pole switch need a neutral?
Question; A single pole switch does not need a neutral, so why would you want a neutral in the switch box? Answer; Because changes or additions might require a neutral. Since there is no neutral in the switch box you cannot; – Install a digital timer – Install a motion sensing switch.
Can I replace a double pole switch with a single pole switch?
A double pole switch can be used to control light and a fan or 2 lights on separate circuits. It is easy to wire a double pole switch to work as a single pole switch because only one side is used instead of both.

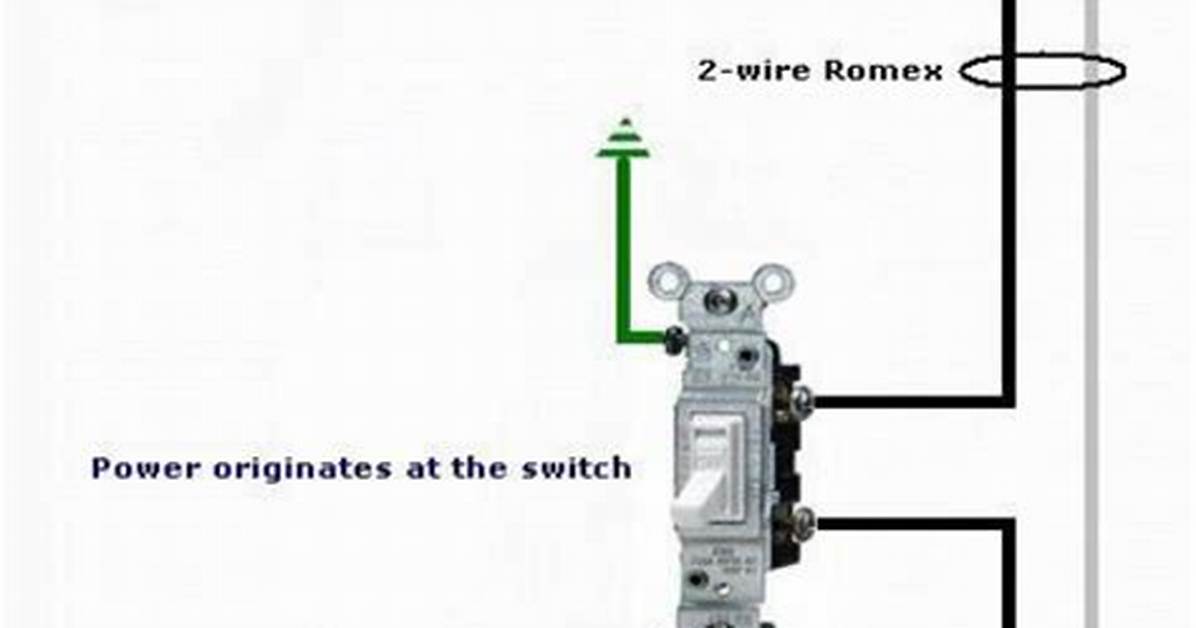

How do you wire a single pole light switch?
Steps for Wiring a Single-Pole Switch
Turn Off the Power First. Remove the Existing Switch (If Necessary) Strip the Electrical Insulation From the Wires. Connecting the New Switch. Wrap With Electrical Tape for Added Safety. Turn on The Power and Test Switch.
Can you use 3 way switch single pole?
Yes it can work. 3-way switches are spdt (single pole double throw) with 3 screw terminals, and regular switches are spst (single pole single throw) with 2 screw terminals. Just pick the correct two contacts and you are good to go. .
What are the 4 types of switches?
The types of switches are classified into four types namely:
SPST (Single Pole Single throw)SPDT (single pole double throw)DPST (double pole, single throw)DPDT (double pole double throw)
What is a 2 pole single throw switch?
A Double Pole Single Throw (DPST) switch is a switch that has 2 inputs and 2 outputs; each input has 1 corresponding output. Each of the terminals of a double pole single switch can either be in the on position (closed) or in the off position (open).
How many terminals does a single pole switch contain?
A single pole switch has two brass terminals and a ground screw.
How do you know if a light switch is wired?
Inside an outlet’s electrical box, the black (hot) wire should be connected to the brass-colored terminal on the outlet. The white (neutral) wire should be connected to the silver-colored terminal. If these connections are backward, the polarity is wrong.
How do I know if I have a 3-way or single pole?
The most common household switch, a single-pole, has two terminals and simply turns power on or off. A three-way switch has three terminals; a four-way has four.
