Take the total height of your stairs divided by the number of steps. This will give you the exact height you should cut each rise in your stair stringer boards.

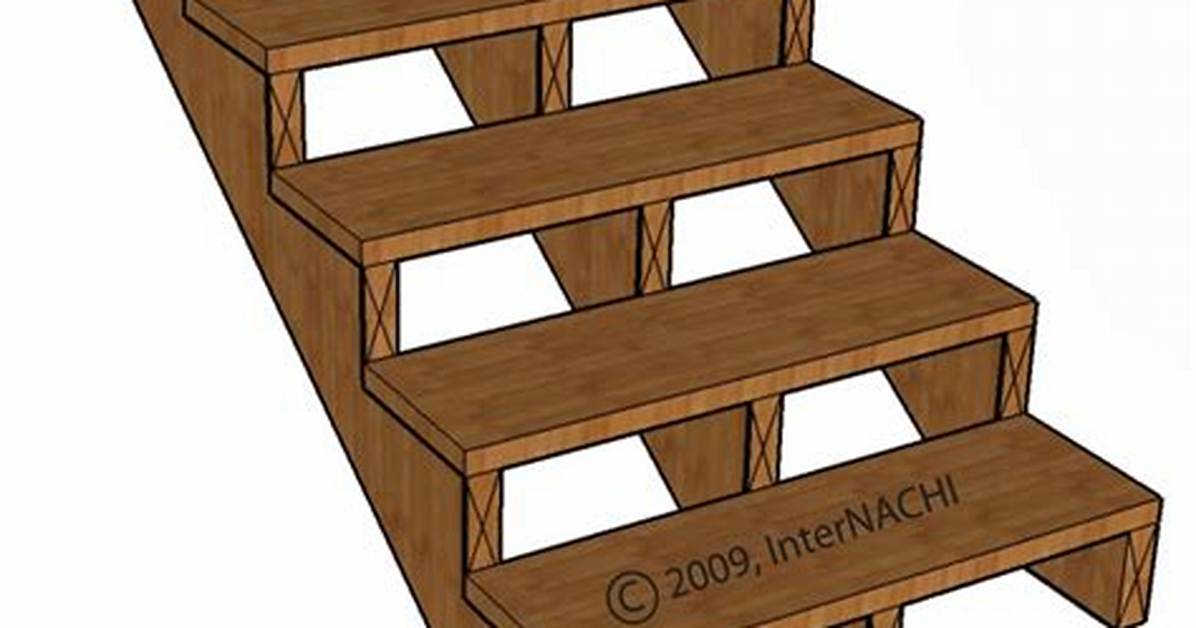

Do you need 3 stringers for stairs?
If cut stringers are used in the stair construction, then at least three stringers are required. Cut stringers should be spaced no more than 18 inches on center. For example, a 36-inch-wide stairway should have three stringers. If the stairway is wider than 36 inches, four stringers should be installed.
Can I use 2×10 for stair stringers?
It is acceptable and within building code guidelines to use either 2×10 or 2×12 dimensional lumber to create a set of stairs; however, a stair stringer should not be less than 3.5 inches wide at its narrowest point to provide adequate strength for the load the stairs will be supporting.
How far apart should stringers be for stairs?
Stringers should be spaced no more than 36 inches apart from each other for maximum stair support, according to the International Association of Certified Home Inspectors.
What is the standard stair rise and run?
What is code for rise and run of stairs? The 2018 IBC building code for rise and run of stairs is a maximum 7″ rise and minimum 11″ run (tread depth). The OSHA standard for rise and run of stairs is maximum 9.5″ rise and minimum 9.5″ run (tread depth). The IBC maximum rise of a single stair flight is 12.
How tall is a 5 step Stringer?
This product is a stringer that will install 8 stairs, with a total height of approximately 54-3/4″ high to the top step.
How many stringers do I need for 4 foot wide steps?
This means you will need to install a minimum of four stringers on any stairway wider than 36”. Always check the maximum span for your decking material as it applies to stair treads. Some composite materials and lower-grade 5/4 wood decking may require you to reduce the stringer spacing to 10” on center.
How far apart should deck stringers be?
Deck stairs are typically made from 2 x 12 stringers spaced about 12 to 16 inches apart. They rest on a solid foundation and are attached to the deck with hangers. They have risers (also called toe kicks), treads and railings. The stairs should be at least 36 inches wide.
How long can stringers be without support?
The minimum recommended size for a deck stair stringer is 2×12, which has a maximum recommended unsupported span of 6 feet. Often this maximum span is dangerously exceeded, resulting in overspanned stringers that will deflect and cause the connection at the deck to pull loose and fail.
How do you make a 2×12 stair stringer?
Laying out the stringer
Lay a straight piece of 2×12 on sawhorses.Hold a framing square with the rise dimension on the tongue and the run dimension on the blade intersecting the edge of the 2×12.Clamp a scrap of wood to the underside of the of the square to serve as a guide, then mark out the first cut with a pencil.
How long of a 2×12 do I need for stairs?
How to Use the EZ Stair Calculator. We suggest 10.5″ for 2×12 or 2 – 2×6 Treads. Treads may be cut to suit other widths.
Can I use 2×8 for stair stringers?
You should attach 2×6 or 2×8 support framing under the rim flush to the bottom of the stringer. The stairs will hang here. Install a piece of blocking below the rim joist to extend the attachment surface for your stairs stringers. Use a level to mark the top step.
Can you use joist hangers for stair stringers?
Use joist hangers to fasten the blocking. Pros: Allows for the use of all types of stair stringer hangers. The top of the stair stringer acts as the first tread instead of being flush with the deck’s surface.
How tall is a 3 step Stringer?
A: Standard is 7″.
What angle are most stairs?
The standard angle of a staircase depends on the use case and application for the stair. For most standard stairs, the stair angle varies between 30 degrees and 45 degrees. Egress stairs have a shallower angle around 30-35 degrees while industrial stairs have steeper angles ranging from 40 to 70 degrees.
What is the most comfortable stair rise and run?
Rule one says that rise plus run (r+R) should equal 18 inches. Why? That’s what most people find to be a comfortable stride on most stairs. You can cheat a bit up or down, but below 17” and more than 19” will result in steps that require strides either too big or too small for most people.
How tall is the average stair?
The standard stair height for American architects is 7.5 inches. Outside steps have an average length of 11 inches tall, while inside steps have an average length of 9 inches tall.
