We also offer I-beams in a variety of web and flange thicknesses, from 0.114″ to 1.060″.

How do I choose the right size beam?

Steps for Selecting a Correctly Sized I Beam

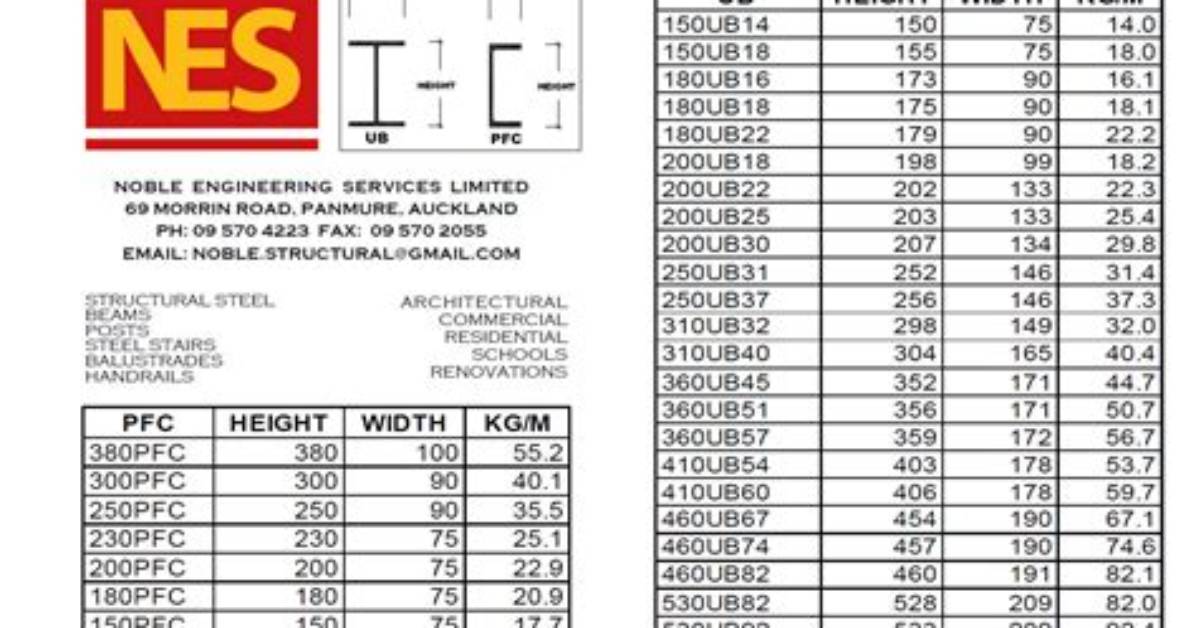

Choose an approximate size of steel I beam from a standard I beam table. Find out the area moment of inertia (say I) of the selected steel I beam. Get the beam depth (say d) of the selected steel I beam.

What size steel beam do I need to span 26 feet?

LVL beam size for a 26 foot span:-as per general thumb rule, for a 26 foot span, size of LVL beam or GLULAM should be 14 to 16 inches deep and 4 inches wide, thus you need something like a 14-16″ GLULAM or LVL to span upto 26 feet and can use simple 2×16 dimensional lumber at 16″ apart from centre as floor joists used

What size rsj do I need for a 4m span?

Steel beam or rsj size for 4m span:- as per general thumb rule, for 4m span size of steel beam or universal beam or w beam or I beam or UB’s or hot rolled section or Rolled steel section (rsj) should be ISMB 200 or UB 200×100 used for residential building or projects or construction in which depth of section of beam is

What size beam do I need for a 20 foot span?

For a 20-foot spans, the wood beam has to be at least 16 inches in depth and 8″ in width (4-2×16) used for residential building or projects.

What size beam do I need for a 24 foot span?

For 24 foot span, size of simply supported beam for 2-3 storey residential building, using thumb rule, is about 15″×18″ in which beam width is 12″ and beam depth is 15″, if width will be kept 12″, depth should increased, then beam size 12″×24″ can be used, providing with 4nos of 16mm bar at top, 4nos of 20mm bar at …

Which is stronger H beam or I-beam?

Center Web. H-beam: An H-beam has a thicker center web, which means it is often stronger. I-beam: An I-beam often has a thinner center web, which means it is often not able to take as much force as an h-beam.

What do you mean by bending moment?

In solid mechanics, a bending moment is the reaction induced in a structural element when an external force or moment is applied to the element, causing the element to bend. The most common or simplest structural element subjected to bending moments is the beam.

What size steel beam do I need to span 16 feet?

For a 16 foot span, you will need atleast 3-2×14 or 6×14 size of wood beam. Thus, a 3 nailed 2×14 or 3-2×14 or 6×14 wood beam can allow to span 16 feet.

What size steel beam do I need to span 15 feet?

What size beam to span 15 ft:- as per general thumb rule and guidelines, a 3 nailed 2×12 or 3-2×12 or 6×12 size of wood beam can allow to span 15 ft. Thus, for a 15 foot span, you will need atleast 3-2×12 or 6×12 size of wood beam.

How big of a beam do I need to span 28 feet?

What size lvl beam for a 28 foot span:- as per general thumb rule, for a 28 foot span, size of LVL beam or GLULAM should be 15-16 inches deep and 4 inches wide, thus you need something like a 15-16″ GLULAM or LVL to span upto 28 feet used for residential building or projects.

What size beam do I need for a 30 foot span?

What size lvl beam for a 30 foot span:- as per general thumb rule, for a 30 foot span, size of LVL beam or GLULAM should be 16-18 inches deep and 4 inches wide, thus you need something like a 16-18″ GLULAM or LVL to span upto 30 feet used for residential building or projects.

What size beam do I need for an 18 foot span?

Wood beam size for a 18 foot span:– as per general thumb rule, for a 18 foot span, size of wood beam or lumber joist should be 2×12 which placed at 16″ apart from centre used for residential building or projects or construction in which depth of section of beam is 300mm (12″) and width of beam is 50 mm or 2″.
