It receives the incoming power from the utility company and distributes it to each of the circuits that supply the various lights, outlets, appliances, and other devices throughout the house. Everything but the incoming utility power can be shut off and turned on at the main service panel.
What is a panel box called?

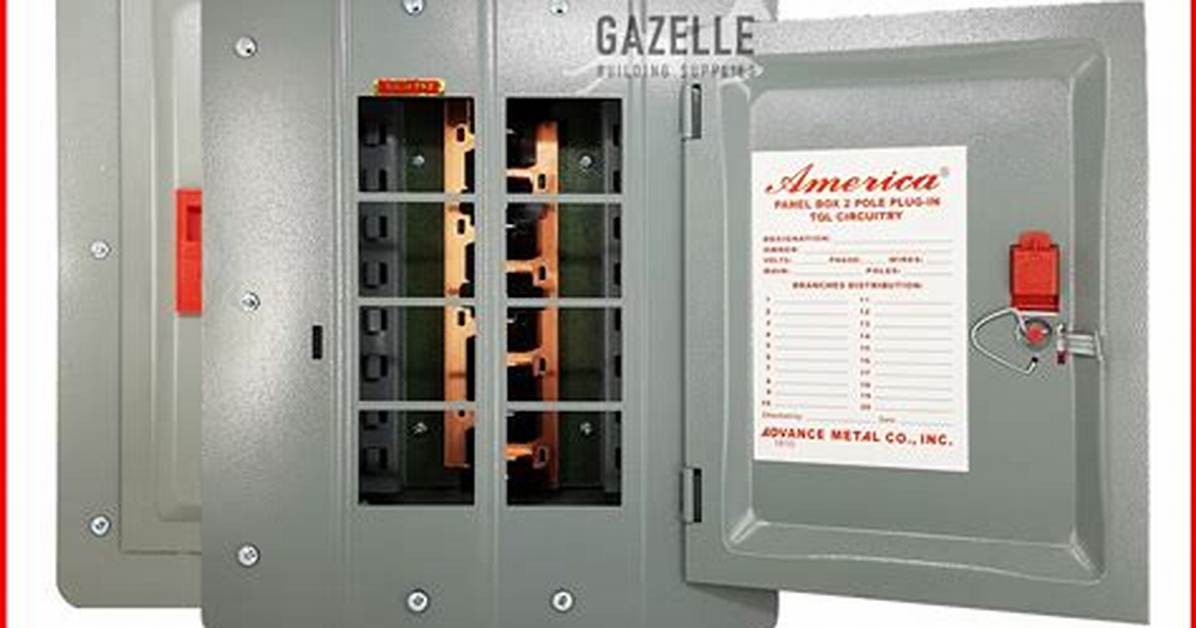

An electrical panel box goes by several names, including breaker box, load center, breaker panel, and service panel. Regardless, the typical electrical panel for a home is a steel box that’s mounted on a wall in the garage, basement or laundry room.
What is inside a panel box?
An electrical panel (a.k.a. breaker panel) is a metal box with a door, usually built into a wall in an out-of-the-way corner of your home. Inside, you’ll find all your home’s breaker switches. You can toggle breaker switches on and off.
Where are panel boards used?
A panelboard is a component of an electrical distribution system which divides an electrical power feed into branch circuits, while providing a protective circuit breaker or fuse for each circuit, in a common enclosure. A panelboard services to protect branch circuits from overloads and short circuits.
What is a dead front on an electrical panel?
Dead front is defined in Article 100 of the NEC as being “without live parts exposed to a person on the operating side of the equipment.” Section 408.38 requires that panelboards be mounted in cabinets, cutout boxes or enclosures designed for the purpose and shall be dead front.
What is a subpanel?
A subpanel is a smaller service panel that distributes power to a specific area of the home or other buildings on the property. It is essentially a satellite circuit breaker panel that has its own breakers.
What is enclosure box?
An electrical enclosure is a cabinet or box that protects electrical or electronic equipment and prevents electrical shock. Enclosures are usually made from rigid plastics or such metals as steel, stainless steel, or aluminum.
What are the types of panel boards?
Panelboards are frequently divided into two categories:
Lighting and appliance branch-circuit panelboards.Power panelboards (also called distribution panelboards)
Is 100 amps enough for a house?
Most homes require an electrical service of at least 100 amps. This is also the minimum panel amperage required by the National Electrical Code (NEC). A 100-amp service panel will typically provide enough power for a medium-sized home that includes several 240-volt appliances and central air-conditioning.
Do I need a 200 amp panel?
If you’re planning a home remodel involving significant electrical work, a 200-amp service is usually the best option. A home larger than 2,000 square feet with electric heating or central air-conditioning would probably benefit from a 200-amp breaker panel.
Can you change a 100 amp panel to 200 amp?
Can You Change A 100 Amp Panel To 200 Amp? You cannot change a 100 amp panel to a 200 amp panel without upgrading the power service coming into the dwelling. The reason for this is a 200 amp service is much larger in wire size and price than 100 amps.
How many breakers can I add to my panel?
The number of circuits and breakers you can install in an electrical panel is limited by the panel’s design. Most 200 amp panels will have 40 breaker slots but can accept more circuits with tandem breakers. 120v single-pole breakers will use 1 breaker slot, while 240v double-pole breakers will use 2 breaker slots.
How long should an electrical panel last?
The average lifespan for an electrical panel can range from 25-40 years. There is a wide range of variability due to several things, such as: Power surges. Wear and tear.
How many breakers are in a panel?
The number of breakers can max out to 30-42, too, depending on the design of your 100-amp pane. However, NEC prohibits more than 42 circuits, so you can only choose between 20-42 breakers for a 100-amp panel. Breakers or circuit breakers act as a switch for cutting off power from the main electrical supply.
What is incoming panel?
This panel incomes commercial electric power from a power company to the premises. We can manufacture a panel that suits the premises equipment and by combing it with a generator control panel, etc. we can automatically conduct incoming circuit breaker control in a power failure and recovery.
What is the difference between panel and board?
As verbs the difference between panel and board
is that panel is to fit with panels while board is to step or climb onto or otherwise enter a ship, aircraft, train or other conveyance.
What is the difference between panel board and circuit breaker?
Circuit breakers are used to protect the system from overload while the Power Panel turns off an entire section of the avionics with one switch.
