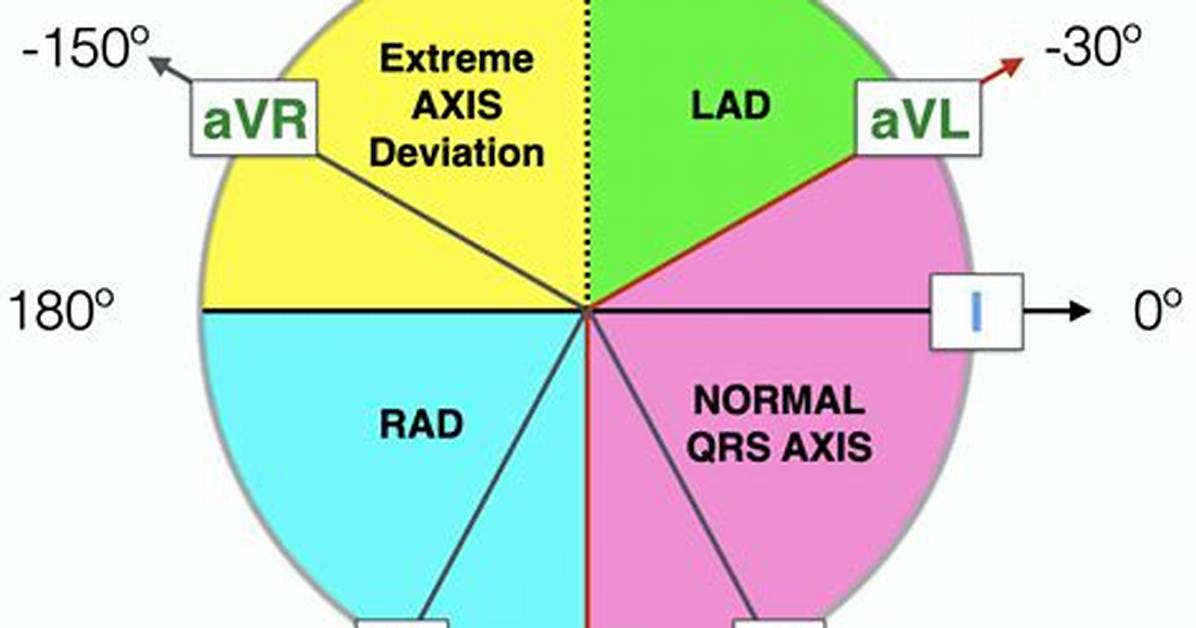

The normal adult QRS axis is between -30 degrees and +90 degrees, which is directed downward and to the left. This adult range is sometimes extended from -30 degrees to +100 degrees.
What does axis mean on ECG?
The heart axis indicates the average direction of the depolarization wave. A normal heart axis, the picture shows an example, is between -30 and +90 degrees. In this example, the heart axis is +45 degrees.
How do you check QRS axis?
The most efficient way to estimate axis is to look at LEAD I and LEAD aVF. A positive QRS in Lead I puts the axis in roughly the same direction as lead I. A positive QRS in Lead aVF similarly aligns the axis with lead aVF. Combining both coloured areas – the quadrant of overlap determines the axis.
What does axis deviation tell us about the heart?
Right axis deviation (RAD) involves the direction of depolarisation being distorted to the right (between +90º and +180º). The most common cause of RAD is right ventricular hypertrophy. Extra right ventricular tissue results in a stronger electrical signal being generated by the right side of the heart.
How long is normal QRS interval?
Answer. The QRS duration represents the time for ventricular depolarization. The duration is normally 0.06 to 0.10 seconds. Q waves are inscribed when the initial QRS vector is directed away from the positive electrode.
What are normal values for ECG?
The normal range of the ECG differed between men and women: heart rate 49 to 100 bpm vs. 55 to 108 bpm, P wave duration 81 to 130 ms vs. 84 to 130 ms, PR interval 119 to 210 ms vs. 120 to 202 ms, QRS duration 74 to 110 ms vs.
How can I study ECG report?
10 Steps to Learn ECG Interpretation
Learn the Basics of a 12-lead ECG Tracing. Determine Heart Rate on the ECG. Determine Axis on the ECG. Learn Abnormal Heart Rhythms. Learn Chamber Hypertrophies and Bundle Blocks. Learn Acute MI and Ischemic ECG Findings. Learn the Everything Else Including Atypical ECG Findings.
How do you identify a pathological Q wave?
Q waves are considered pathological if:
> 40 ms (1 mm) wide.> 2 mm deep.> 25% of depth of QRS complex.Seen in leads V1-3.
Why is ECG abnormal?
An abnormal ECG can mean many things. Sometimes an ECG abnormality is a normal variation of a heart’s rhythm, which does not affect your health. Other times, an abnormal ECG can signal a medical emergency, such as a myocardial infarction /heart attack or a dangerous arrhythmia.
What does low voltage QRS mean?
Low QRS voltage is a non-specific electrocardiographic finding in which the voltage (the height) of the QRS complexes is reduced.
What is the most common cause of left axis deviation?
Left anterior fascicular block (LAFB): LAFB probably is the most common cause of left axis deviation and is common in persons without overt cardiac disease.
What does the QRS stand for?
As the name suggests, the QRS complex includes the Q wave, R wave, and S wave. These three waves occur in rapid succession. The QRS complex represents the electrical impulse as it spreads through the ventricles and indicates ventricular depolarization.
What does longer QRS mean?
Kardia Advanced Determination “Sinus Rhythm with Wide QRS” indicates sinus rhythm with a QRS, or portion of your ECG, that is longer than expected. This could indicate a bundle branch block in which there is a delay in the passage of heart’s electrical signals along the bottom of the heart.
What causes QRS prolongation?
Causes of a widened QRS complex include right or left BBB, pacemaker, hyperkalemia, ventricular preexcitation as is seen in Wolf-Parkinson-White pattern, and a ventricular rhythm. Because there is a P wave associated with every QRS complex, a ventricular rhythm can be ruled out.
