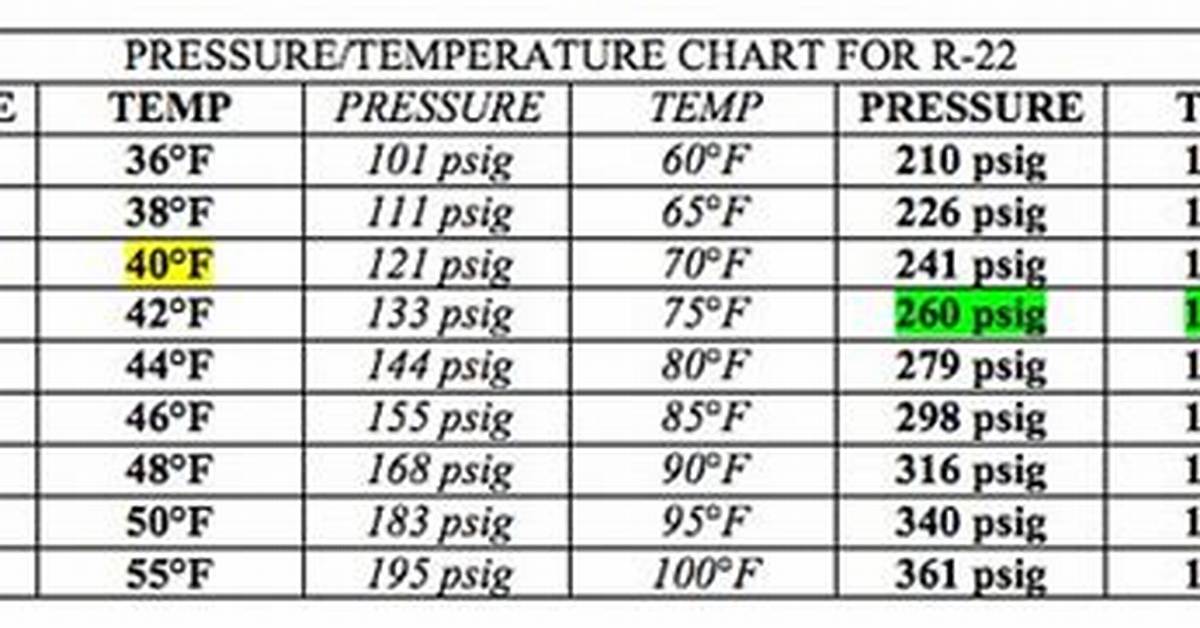

R22 gauge pressure is 10.9 bar or 158.2 psi. High side pressure typically varies by equipment and metering controls. Low pressure or suction side typically varies by equipment. Low-pressure refrigerant turns on the carrier HVACR at 50 psi (R22 pressure at 30 degrees) and closes at 100 psi (R22 pressure at 85 degrees).
What should R-22 pressures be at 90 degrees?
The low-side should be near 30 PSI at 90 degrees Fahrenheit or less. Pressure that is too much lower or higher shows there is a problem. On a properly working system, high-side pressure will be about twice the ambient temperature, plus 50 PSI.
What is the suction and discharge pressure for R-22?
For example, a high-efficiency condensing unit using R-22 typically operates with a suction pressure of about 68 psi and a discharge pressure of about 250 psi at an outdoor temperature of 95°F.
How can you tell if R-22 is low?
In summary, here are the seven symptoms or telltale signs of a system low on refrigerant:
Medium to high discharge temperatures;High evaporator superheat;High compressor superheat;Low condenser subcooling;Low compressor amps;Low evaporator temperatures and pressures; and.Low condensing temperatures and pressures.
What are good refrigerant pressures?
Most technicians in the HVAC field know the normal range of operation for the low-pressure side of an air conditioning system. This tends to be around 60 PSI to 85 PSI for R-22 and 105 PSI to 143 PSI for R-410A and is dependent upon operating conditions.
Why turn refrigerant tank upside down?
By pumping liquid into the vapor port of an upside down recovery tank you avoid the restrictive dip tube and can even lower the temperature of a hot tank.
What does bubbles in sight glass mean?
Seeing bubbles in a sight glass is one of the indications that there is a problem with the refrigerant level that needs to be addressed. Sight glasses are used to detect refrigerant levels. Let your unit warm up. Units that have just started working or are under a low load may show bubbles, and this is normal.
What are the symptoms of low Freon?
Five Signs your AC is Low on Freon
It takes much longer than it should to cool off your home. Your utility bills are higher than usual. The air coming out of your vents isn’t cold. Ice has started to build up on your refrigerant line. You hear loud or unusual noises coming from your unit.
Does low Freon cause freeze up?
Low refrigerant or Freon®.
Another thing that causes an air conditioner to freeze is low refrigerant or Freon. This causes a drop in pressure inside the evaporator coil, which then allows moisture in the air to accumulate and freeze on the coil.
What should R-22 pressures be on a 70 degree day?
If the outdoor temperature is 70°F, a refrigerant bottle outside would have a pressure of roughly 201 PSIG.
