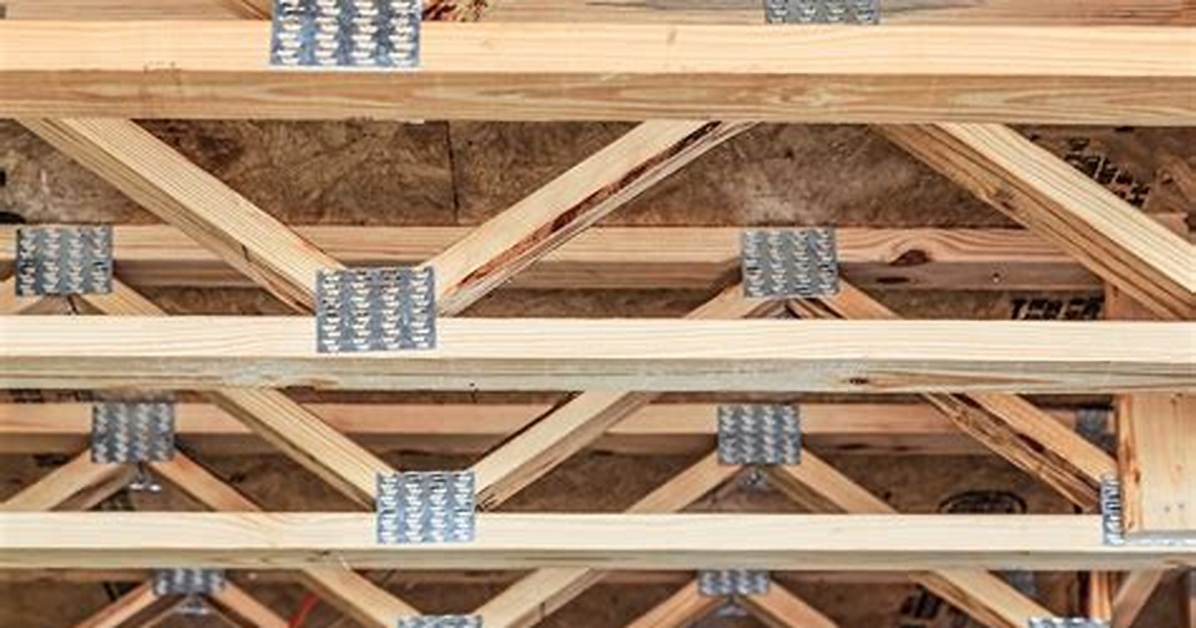

Truss plates are light gauge metal plates used to connect prefabricated light frame wood trusses. They are produced by punching light gauge galvanized steel to create teeth on one side. The teeth are embedded in and hold the wooden frame components to the plate and each other.
How do you attach truss plates?
How to Install a Truss Plate
Arrange the truss members on the ground. Lay the plywood truss plates at the connection of each truss. Hammer the truss plates into place with five 6 d nails on each connecting member.Repeat the procedure for all connections on one side of the truss.
Can you nail through truss plates?
Do not drive nails through the truss plate on the opposite side of single-ply trusses which could force the plate off the truss. Nuts shall be installed such that the end of the threaded rod or bolt is at least flush with the top of the nut.
What is truss design?
A truss is a design that enables structures to safely transfer weight to the foundations and anchors of that structure.
How do Rafter ties work?
Rafter ties are installed between opposing rafters, and they should be installed as close as possible to the top plate. Rafter ties help resist the outward thrust that rafters exert on the exterior walls. They help keep walls from spreading due to the weight of the roof.
Are trusses cheaper than rafters?
Trusses typically cost less than rafters. In fact, prefabricated truss packages will cost about 30-50% less than the materials and labor used to build rafters on-site. They have become increasingly popular over the past 50 years because of their cost-effectiveness compared to rafters.
What are the metal plates on trusses called?
Connector plates have integral teeth, are manufactured to various sizes and thicknesses, and are designed to laterally transmit loads in wood. They are also known as nail plates, truss plates, metal connector plates, and foundation wall angles.
How do you join trusses?
Stand the first truss on the end of the wall, flush with the outside end of the wall. Center the truss side to side so that the ends overhang evenly on each side. Nail through the bottom horizontal board of the truss on an angle into the top plate on each wall to hold it in place.
Can you use screws to build trusses?
instead of purlins on top of trusses, cut blocks and nail between where the purlins would be. if you are going to put them on top and use screws, do not use “grabber” screws, get “deck” screws. deck screws are thicker. If you go with nailing on purlins, use 31/4 ring shank nails in an exterior finish.
Can you nail trusses?
Trusses or rafters may be attached to walls with a minimum of three of any of the nails shown in the adjoining table as long as the uplift does not exceed 200 pounds. If you are using gun nails, you must use a minimum of a 16d gun nail. allowed provided the nailing does not damage the metal plates.
Can I use OSB for gussets?
GUSSET CONNECTORS
Trusses that use dimension wood, 2 by 4 or 2 by 6, can also be constructed in a shop using OSB or plywood cut in triangular shapes, called gussets, nailed onto the joint.
How long should gussets be?
It is important to know how big those gussets should be. As a general rule, your gussets would need to be about 11 inches or so. They would be mounted onto 4 ½ inches of the longer side of the rafters. This means that you can deep the rafter by 6 ½ inches.
What is truss in civil engineering?
truss, in engineering, a structural member usually fabricated from straight pieces of metal or timber to form a series of triangles lying in a single plane. (A triangle cannot be distorted by stress.) truss.
What is truss roofing?
It consists of pieces of straight wood joined together in triangular shapes to support the weight of the roof. Typically triangular in their final shape, roof trusses are made off site and transported to location where they are lifted into place before being secured.
What is truss type construction?
Light-Frame Truss-Type Construction Placards
“Light-frame truss-type construction” means a type of construction whose primary structural elements are formed by a system of repetitive wood or light gauge steel framing members.
