Grade 8 bolts have been hardened more than grade 5 bolts. Thus they are stronger and are used in demanding applications such as automotive suspensions. Grade 8 bolts have 6 evenly spaced radial lines on the head. Grade G is roughly equivalent to Grade 8.
Is Grade 5 bolt stronger than stainless steel?
Stainless Steel Grades & Strength
Bolt strength is rated in PSI (pounds per square inch). A stainless steel bolt has the same PSI rating as a grade 5 bolt (125,000 PSI).
What is the difference between Grade 2 and Grade 5 bolts?
Grade 2 is a standard hardware grade steel. This is the most common grade of steel fastener and is the least expensive. Except a possible manufacturer’s mark,Grade 2 bolts have no head marking. Grade 5 bolts are hardened to increase strength and are the most common bolts found in automotive applications.
How can you tell if a bolt is Grade 5?
The higher the grade, the stronger the bolt. English bolts have radial lines on their head to identify the grade, or strength class. The number of lines on the bolt head is 2 less than the actual grade. So, for example, a grade 5 bolt will only have 3 radial lines on its head.
Is Grade 5 or 8 better?
Reference to Table 1 shows that the yield strength of a Grade 8 bolt is higher than the ultimate strength of a Grade 5 bolt.
Will a Grade 5 bolt shear?
For example, an SAE grade 5 hex cap screw has a specified minimum tensile strength of 120,000 psi. Therefore, for design purposes, its shear strength could be reasonably assumed to be 70,000 psi.” Quick Tip: For instructions on how to calculate the strength for your bolt, see Calculating Yield and Tensile Strength.
What type of bolt is the strongest?
Grade 9 structural bolts, also known as grade 9 hex cap screws, are one the strongest structural bolts that can be used today. While the typical grade 8 bolt has a tensile strength of 150,000 PSI, a grade 9 bolt has a tensile strength of 180,000PSI.
What is the hardest bolt you can buy?
BUMAX® Ultra has proven itself as the world’s strongest bolt – in various highly-demanding critical fastener applications around the world where standard fasteners are simply inadequate.
What is the strongest metal for bolts?
The strongest commercial-quality bolt is grade 8, marked by six raised dashes; its medium-carbon alloy steel has been quenched and tempered to achieve a tensile strength of 150,000 psi.
What is the strongest grade steel?
1,000-N grade steel is the world’s strongest ultra high strength steel for building structures that was developed to improve the earthquake resistance of buildings and has approximately 2.7 times the yield strength (*2) of conventional 490-N grade steel.
Is Grade 5 galvanized?
Grade 5 is the most common grade used in manufacturing assembly. Galvanized plating protects the bolt from corrosion; typically used in outdoor applications.
What grade bolt do I need?
Each grade has a specific bolt strength. No matter the system used to grade the bolts, the higher number means the stronger the bolt. For most home and automotive applications, you won’t need anything more than a grade 8 bolt strength or metric class 10.9.

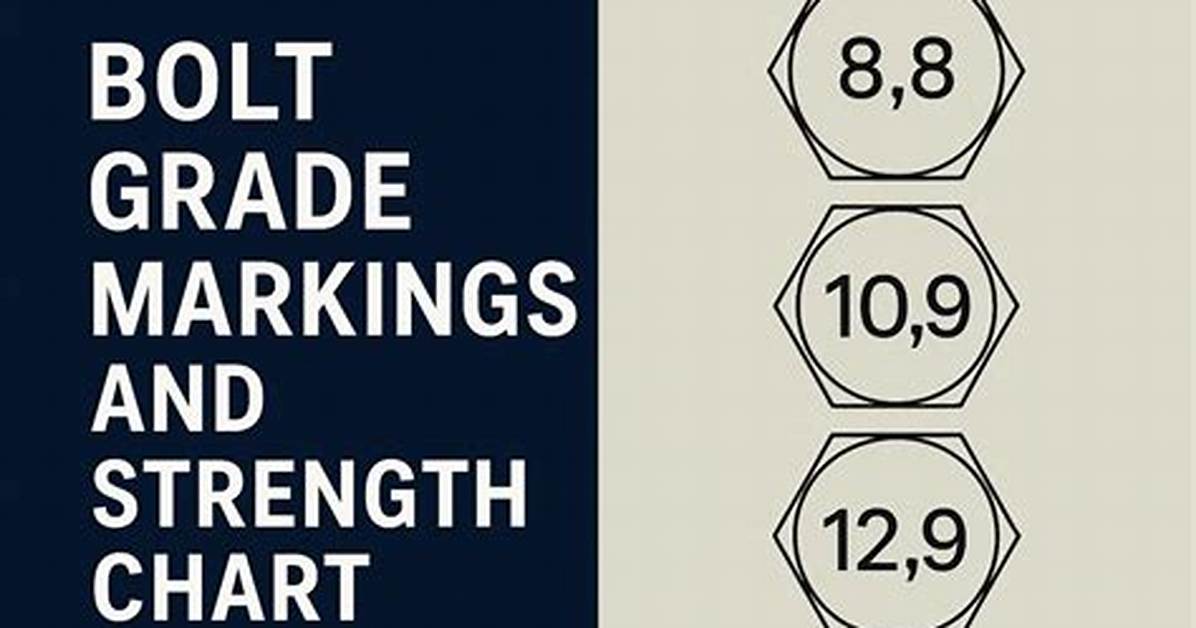

What does 8.8 mean on bolt?
So, in English, a PC 8.8 bolt is a bolt with a nominal tensile strength of 800 MPa and a nominal yield strength that is 80% of the bolt’s nominal tensile strength, or 640 MPa.
What does 10.8 mean on a bolt?
This number is 10% of the minimum tensile strength of the bolt (10% of proof strength for nuts). Thus, multiplying this number by 10 will produce the minimum tensile strength of the fastener in MPa.
