The stabilizers’ job is to provide stability for the aircraft, to keep it flying straight. The vertical stabilizer keeps the nose of the plane from swinging from side to side, which is called yaw. The horizontal stabilizer prevents an up-and-down motion of the nose, which is called pitch.
What is the name of the horizontal stabilizer?
A tailplane, also known as a horizontal stabiliser, is a small lifting surface located on the tail (empennage) behind the main lifting surfaces of a fixed-wing aircraft as well as other non-fixed-wing aircraft such as helicopters and gyroplanes.
Does the horizontal stabilizer move?
Like a stabilator, the trimmable stabilizer features a fully moving horizontal tail surface. However, unlike the stabilator, the trimmable stabilizer does not move in response to control column or control stick movement.
Does horizontal stabilizer produce lift?
The horizontal stabilizer provides lift, but usually in the negative direction.
What is the function of a horizontal stabilizer?
The stabilizer is a fixed wing section whose job is to provide stability for the aircraft, to keep it flying straight. The horizontal stabilizer prevents up-and-down, or pitching, motion of the aircraft nose.
What is Dutch roll in aerodynamics?
Answer: Dutch roll is a natural aerodynamic phenomenon in swept-wing aircraft. It is caused by the design having slightly weaker directional stability than lateral stability. The result is the tail of the airplane seeming to “wag” or move left and right with slight up and down motion.
What is tail of airplane called?

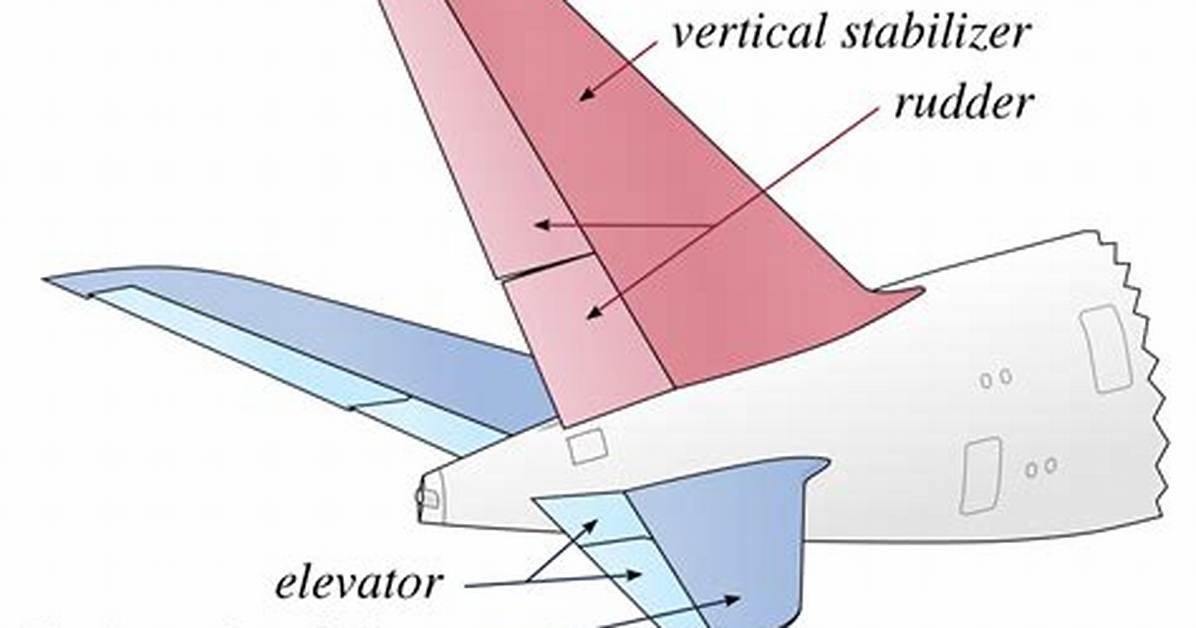

The empennage is the name given to the entire tail section of the aircraft, including both the horizontal and vertical stabilizers, the rudder and the elevator.
What is dynamic and static stability?
Static stability of an aircraft describes the tendency of and aircraft to retain its original position when subjected to unbalanced forces or moments acting on the aircraft. • Dynamic stability describes the form of motion an aircraft in static stability undergoes when it tries to return to its original position.
Can a plane fly without horizontal stabilizers?
The wings are needed to give the plane lift. Without that, it’s never leaving the ground. The stabilizers are needed to fly straight. Without them, the pilots would not be able to control the direction of the plane very well at all, and it wouldn’t fly straight.
Can a plane fly without a vertical stabilizer?
The vertical stabilizer is a very important part of an airplane’s stability. An airplane can fly without one, but it would be very difficult to control by a human. An aircraft with no vertical stabilizer would require more control surfaces to stabilize the flight, which can be inefficient.
What is the purpose of an aileron on an aircraft?
aileron, movable part of an airplane wing that is controlled by the pilot and permits him to roll the aircraft around its longitudinal axis. Ailerons are thus used primarily to bank the aircraft for turning.
Are horizontal stabilizers airfoils?
The NACA 0012 airfoil section is chosen for the horizontal stabilizer. The elevator hinge line is positioned at 62% of the horizontal stabilizer chord. The entire horizontal stabilizer structure is of CFRP sandwich construction with two CFRP spars.
What force overcomes thrust?
Thrust—the force that moves the aircraft forward. Thrust is the forward force produced by the powerplant that overcomes the force of drag. Drag—the force that exerts a braking action to hold the aircraft back.
Is the horizontal stabilizer an upside down wing?
The horizontal stabilizer is an upside-down wing, which is designed to provide a downward force on the tail. Planes are traditionally nose-heavy and this downward force is needed to compensate for that, keeping the nose level with the rest of the plane.
What are rudders on a plane?
The rudder is the small moving section at the rear of the stabilizer that is attached to the fixed sections by hinges. Because the rudder moves, it varies the amount of force generated by the tail surface and is used to generate and control the yawing motion of the aircraft.
Do all planes have horizontal stabilizers?
Not all aircraft have a vertical stabilizer. Instead wing sweep and dihedral can provide a similar degree of directional stability, while directional control is often effected by adding drag on the side of the aircraft the aircraft is to be turned towards, either in the form of spoilers or split ailerons.
