Type L Copper Pipe: Type L copper pipe is used for interior plumbing, fire protection, and some HVAC applications. It is available in rigid and flexible forms and can be used with sweat, compression, and flare fittings.
Should I use Type M or Type L copper?
When to use Type L and Type M copper pipe sizes
Type L copper pipe is recommended where you need strength and protection. But for normal “in the wall” household plumbing, Type M copper pipe is just fine.
What is difference between Type L and Type M copper?
The key difference between types L and M is their pressure rating and wall thickness. The most common copper pipe sizes are ½ and ¾ inches. Type M ½ inch measures 0.028” in wall thickness whereas type L ½ inch measures 0.04” in wall thickness.
Is Type L soft copper?
Soft copper pipe bends easily without tools and is more properly called tubing. Inflexible hard copper pipe requires pipe bending equipment in order to bend it and is usually cut and fit rather than bent. Most residential water supply plumbing uses two types of hard copper pipe called type M and type L.
Can you bury type L copper?
Type L Copper Pipe
While not quite as thick as Type K, with a wall thickness of . 045 inches for a ¾-inch diameter pipe, it is still quite durable and can be used in many more ways. Type L is beefy enough to be used in underground applications but is often used to replace or repair water lines.
Can type L copper be used for refrigeration?
Type L copper pipes are typically used for residential water systems. Copper, used for refrigeration, is designated as ACR copper. Measure the inside and outside diameter of the end of the tube. The outside diameter of Type L is always 1/8-inch larger than the size marked on the tube.
Which is stronger L or M copper?
However, in certain jurisdictions, you can find that they require type L pipes to be used. Water pressure is the primary cause because some municipal water sources require high water pressure to meet the demand. The thicker L copper pipes can withstand higher pressure than the M copper pipes.
What type of copper is used for compressed air?
Copper pipe is a common selection for sensitive compressed air systems and when correctly sized and connected is very durable and effective. Type M hard, type L hard and type K soft copper has a working pressure of 250 psig (17 bar). Type K hard copper is rated for 400 psig (27 bar).
Is PEX better than copper?
PEX pipe is not only cheaper than copper but more durable too. PEX is immune to corrosion and mineral build-up, and it’s not affected by electrolysis, which can cause small pinhole leaks in copper piping. Copper pipes can last anywhere from six months to the life of a building.
What is the difference between L copper and M copper?
Type K is the heaviest. Type L is medium weight and used most often for water lines in homes. Type M is thinner and is used underground or for light domestic water lines if local codes allow.
What type of copper is used for boilers?
Which type of copper pipe are you using for hot water heating system, type L or type K? Any of the pipe that feeds the radiation, and after the pressure regulator can be type M, which is a thinner wall, and a little cheaper. Codes may be different in your area. I would use type L copper for a boiler system.
What type of copper is used for water heaters?
Copper pipe is available in rigid lengths or in flexible coils. Type M is thin-wall copper pipe; Type L is thick-wall pipe. In some areas, Type M pipe isn’t allowed for delivering potable water, but it can be used for hot-water heating systems.
What is the difference between L and K copper pipe?

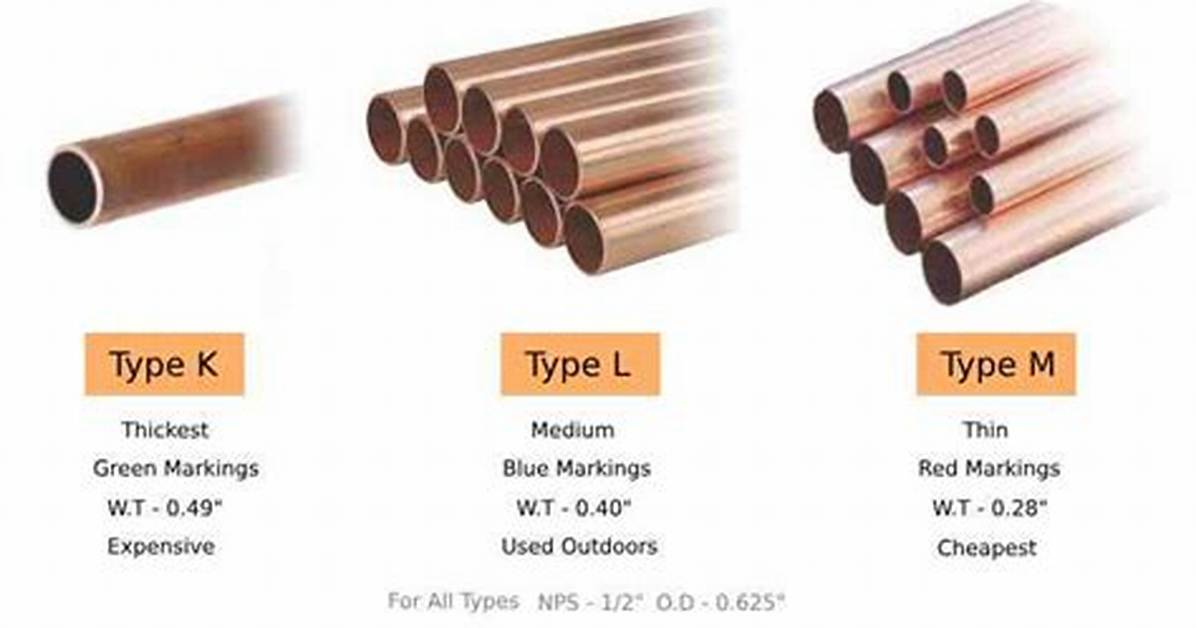

Each type represents a series of sizes with different wall thicknesses. Type K tube has thicker walls than Type L tube, and Type L walls are thicker than Type M, for any given diameter. All inside diameters depend on tube size and wall thickness.
What type of copper is used for underground water?
Three types of rigid copper pipes are available: Type M has thin walls, and Type L has medium walls usually used for general household installation. Type K has the thickest walls. For underground installations, use Type K copper pipe.
Does concrete eat copper?
A: According to petrographer Bernie Erlin, copper won’t corrode in concrete unless soluble chlorides are present. When copper is adjacent to steel reinforcement, and an electrolyte such as chloride is present, steel corrosion is likely to occur due to galvanic action.
Should copper pipe be wrapped?
Copper is naturally corrosion resistant to most soils and underground environments. Wrapping or sleeving the copper tube in an effort to provide an additional layer of protection, while well intended, can lead to failure due to improper sleeving or wrapping practices.
