July 6, 2021. The standard dimension ratio (SDR)—also referred to as the standard dimensional ratio—is a measurement and method often used by pipe manufacturers to rate the working pressure capacity of a pipe. It is calculated by determining the relationship of the pipe’s outside diameter to its minimum wall thickness.
What does SDR 35 stand for in pipe?
PVC-SDR 35 means polyvinyl chloride sewer material with a standard dimension ratio (pipe diameter/wall thickness equal to 35.
What is SDR 11 pipe used for?
Standard dimension ratio (SDR) is a method of rating a pipe’s durability against pressure. The standard dimension ratio describes the correlation between the pipe dimension and the thickness of the pipe wall. Common nominations are SDR11, SDR17 and SDR35. Pipes with a lower SDR can withstand higher pressures.
What is SDR pipe made out of?
SDR stands for Standard Dimension Ratio. SDR is the ratio of the outer diameter to the thickness of the PE pipe, which is one of the characteristics of the Polyethylene pipe, and the pipes can be sorted according to the standard tables accordingly.
What is SDR and PN?
PN – Pressure pipe rating at 20°C (MPa x 10)
The basic polyethylene (PE) material types used for pipe production are PE63, PE80 and PE100, the number indicating long term strength. The term SDR, Standard Dimension Ration, is introduced to describe the pipe, in combination with the material type.
What is SDR 21 PVC pipe used for?
SDR-21 PVC solvent weld pressure pipes are suitable for potable water supply lines, transmission mains, sewage force mains, golf course, and other irrigation systems, oilfield saltwater disposal, stormwater disposal, well casings, industrial process piping, and other pressure applications.
What is stronger SDR 26 or SDR 35?
SDR 26 and SDR 35 both categorize under the SDR rating system for pipe. At 5% deflection, the SDR 26 pipe can undergo pressurization of 115psi vs the SDR 35 pipe’s rating of 46psi. Despite that, neither pipe is pressure rated as applications should be restricted to drainage.
What is the difference between SDR 35 and Schedule 40 pipe?
SDR will bend with the shifting and settling. Having a higher flex tolerance means less breaks from the soil conditions. Schedule 40 is so rigid that in the event the ground shifts or settles this pipe has no give. It will simply snap or break from the pressure.
Is SDR 26 the same as Schedule 40?
SDR pipes of similar external diameter possess thicker or thinner wall thicknesses as compared to the same-sized Schedule 40 pipes. In this article, you’ll get familiar with SDR-26 pipe, Schedule 40 pipe, and the comparison (SDR 26 vs Schedule 40 Pipe) between both.
Is higher SDR better?
SDR pipe : “Standard Dimensional Ratio”
Therefore a higher SDR indicates a thinner-walled pipe at any given diameter. Where s is the maximum hoop stress P is the internal pipe pressure. The hoop stress is the design stress for the material, which is the (MRS) divided by the overall service (design) coefficient C.
What is SDR in CPVC pipe?

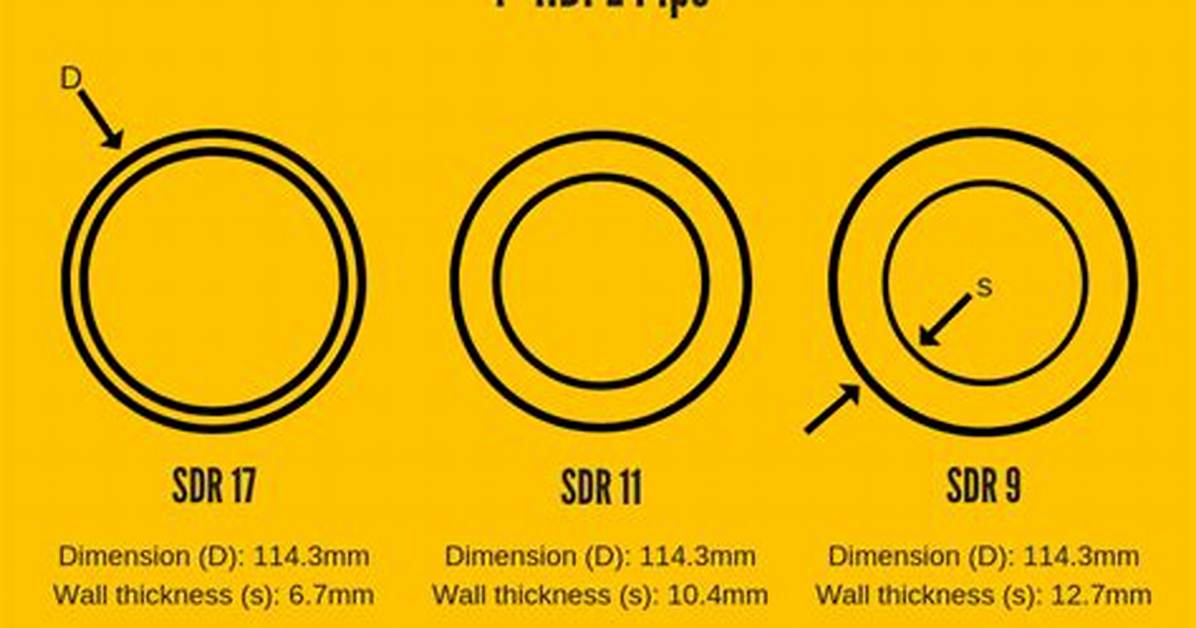

A SDR 11 means that the outside diameter – D – of the pipe is eleven times the thickness – s – of the wall. We here at Rahn Plastics find that the most requested SDR size is SDR11. Also common are DR’s 9 and 17. These are the industry standards however Rahn will also manufacture special DR sizes as well (eg.
What schedule is SDR 11 CPVC pipe?
CPVC Availability
CPVC pipe and fittings are produced by many manufacturers, and are available in Schedule 40 and Schedule 80 dimensions, as well as CPVC tubing which is suitable for potable hot and cold water distribution. The tubing is based on copper tube sizes (OD) and IPS pipe (OD), with SDR 11 wall thicknesses.
Is SDR pipe PVC?
Material Type. Both pipes are typically made with Type I, Grade I compound, Cell classification 12454-B per ASTM-D1784 (AKA 1120). When considered against each other for service, both SDR-21 and Schedule 40 are typically made of polyvinyl chloride (PVC).
Which is thicker SDR 11 or SDR 17?
The strength is greater for the lower SDR value that represents thicker pipe wall thickness; making SDR 11 stronger than SDR 17.
What is SDR and how it works?
The Special Drawing Right (SDR) is an interest-bearing international reserve asset created by the IMF in 1969 to supplement other reserve assets of member countries. The SDR is based on a basket of international currencies comprising the U.S. dollar, Japanese yen, euro, pound sterling and Chinese Renminbi.
What is pipe PN rating?
Notes: PN Is the nominal working pressure rating. The number used to describe PN is 10 times the value of the maximum allowable operating pressure (MAOP) at 20°C (MPa x10) based on a design factor of 1.25. SDR Nominal ratio of outside diameter to wall thickness.
