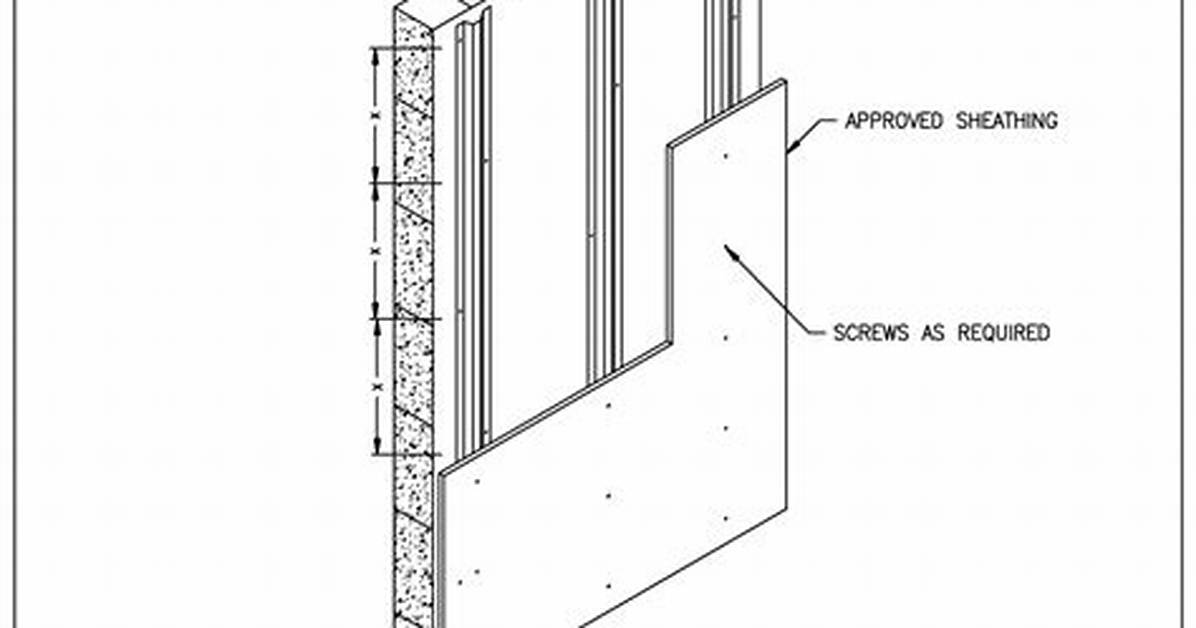

Siniat Furring Channel batten is used in conjunction with specified clips to help provide a stable framework for fixing plasterboard to walls and ceilings.
What is a wall furring channel?
Furring is a technique used to level out walls and ceilings with furring channels. A hat channel is a hat-shaped aluminum channel used to fur out a wall, masonry wall, or ceiling to provide a corrosion-resistant framing component.
What is a furring in construction?
Definition of furring
1 : a fur trimming or lining. 2a : the application of thin wood, brick, or metal to joists, studs, or walls to form a level surface (as for attaching wallboard) or an air space. b : the material used in this process.
How deep is a furring channel?
The ‘hat-shaped’ furring channel frame is rolled from premium BlueScope galvanised steel and used as a batten for concrete or masonry walls and concealed ceiling assemblies. Studco offers 16mm and 28mm deep furring channel options for wall and ceiling assemblies.
What is the difference between resilient channel and furring channel?
Resilient channels can also decouple structure-borne noise by providing airspace to a wall. Meanwhile, a furring channel has a shape similar to a fedora hat. Unlike a resilient channel that you attach to the framing, a hat channel is connected to studs or joists through legs or brims.
How far can furring channel span?
The required spacing of the furring channel or batten will depend on several factors. Maximum spacing is 600mm, however, closer centres such as 450mm or 300mm may be required, refer to Siniat Blueprint.
How much weight can furring strips hold?
Even though it might support enough static weight, that depends on HOW the ladder is designed, what joinery you use, and the environment. It is NOT a simple matter of joining sticks together. Furring strips may support 50 lbs now, but this is NOT the right type of lumber for supporting live loads.
What is the difference between furring strip and common board?
What is this? Furring strips are usually even less expensive than common boards. However, they are mainly used for construction, so they aren’t meant to be seen. This often results in the pieces of lumber often looking rough with imperfections, warps, or knots.
What is Z furring?
Description. ClarkDietrich Z-furring is used to furr out interior masonry or poured concrete wall substrates and to support rigid polystyrene, mineral, or fiberglass batt insulation while providing a uniform plane for gypsum panel attachment.
What is roof furring?
A firring is a thin strip of timber (or ‘batten’) that has been cut along its length diagonally so that it tapers, with one end deeper than the other. Firrings are used in the construction of flat roofs to create a fall, ensuring that water runs to the lower side.
How thick is a furring wall?
Furring channel is available in 18, 27, 30 and 43 mil thicknesses (25-18ga.).
How do you Furr a concrete wall?
Use a hammer drill, drill holes using the correct diameter carbide-tipped masonry bit for the concrete screw diameter in use. Drill the masonry hole 1/2 deeper than the fastener embedment. Vacuum holes of masonry dust. Drive the Tapcon screws into the holes of furring strips with an impact driver and nut driver.
Does hat channel help with sound?
Similar to wooden furring strips, hat channels create a raised, smooth, level surface on which to attach sheathing. The airspace created by using hat channels helps increase the sound control effectiveness of insulation in the wall cavities from an STC of 36 to 46.
Are resilient channel worth it?
1. They are very practical and affordable. Resilient channels are very affordable and if you choose wisely, their performance will be more than effective for the price. While they may not be the best choice for sound insulation of your house, they are a great choice for hotel rooms or apartment buildings, for instance.
Does resilient channel help with sound?
Designing Resilient Channel for Metal Studs
The #1 benefit of Resilient Channel is the ability to decouple structure-borne noise at a reasonable cost. This is an effective approach on wood stud or high-mass walls with a high stiffness index.
How far apart should furring channel be?
Secure Furring channel to Top cross rail at a of max of 600mm apart or at appropriate spacings for your lining choice, ensuring 5–10mm clearance is left between end of Furring channel and wall.
