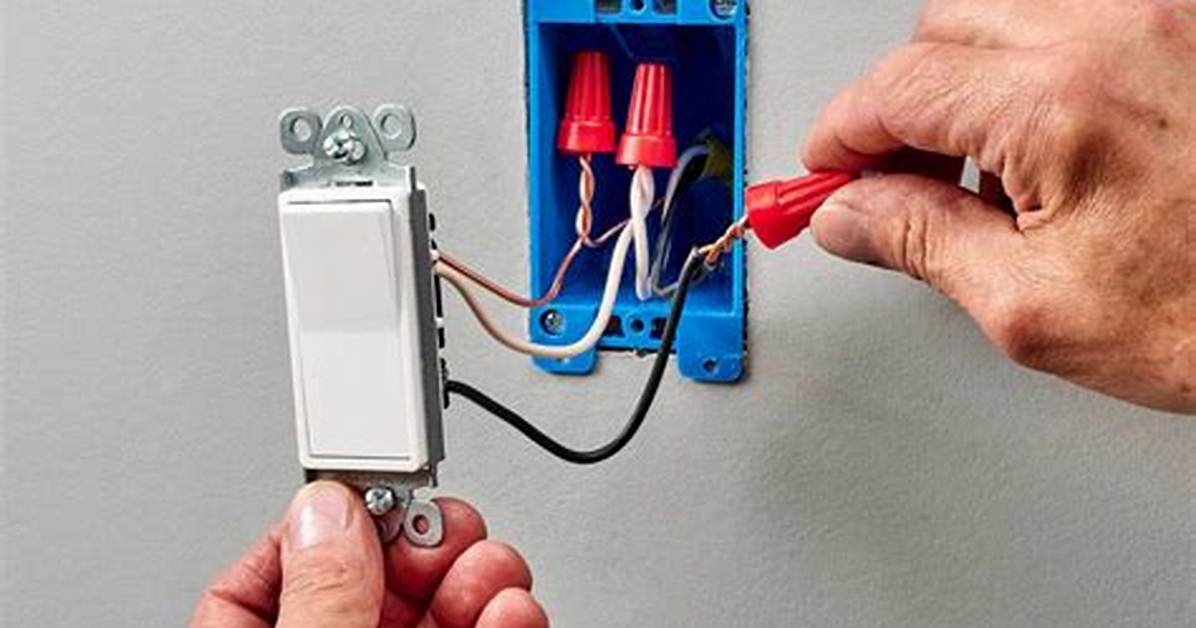

An electrical pigtail is a technique used to lengthen short wires or combine multiple wires together and leave one conductor that can connect to electrical devices such as a switch or outlet, and it’s simple enough for homeowners to perform on their own.
What is the purpose of a pigtail?
What Is a Pigtail Wire Connection? A pigtail wire connection uses a short wire, known as a pigtail, to connect circuit wires to a device. Pigtails are also useful if you need to extend the length of a circuit wire that is too short.
Is pigtail wiring safe?
Pigtailing aluminum wiring is safe as long as proper terminals and connections are made – without damaging the wire – and with materials approved by the Canadian Electrical Code. Aluminum wiring pigtails approved by the Electrical Safety Authority are the most common solution for making aluminum wiring safe.
What is electrical whip?
In electricians’ parlance, a power whip (AKA a base power infeed or base feed module) is a type of cable that converts a fixed-in-place device to a modular asset. Huh? In the office furniture industry, a Power Whip is what connects your cubicle to the building power.
Is it better to pigtail outlets?
Use Pigtails on Outlets
Outlets have pairs of screws on each side that you can use to connect downstream outlets, but it’s best not to use them. There are two reasons for this. First, connecting the wires leading to downstream outlets with wire connectors creates a more secure connection.
How many wires can you pigtail?
The only appropriate way to wire a receptacle in a box with three cables is to use pigtails to connect the receptacles. Never connect more than one wire under a single screw terminal.
How long should electrical pigtails be?
The National Electric Code (NEC) requires that a pigtail wire be at least 6 inches long. For safety, all pigtails must be sealed tightly with a wire nut! Many electricians pigtail wires by connecting hot and neutral wires together that terminate in the same outlet.
Are pigtails required by NEC?
Q. Does the NEC require you to pigtail conductors from a 2-wire circuit if more than one wire terminates on a receptacle? A. No, pigtailing is not required for 2-wire circuits.
Can I pigtail copper to aluminum?
Fortunately, there is an approved solution that does not require rewiring the entire home. Since the hazard of aluminum wiring typically occurs at terminal connections, copper wire can be “pigtailed” to the ends of the aluminum wiring.
Can aluminum and copper wire be used together?
Aluminum and Copper Wiring Together
As long as the two are kept separate, this is not an issue. However, if copper and aluminum wiring are joined together using a simple twist-on splice, that presents an extra hazard because of their differing diameters and differing rates of expansion when heated and cooled.
Is a pigtail a cable?
A cable that has an appropriate connector on one end and loose wires on the other. It is designed to patch into an existing line or to terminate the ends of a long run.
What does a fixture whip do?
Pre-assembled and fully tested, EPCO Fixture Whips provide an excellent mechanical protection and a cost effective, reliable electrical installation. The connectors used are designed to simplify the connection to metallic junction boxes and lighting fixtures.
How much does an electrical whip cost?
10/3 Non-Metallic Flexible Liquidtight A/C Electrical Whip (1-Pack) ($3.06 /ft.)
What is an appliance whip?
AFC offers a line of Lighting, Power and Appliance whips in both metallic and non-metallic options. Whips are pre-cut lengths of metallic or non-metallic conduit that are pre-wired and are supplied with leads cut to the proper length for termination and supplied with the proper connector on each end.
